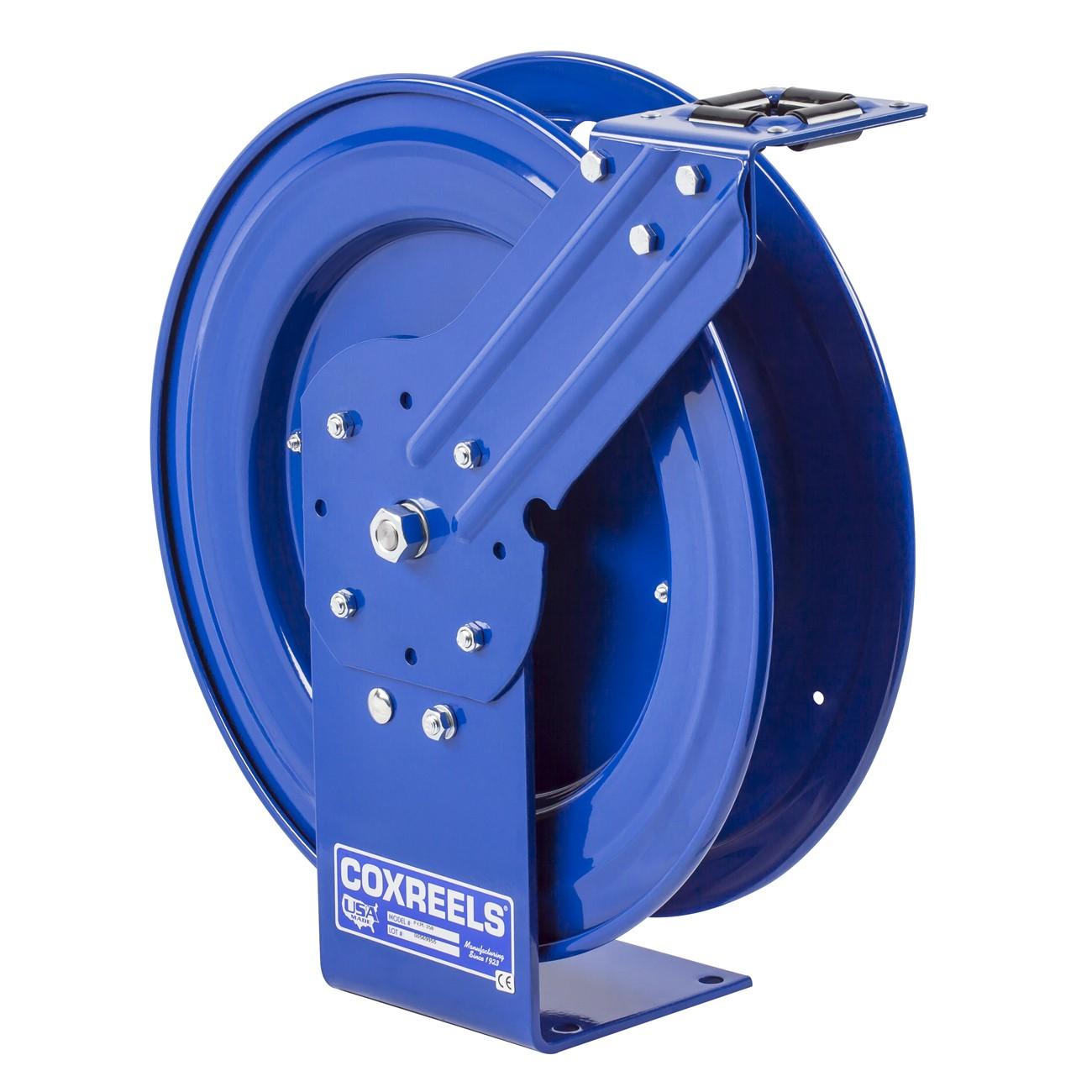

Coxreels P-LPL-430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS P-LPL-430 is a spring-driven hose reel built for demanding trade applications where reliable hose retraction and compact installation space are both required. Part of the COXREELS P Series, this reel accepts hose with a 1/2 inch inner diameter and 3/4 inch outer diameter, handling up to 30 feet of hose. The spring-retract motor is enclosed in a lubricated cartridge housing for clean operation and easy field service. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural strength while protecting hose during retraction. The unit ships as a single piece and is suited for installation by mechanical contractors, fleet maintenance crews, and industrial service technicians.

The P-LPL-430 is designed for use in environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose management solution is needed. Its multi-position guide arm allows mounting flexibility across a wide range of service bays, utility rooms, and mobile service vehicles. The single-pedestal steel base with solid one-piece support post and no-weld construction keeps the footprint small while maintaining stability under repeated daily use. It is commonly installed in HVAC service shops, plumbing supply areas, fleet garages, and light industrial facilities.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service in place
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• 1/4 inch solid one-piece steel base with single-pedestal no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or new-installation spring-driven hose reel compatible with 1/2 inch ID, 3/4 inch OD hose up to 30 feet in length.

Installation Notes

Installation should be performed by a qualified mechanical technician familiar with pressurized hose reel systems. Before servicing or replacing the reel, depressurize and disconnect all supply lines and relieve spring tension per standard safety procedures. Mounting hardware should be appropriate for the substrate type, whether wall stud, ceiling joist, steel vehicle frame, or concrete floor. Verify that the NPT swivel connection is properly sealed with appropriate thread sealant before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Maximum Hose Length: 30 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, 1/4 inch solid one-piece
• Finish: CPC powder coat
• Weight: 40 pounds
• UPC: 674255722682

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-430
