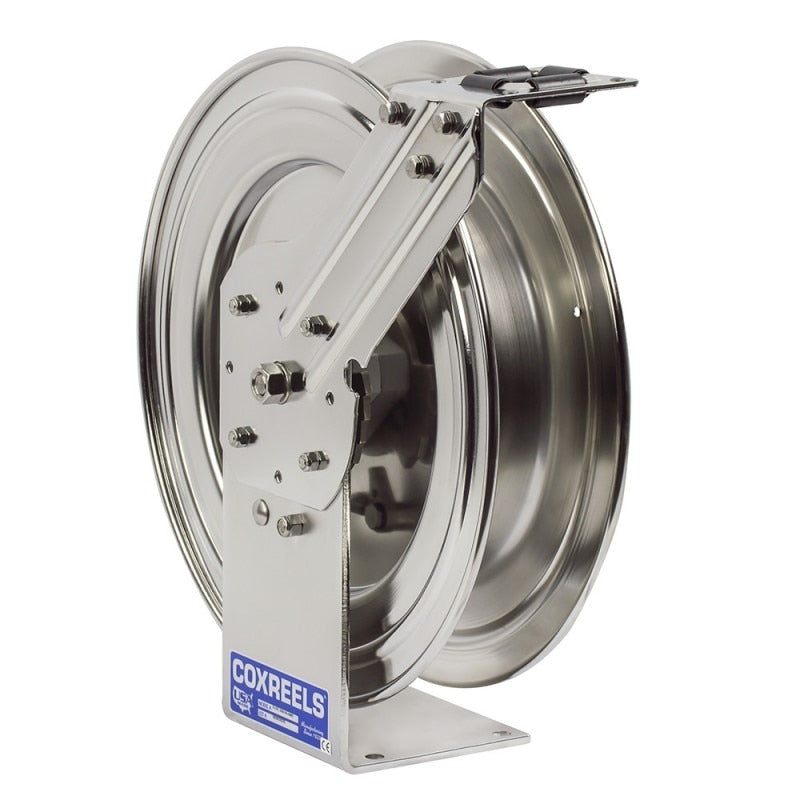

Coxreels P-LPL-425-SS Stainless Steel Hose Reel 25 Ft

Product Description

The COXREELS P-LPL-425-SS is a spring-driven, stainless steel hose reel built for demanding environments where corrosion, contamination, and chemical exposure are ongoing concerns. The reel features a fully electro-polished stainless steel construction throughout, including the fluid path, base, support post, guide arm, and cartridge motor housing. It accepts hose with a 1/2 inch ID and 3/4 inch OD up to 25 feet in length. The spring-return mechanism automatically retracts the hose after use. Licensed plumbing and service technicians install this reel in fixed or mobile applications where non-corrosive fluid handling is required.

This reel is intended for use in food and chemical processing facilities, marinas, mobile service trucks, and any installation where rust, corrosion, or contamination cannot be tolerated. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service environments. The single-pedestal stainless steel base provides a stable footprint without welded joints, reducing potential corrosion initiation points. This is a professional-grade unit suited to continuous-use commercial and industrial service scenarios.

Key Features

• Electro-polished stainless steel construction throughout for non-corrosive, clean-service performance
• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without full reel disassembly
• Machined stainless steel 90-degree full-flow NPT swivel inlet maintains a non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• One-piece stainless steel base and support post with no welds for maximum stability and corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-install unit for spring-driven hose reel applications requiring 1/2 inch ID hose connections in corrosion-sensitive environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system hose reels and applicable local codes. Shut off all fluid supply and depressurize the hose line before mounting or servicing the reel. Ensure the mounting surface is rated for the combined weight of the reel and a fully loaded hose. Verify that inlet NPT thread connections are sealed with appropriate thread sealant rated for the fluid being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 39 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-425-SS
