Coxreels P-LPL-425 Spring Driven Hose Reel 1/2 in 25 Ft

Product Description

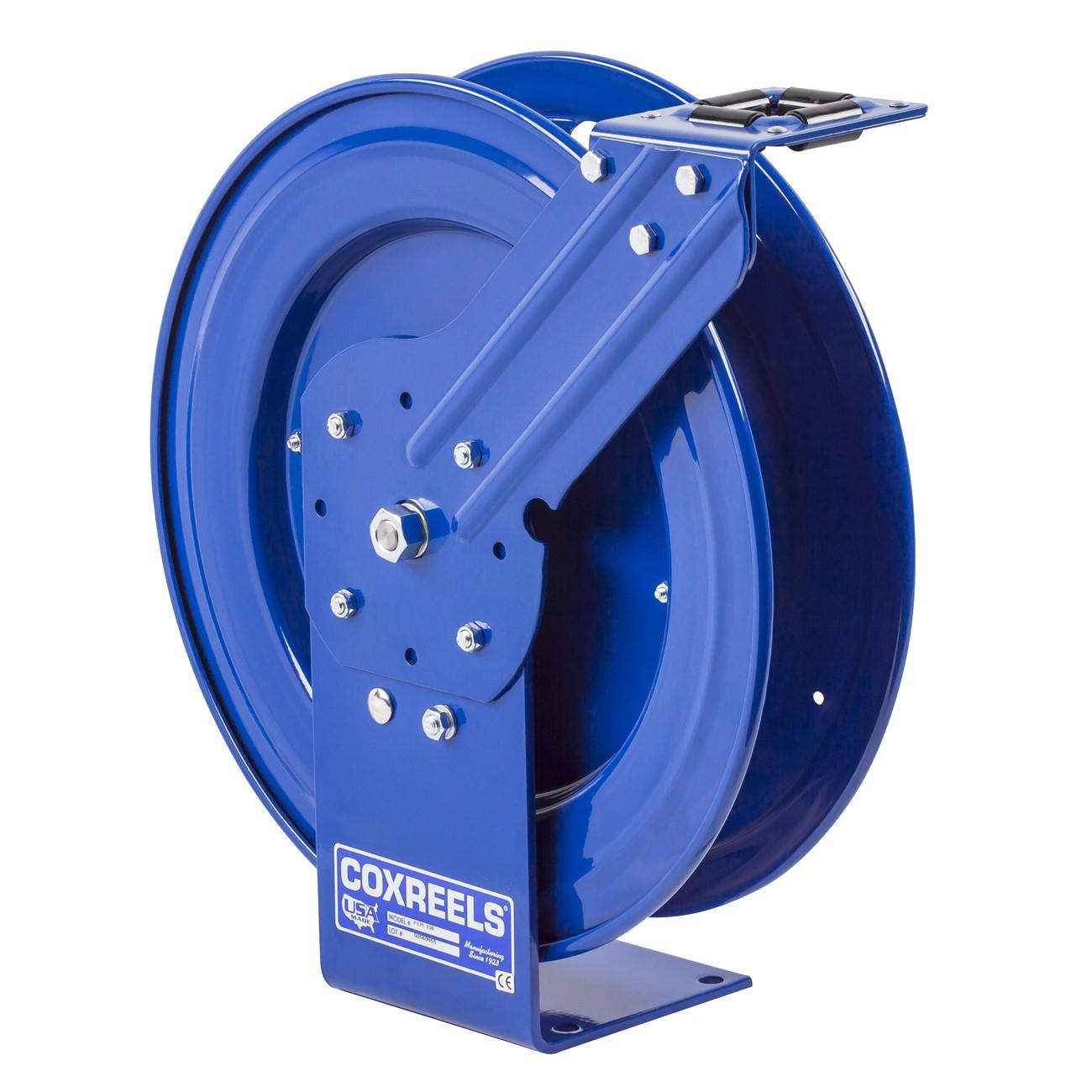

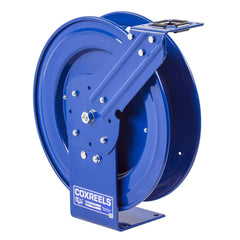

The COXREELS P-LPL-425 is a spring driven hose reel from the P Series line, built for demanding trade and industrial applications. It accepts hose with a 1/2 inch inner diameter and 3/4 inch outer diameter, with a 25 foot hose capacity. The reel retracts automatically via an enclosed cartridge-style spring motor, keeping hose organized and off the floor. Heavy duty CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect both the hose and the operator. A solid one-piece steel base with a single pedestal support post delivers stable, weld-free mounting. Licensed trades and fleet service technicians are the primary installers.

The P-LPL-425 is suited for light petroleum, lube oil, and similar fluid transfer applications in service bays, fleet maintenance facilities, and industrial settings. Its compact footprint makes it practical for tight shop layouts or vehicle-mounted installations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a range of fixed and mobile service environments.

Key Features

• Spring driven cartridge motor retracts hose automatically; motor is enclosed, lubricated, and removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows simple seal maintenance and fast hose installation
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in shop and field environments

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for 1/2 inch ID hose assemblies in light petroleum and lube service applications. Verify hose OD of 3/4 inch and fluid compatibility with lube or petroleum media before installation.

Installation Notes

Installation is typically performed by a qualified mechanic or fluid-system technician familiar with hose reel mounting requirements. Relieve all system pressure and drain the supply line before connecting or disconnecting hose fittings. Mount to a structurally adequate surface capable of supporting the reel, hose, and fluid load. Follow applicable facility and equipment manufacturer guidelines for fluid-handling installations.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Solid one-piece steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 39 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-425
