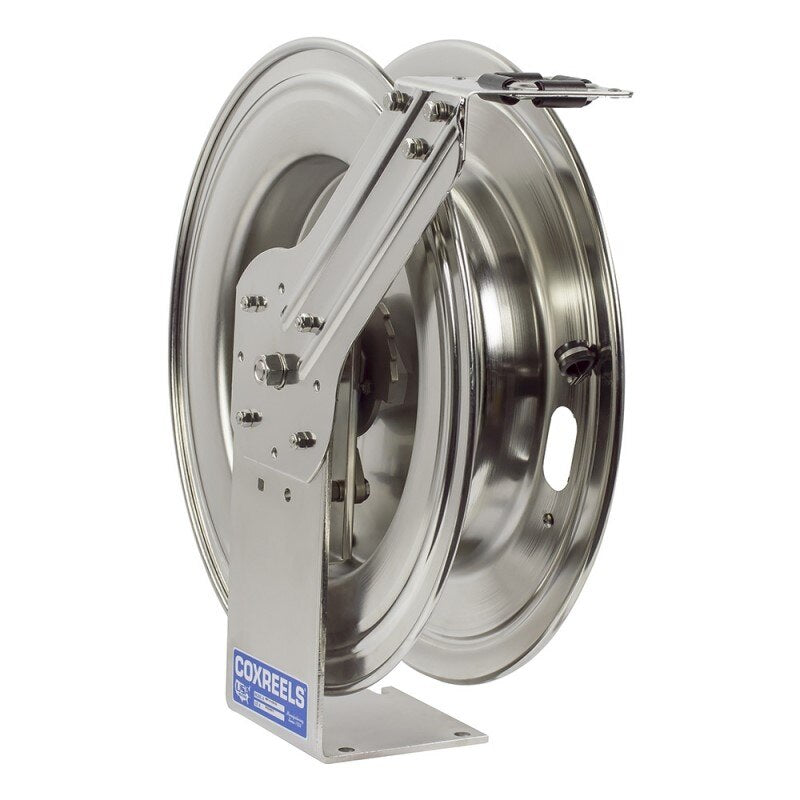

Coxreels P-LPL-350-SS Stainless Steel Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS P-LPL-350-SS is a spring-driven hose reel built from electro-polished stainless steel, designed for fluid-path applications where corrosion, contamination, or chemical exposure is a constant concern. The reel accepts 3/8-inch ID, 5/8-inch OD hose up to 50 feet in length. The stainless steel construction runs through the entire fluid path, including the swivel inlet, guide arm, base, and cartridge-style motor housing. This unit is suited for installation by licensed mechanics, marine technicians, food-processing maintenance crews, and chemical facility service personnel who require a retractable reel that will not rust or contaminate the line.

The P-LPL-350-SS is built for demanding environments where standard carbon steel or painted reels are not appropriate. Typical applications include food and beverage processing facilities, marinas, car washes, chemical processing plants, and any outdoor or high-humidity service bay where corrosion accelerates equipment failure. The spring-retract mechanism keeps hose off the floor and ready for the next use without manual rewind. The reel can be mounted to a wall, floor, ceiling, or vehicle using its multi-position guide arm, making it adaptable across a range of shop and field service setups.

Key Features

• Electro-polished stainless steel construction throughout the fluid path for non-corrosive, contamination-free service
• Stainless steel 90-degree full-flow NPT swivel inlet machined for high flow and leak-free rotation
• Cartridge-style motor is enclosed, lubricated, and fully removable for field maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Single-pedestal stainless steel base and support post, no-weld construction, for maximum stability without added weight
• Multi-position stainless steel guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations

Compatibility

Designed to accept 3/8-inch ID, 5/8-inch OD hose up to 50 feet in length. Intended as a direct-use spring-driven reel for low-pressure fluid delivery in corrosion-sensitive industrial, marine, and food-processing environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and the mounting surface requirements for the chosen orientation. Shut off and depressurize the fluid supply line completely before connecting or disconnecting the swivel inlet. Secure the mounting base to a surface rated for the combined weight of the reel, hose, and fluid load. Confirm that all NPT connections are properly sealed with thread sealant rated for the fluid being conveyed before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 39 pounds
• UPC: 674255724969

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-350-SS
