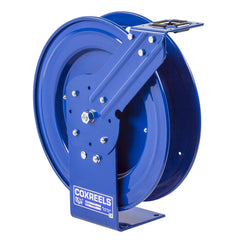

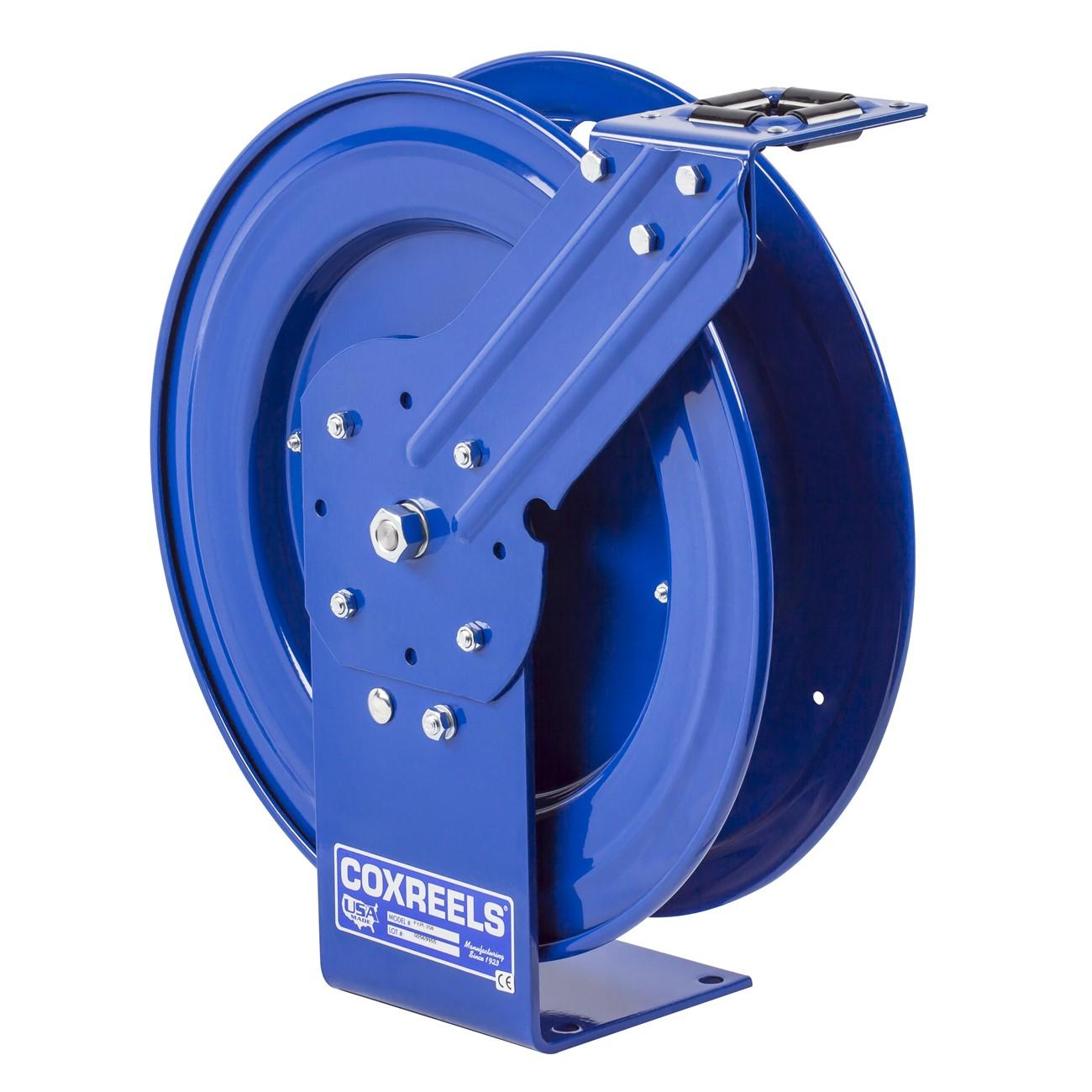

Coxreels P-LPL-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS P-LPL-350 is a spring-driven hose reel from the P Series line, built for trade and industrial applications where reliable hose retrieval and compact mounting are required. The reel accepts 3/8 inch ID hose up to 50 feet in length and uses a cartridge-style spring motor to automatically retract the hose after use. Construction centers on CNC robotically spun and ribbed steel discs with rolled edges, a solid one-piece steel base, and a CPC powder coat finish that resists chipping and rust. Permanently lubricated precision bearings keep the reel turning smoothly over long service cycles. This unit ships as a single reel and weighs 36 pounds.

The P-LPL-350 is suited for professional service environments including HVAC shops, plumbing service vehicles, compressed air stations, and light fluid-dispensing applications. Its multi-position guide arm allows mounting to a wall, floor, ceiling, or service vehicle without requiring additional hardware or reel removal for repositioning. The compact footprint — 17.5 inches long, 8.5 inches wide, and 19.25 inches tall — fits into tight utility areas and service van interiors where space is limited. Professionals in mechanical, plumbing, and general service trades use this reel as a fixed or mobile hose management solution.

Key Features

• Spring-driven cartridge motor retracts hose automatically; motor is removable for maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• Solid one-piece steel base and support post with no welds for maximum pedestal stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in demanding environments

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven hose reel for 3/8 inch ID hose in trade service, HVAC, plumbing, and compressed air applications.

Installation Notes

Installation is typically performed by a qualified service technician or mechanical tradesperson. Before mounting, ensure the support surface — wall, floor, ceiling, or vehicle frame — can bear the loaded weight of the reel and hose. Shut off and depressurize any connected fluid or air supply before connecting or disconnecting hose at the swivel. Refer to local mechanical codes for vehicle-mounted fluid-handling installations.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 50 ft
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 36 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255718593

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-350
