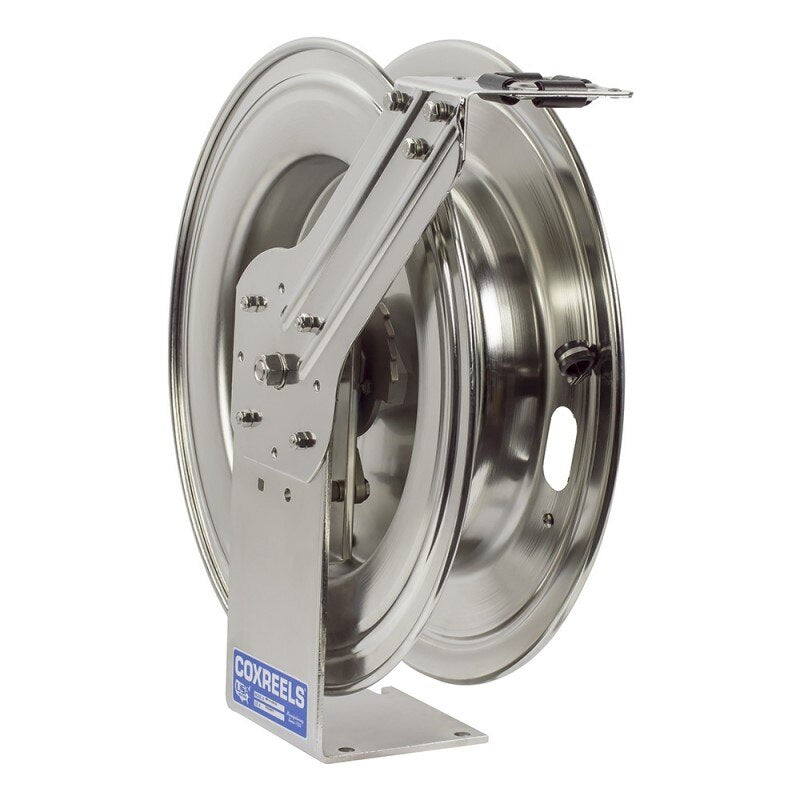

Coxreels P-LPL-335-SS Stainless Steel Hose Reel 3/8 in 35 Ft

Product Description

The COXREELS P-LPL-335-SS is a spring-driven hose reel built from electro-polished stainless steel, designed for fluid dispensing applications where corrosion resistance and contamination control are critical. The reel accommodates 3/8 inch ID hose up to 35 feet in length and features an all-stainless fluid path throughout. A cartridge-style spring motor drives automatic retraction. This unit is suited for licensed plumbers, industrial maintenance technicians, and service professionals who work in environments where standard steel components would corrode or contaminate the process fluid.

The P-LPL-335-SS is built for demanding environments including food and chemical processing facilities, marinas, car washes, and any location where rust, corrosion, or fluid contamination is a concern. The single-pedestal base mounts to wall, floor, ceiling, or vehicle surfaces, making it adaptable to mobile service rigs and fixed installations alike. The stainless steel construction throughout eliminates galvanic corrosion concerns common in mixed-metal assemblies.

Key Features

• Electro-polished stainless steel construction with stainless steel fluid path for non-corrosive, contamination-free operation
• Cartridge-style spring motor is enclosed, lubricated, and removable for field maintenance without full reel disassembly
• Full-flow 90-degree NPT swivel inlet machined from stainless steel for smooth hose routing and leak-resistant connections
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Solid one-piece stainless steel base and support post, no-weld construction, for stability without excessive weight
• Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for 3/8 inch ID hose applications in corrosive or contamination-sensitive environments requiring stainless steel construction.

Installation Notes

Installation should be performed by a qualified plumber or industrial maintenance technician familiar with hose reel systems and applicable piping codes. Shut off fluid supply and relieve line pressure completely before mounting or connecting the reel. Secure the base to a surface rated for the combined weight of the unit and hose plus fluid load. Verify all NPT threaded connections are properly sealed with an approved thread sealant rated for the intended fluid service.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 1/2 inch
• Hose Capacity: 35 feet
• Drive Type: Spring-driven, cartridge motor
• Material: Electro-polished stainless steel
• Inlet Connection: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 34 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-335-SS
