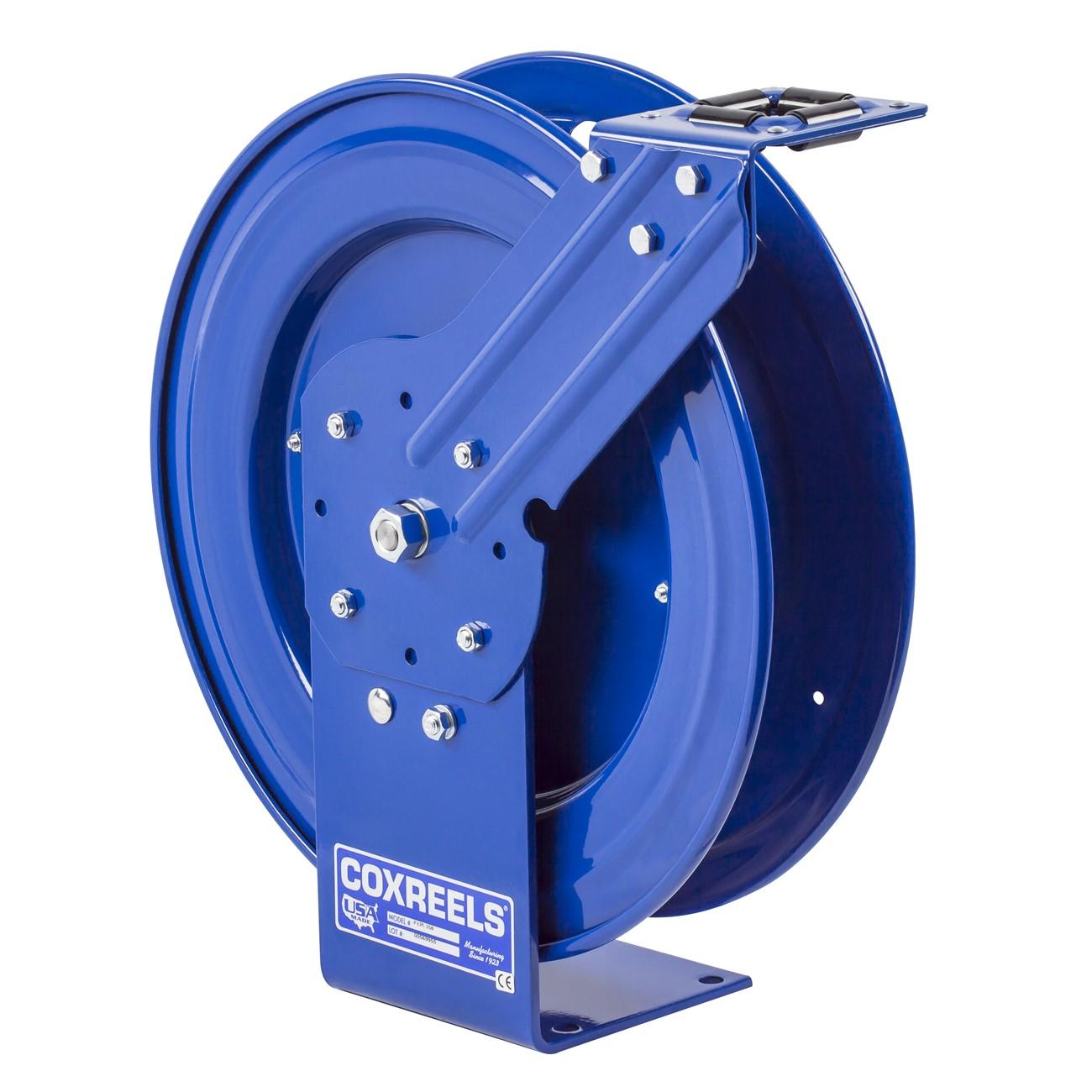

Coxreels P-LPL-335 Spring Driven Hose Reel 3/8 in 35 Ft

Product Description

The COXREELS P-LPL-335 is a spring-driven hose reel built for demanding trade and industrial applications. Part of the COXREELS P Series, it accepts hose with a 3/8 inch inner diameter and 5/8 inch outer diameter, with a 35-foot hose capacity. The spring-driven retraction mechanism keeps hose under controlled tension, reducing trip hazards and extending hose service life. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect both the hose and the operator. At 34 pounds, the unit is substantial but manageable for permanent wall, floor, ceiling, or vehicle mounting. This reel is installed by mechanics, fleet technicians, industrial maintenance crews, and plumbing or HVAC service professionals who need reliable hose management at a fixed workstation.

The P-LPL-335 is suited for stationary service bays, shop floors, utility vehicles, and maintenance facilities where a consistent hose return point is required. Its compact footprint makes it a practical fit in tight service areas. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility in positioning without requiring additional hardware. The unit ships as a single piece and is sold individually.

Key Features

• Spring-driven retraction automatically rewinds hose for hands-free operation and reduced clutter
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe in-place maintenance
• CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Single-pedestal steel base with one-piece support post and no welds for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for 3/8 inch ID hose applications in industrial, fleet, and trade service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fixed hose reel mounting requirements. Depressurize and disconnect any fluid supply line before mounting or servicing the reel. Verify that the mounting surface is rated to support the combined weight of the reel and a fully loaded hose. Follow all applicable facility and vehicle safety codes when mounting to overhead, wall, or mobile vehicle surfaces.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 34 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Sold As: Each
• UPC: 674255718562

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-335
