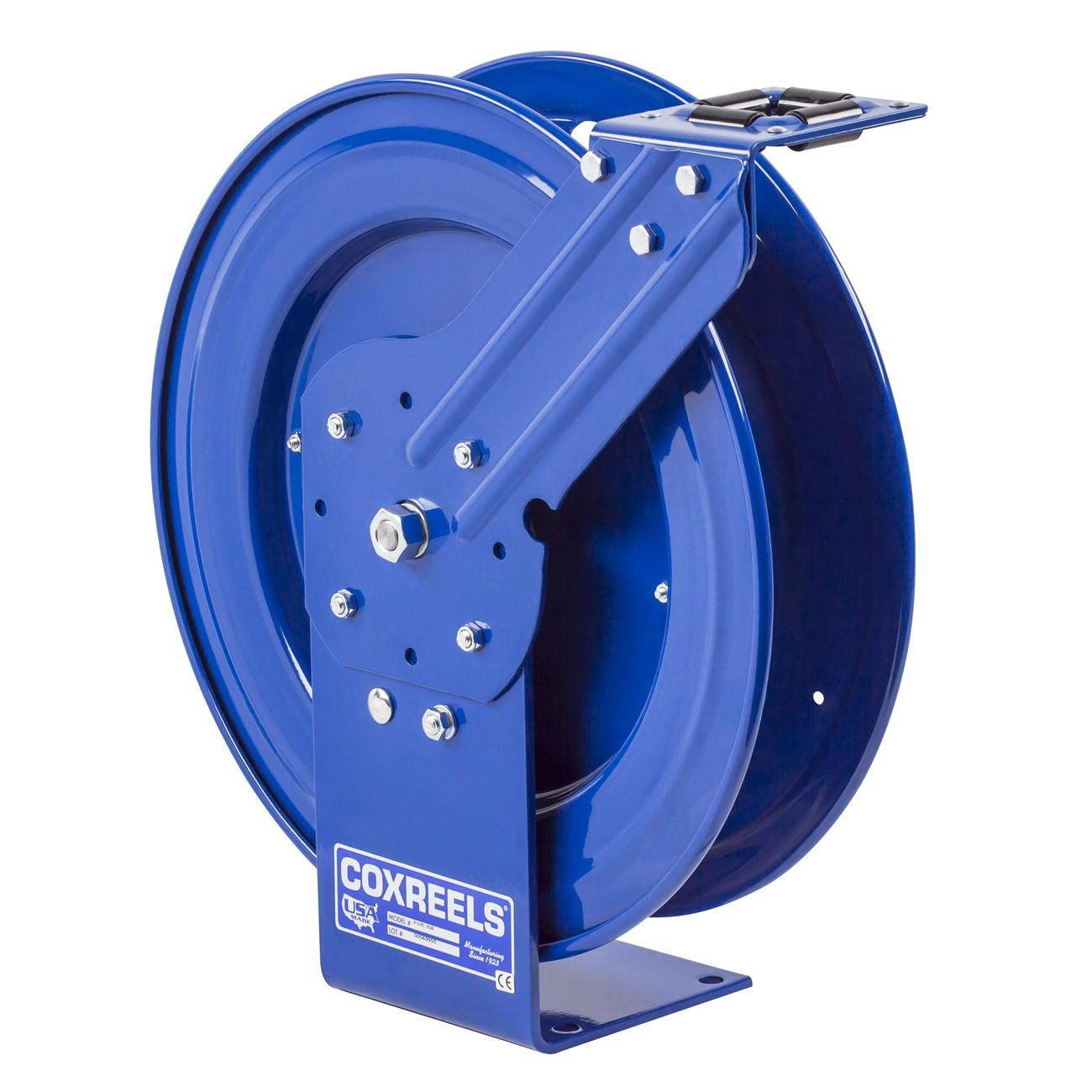

Coxreels P-LPL-110 Spring Drive Hose Reel 1/4 Inch Id

Product Description

The COXREELS P-LPL-110 is a spring-driven hose reel from the COXREELS P Series, built for demanding trade and industrial service environments. The reel accepts a 1/4 inch ID hose up to 10 feet in length and uses an enclosed, lubricated cartridge-style spring motor for automatic retraction. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose during repeated use. A CPC powder coat finish resists chipping and rust for long service life. Licensed plumbers, HVAC technicians, and general maintenance professionals rely on this reel for compressed air, low-pressure fluid, and similar service lines.

The P-LPL-110 is suited for residential and light commercial service applications where a compact, space-saving reel is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it practical for service vans, shop installations, and fixed wall stations. The solid one-piece steel base and single pedestal support post require no welding and provide a stable mounting platform across all orientations.

Key Features

• Spring-driven cartridge motor automatically retracts hose and is removable for maintenance without special tools
• 1/4 inch ID hose capacity, 10 ft hose length
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chipping, rust, and corrosion for long service life
• Solid one-piece steel base and support post, no-weld construction, with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for use with 1/4 inch ID service hose in compressed air, low-pressure fluid, and similar trade service applications.

Installation Notes

Installation is performed by a qualified technician using standard hand tools. Shut off and depressurize the supply line before connecting or disconnecting the reel. Ensure the mounting surface can support the weight of the reel plus the loaded hose. Follow all applicable local codes and manufacturer torque recommendations for NPT fittings during final connection.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length Capacity: 10 ft
• Drive Type: Spring driven
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 22 pounds
• UPC: 674255718418

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-110
