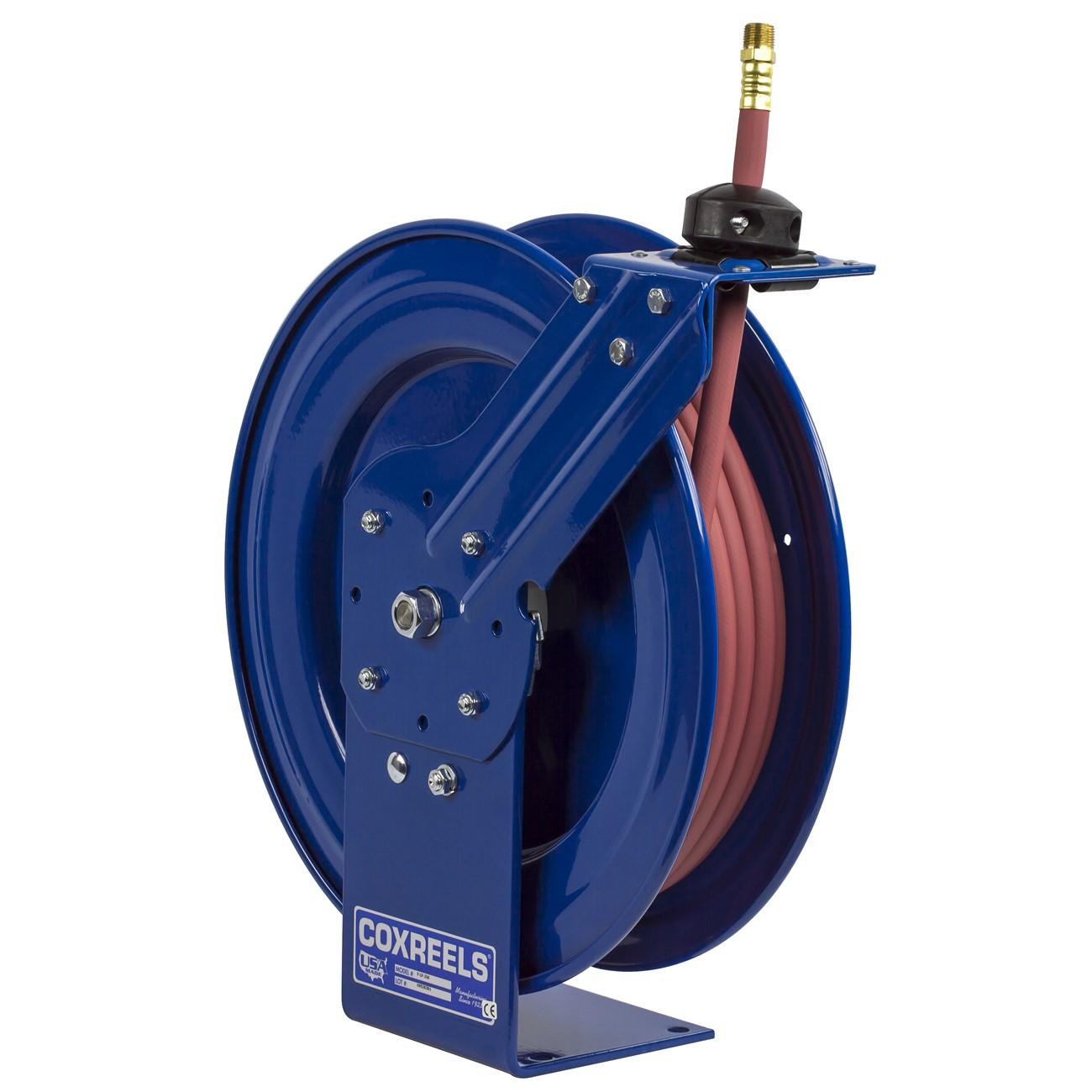

Coxreels P-LP-450 Spring Driven Hose Reel 1/2 in Id 50 Ft

Product Description

The COXREELS P-LP-450 is a spring-driven hose reel from the P Series line, built for trade and industrial applications where compact size and long service life are required. The reel accepts hose with a 1/2 inch ID and 3/4 inch OD and accommodates up to 50 feet of hose. A cartridge-style spring motor drives automatic retraction, keeping the hose neatly stored and reducing trip hazards and hose wear on the job. The unit weighs 50 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. Licensed trades and facility maintenance crews rely on this reel for air, water, and low-pressure fluid service in shops, service bays, and fleet environments.

The P-LP-450 suits residential and commercial service applications where a wall, floor, ceiling, or vehicle-mounted hose management solution is needed. The multi-position guide arm adapts the reel to multiple mounting orientations without modification. Its single-pedestal steel base and compact footprint make it practical in tight bays or on service vehicles. The solid brass 90-degree swivel allows hose installation and seal service without removing the reel from its mount, a practical advantage during routine maintenance.

Key Features

• Spring-driven cartridge motor with enclosed lubrication for automatic hose retraction and easy removal during maintenance
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal replacement without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• 1/4 inch solid one-piece steel base with single pedestal support post and no-weld construction for maximum stability
• Multi-position guide arm configures for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length. Suitable for air, water, and low-pressure fluid service lines in shop, commercial, and mobile service environments.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities technician. Power down or shut off the supply line before connecting or servicing the swivel and hose fittings. Verify the mounting surface can support the loaded weight of the reel and hose before fastening the base. Follow all applicable facility safety codes for fluid and compressed-air distribution systems.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: Steel, 1/4 inch one-piece construction
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 50 pounds
• UPC: 674255731486

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-450
