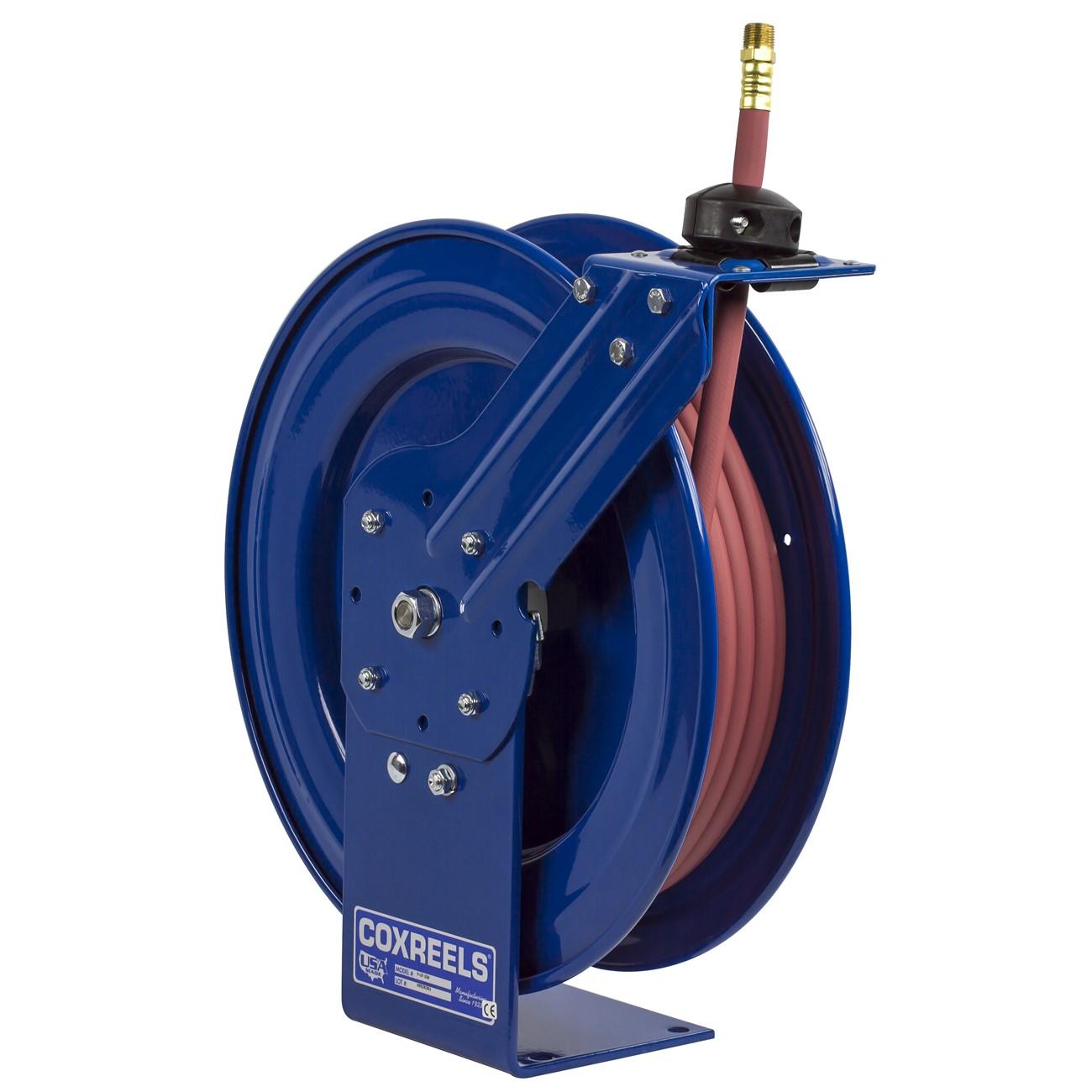

Coxreels P-LP-430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS P-LP-430 is a spring-driven hose reel from the P Series line, built for demanding trade and industrial environments where reliable hose retraction and compact footprint matter. The reel accepts hose with a 1/2 inch ID and 3/4 inch OD, with a 30 ft hose capacity. A machined brass 90-degree full-flow NPT swivel allows fast hose installation without removing the reel from its mount. The single-pedestal steel base and CNC robotically spun ribbed discs with rolled edges give this reel the structural durability expected in high-cycle service applications. Licensed HVAC technicians, plumbers, and general contractors install this reel in both fixed and mobile service setups.

The P-LP-430 is suited for residential and light commercial service environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose reel is needed. The spring-driven retraction mechanism keeps hose orderly and reduces trip hazards in busy service bays, job trailers, and utility rooms. The multi-position guide arm makes it adaptable to a wide range of mounting orientations without additional hardware modifications. Trades using air lines, water supply hoses, or other compatible fluid lines in short to medium run lengths will find this reel a practical fit.

Key Features

• Spring-driven retraction automatically rewinds hose for fast, hands-free operation
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal maintenance without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe field maintenance
• CNC robotically spun ribbed discs with rolled edges provide hose protection and operator safety
• Single-pedestal solid one-piece steel base with no-weld construction for maximum stability
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle
• CPC powder coat finish resists chipping and rust for long service life

Compatibility

Designed as an OEM-style replacement or new-installation spring-driven hose reel for trade service applications requiring 1/2 inch ID hose up to 30 ft in length.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified mechanic depending on the fluid medium being conveyed. Power down or depressurize any connected supply line before mounting or servicing the reel. Secure the steel base to a structurally sound surface capable of supporting the reel and hose load. Verify swivel NPT thread compatibility with the supply fitting before final connection.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 30 ft
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Weight: 45 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-430
