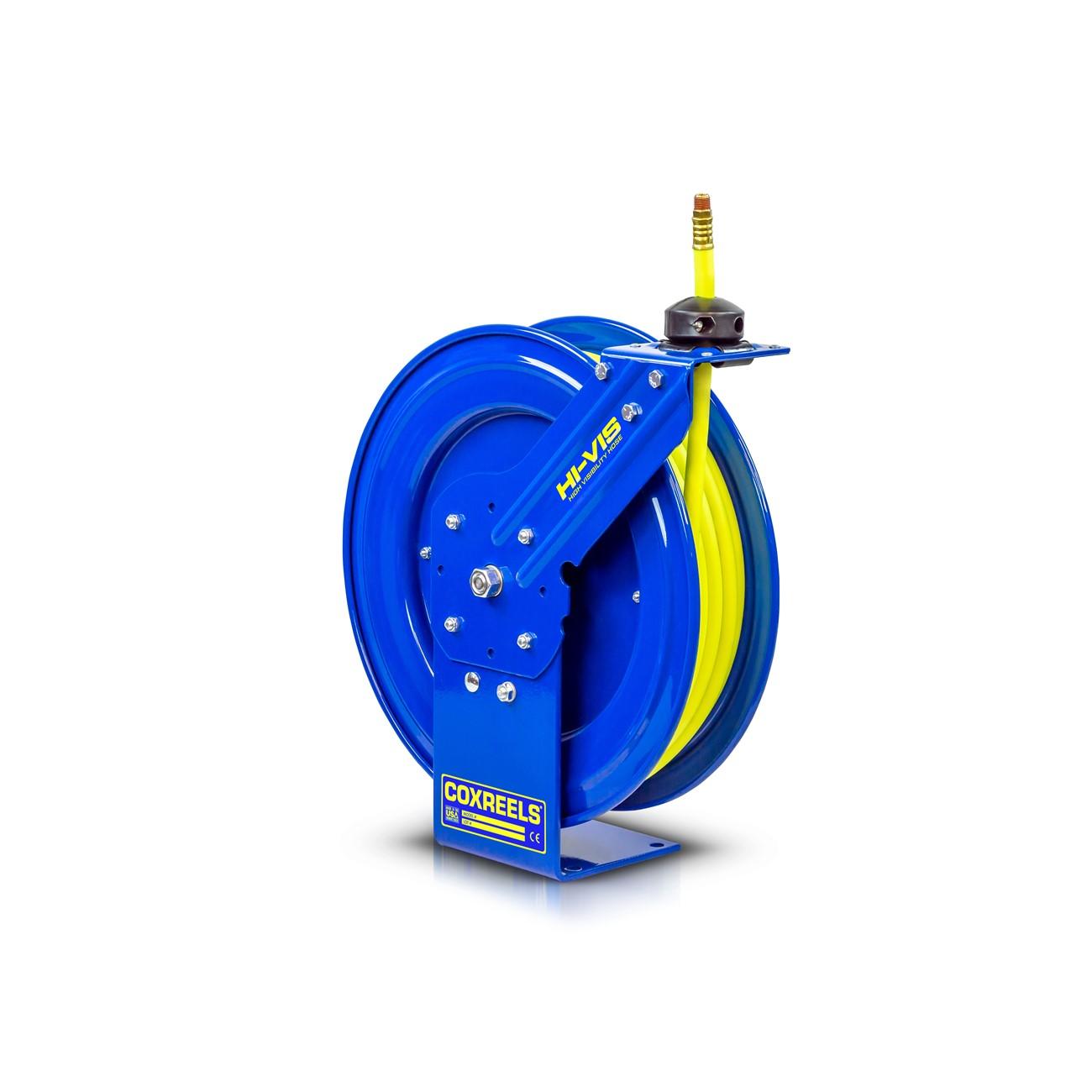

Coxreels P-LP-425-HV Safety Hose Reel 1/2 in 25 Ft

Product Description

The COXREELS P-LP-425-HV is a high visibility safety hose reel designed for industrial and trade environments where hose management, operator awareness, and controlled retraction are daily requirements. The reel ships with a hybrid bright yellow hose featuring a white glossy stripe, improving visibility on busy job sites. The hose measures 1/2 inch ID and 3/4 inch OD at 25 feet in length. The unit weighs 44 pounds and is built on a solid one-piece steel base with a single pedestal design. Licensed contractors, facility maintenance techs, and shop mechanics are the primary installers of this type of reel.

The P-LP-425-HV is suited for air and fluid hose management in commercial shops, fleet maintenance facilities, manufacturing floors, and industrial service bays. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of fixed and mobile install scenarios. The high visibility hybrid hose lays flat to reduce trip hazard potential, a practical benefit in high-traffic work areas.

Key Features

• High visibility hybrid hose — bright yellow with a white glossy stripe for job site awareness and safety
• Hybrid PVC-rubber blend construction offers improved flexibility, kink resistance, and reduced coil memory compared to standard PVC
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated enclosed cartridge-style motor is removable for maintenance without full disassembly
• Heavy duty CNC robotically spun ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base, no-weld pedestal construction with chip-resistant and rust-inhibiting CPC powder coat finish

Compatibility

Designed as an OEM-style hose reel for industrial and commercial service environments requiring a 1/2 inch ID hose reel with high visibility hose and controlled retraction capability.

Installation Notes

Installation is typically performed by a licensed mechanic, pipefitter, or industrial maintenance technician. Shut off and depressurize the supply line completely before connecting or disconnecting the reel. The guide arm should be secured to a structurally adequate wall, floor mount, ceiling anchor, or vehicle surface rated for the reel weight. Follow applicable OSHA and facility safety guidelines for compressed air and fluid hose systems during installation.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 3/4 inch
• Hose Length: 25 feet
• Unit Weight: 44 pounds
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Hose Material: Hybrid PVC and rubber blend
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255752528

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-425-HV
