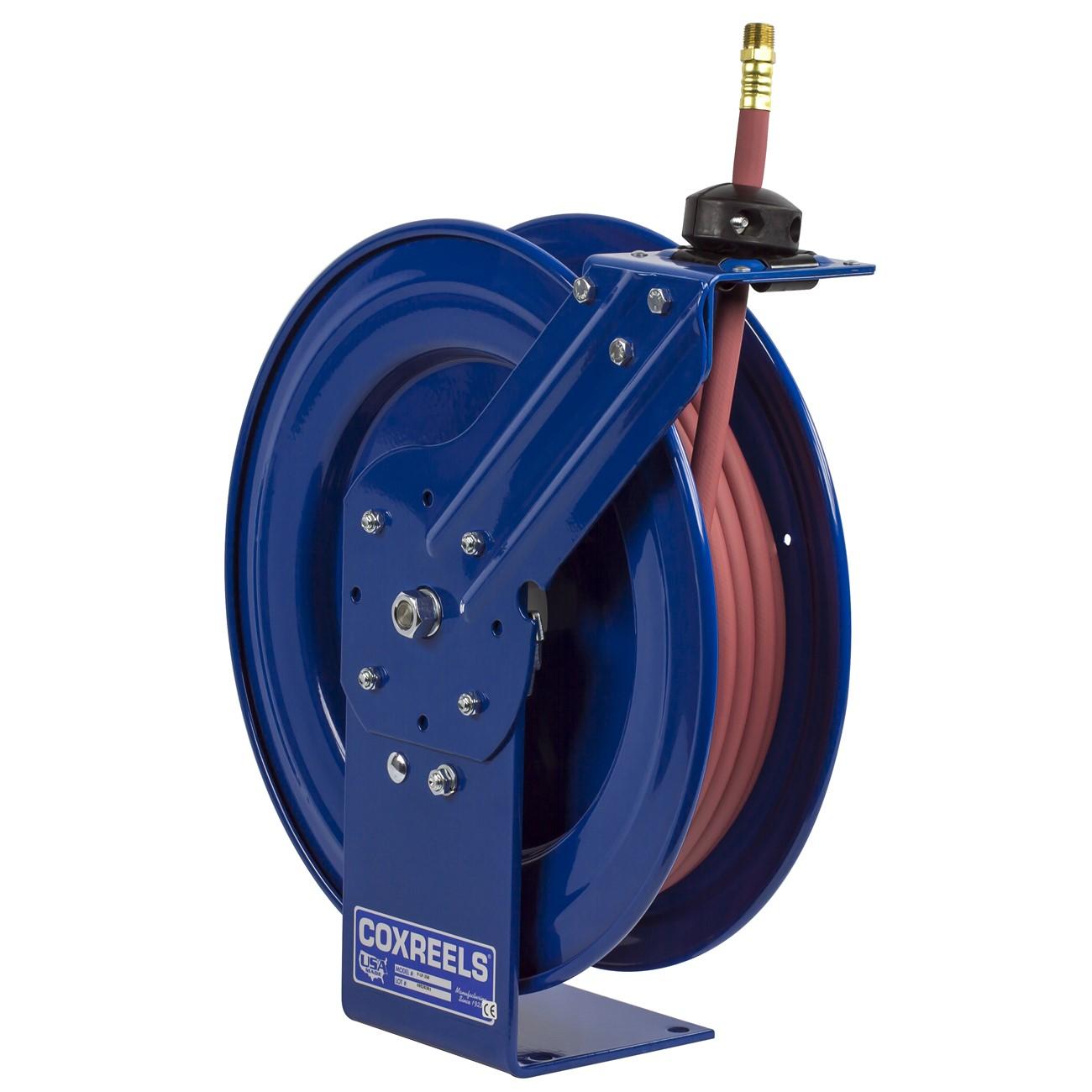

Coxreels P-LP-415 Spring Driven Hose Reel 1/2 in Id 15 Ft

Product Description

The COXREELS P-LP-415 is a spring-driven hose reel from the P Series line, built for demanding trade environments where reliability and compact footprint both matter. It accepts hose with a 1/2 inch ID and 3/4 inch OD, with a 15 ft hose capacity. The reel features a machined solid-brass 90-degree full-flow NPT swivel, a lubricated enclosed cartridge-style motor, and heavy-duty CNC robotically spun and ribbed discs with rolled edges. At 41 pounds, the unit is solid enough for fixed installations yet manageable for vehicle or shop mounting. Licensed tradespeople in HVAC, plumbing, and general maintenance work are the primary installers of this reel type.

The P-LP-415 suits residential and light commercial applications where a dependable, self-retracting hose reel is needed in a compact space. Typical install scenarios include shop walls, ceilings, floors, and service vehicles. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting positions, making it versatile across job-site configurations. Its single-pedestal steel base provides a stable, no-weld platform that holds up in high-cycle environments such as automotive bays, plumbing shops, and HVAC service areas.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge-style motor for easy removal and maintenance
• Machined solid-brass 90-degree full-flow NPT swivel — seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece 1/4 inch steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish — chip resistant and rust inhibiting — plus adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for use with 1/2 inch ID, 3/4 inch OD hose up to 15 ft in length, suitable for typical shop, fleet, and light commercial service installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting hardware and the specific mounting surface requirements for wall, ceiling, floor, or vehicle applications. Relieve all system pressure and depressurize the hose before mounting or servicing the reel. Verify that the supply connection, NPT fittings, and hose ratings are appropriate for the fluid type and working pressure of the application before placing the reel in service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 15 ft
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 41 pounds
• UPC: 674255718371

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-415
