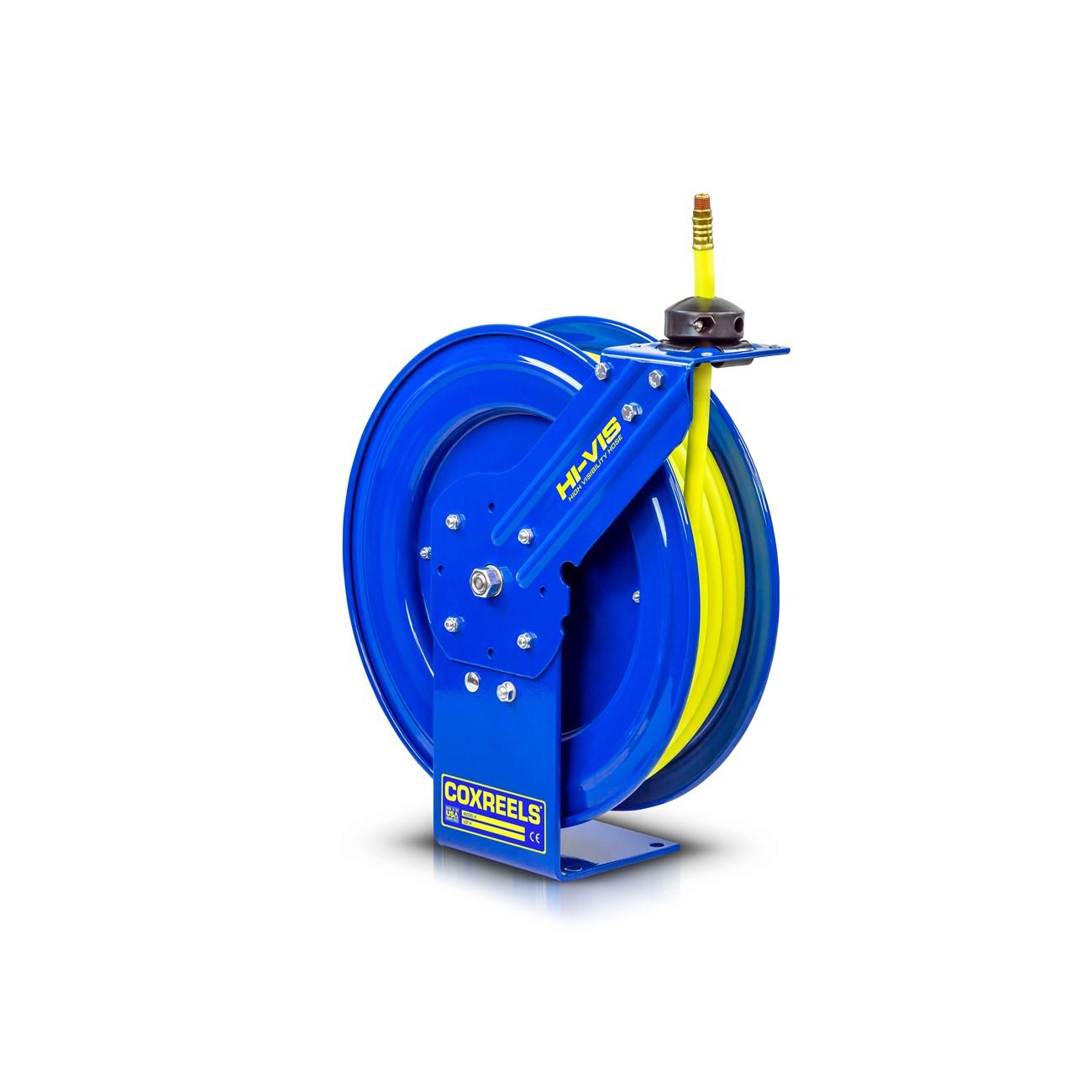

Coxreels P-LP-350-HV High Visibility Safety Hose Reel

Product Description

The COXREELS P-LP-350-HV is a retractable high-visibility safety hose reel designed for demanding trade and industrial environments. It accepts a 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length and features a bright yellow hybrid PVC-rubber hose with a white glossy stripe for maximum on-site visibility. The reel is built around CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. A cartridge-style motor with EZ-Coil controlled retraction keeps hose management fast and consistent. Licensed trades in mechanical, plumbing, and industrial service will find this unit suitable for high-traffic shop and field applications where hose visibility and controlled retraction reduce trip hazards and downtime.

This reel is suited for use in commercial and industrial settings including automotive service bays, manufacturing facilities, fleet maintenance shops, and general trade service vehicles. The single-pedestal steel base with support post mounts to wall, floor, ceiling, or vehicle surfaces, making it adaptable across a wide range of fixed and mobile installations. The adjustable guide arm accommodates these multiple mounting positions without requiring additional hardware.

Key Features

• Hybrid bright yellow hose with white glossy stripe for high-visibility safety identification
• CNC robotically spun and ribbed discs with rolled edges for structural durability and hose protection
• Lubricated, enclosed cartridge-style motor is removable for maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Solid one-piece steel base with no-weld single pedestal design for maximum mounting stability
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style retractable hose reel replacement or new installation for 3/8 inch ID hose applications in commercial and industrial service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line before connecting or disconnecting the reel. Secure the mounting base to a structural surface rated for the combined weight of the reel and hose load. Verify all NPT swivel connections for leaks after installation before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length: 50 feet
• Hose Type: Hybrid PVC and rubber blend, high-visibility yellow with white stripe
• Swivel: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Solid one-piece steel, single pedestal, no-weld
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Unit Length: 17.5 inches
• Unit Width: 8.5 inches
• Unit Height: 19.25 inches
• Weight: 43 pounds
• UPC: 674255752511

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-350-HV
