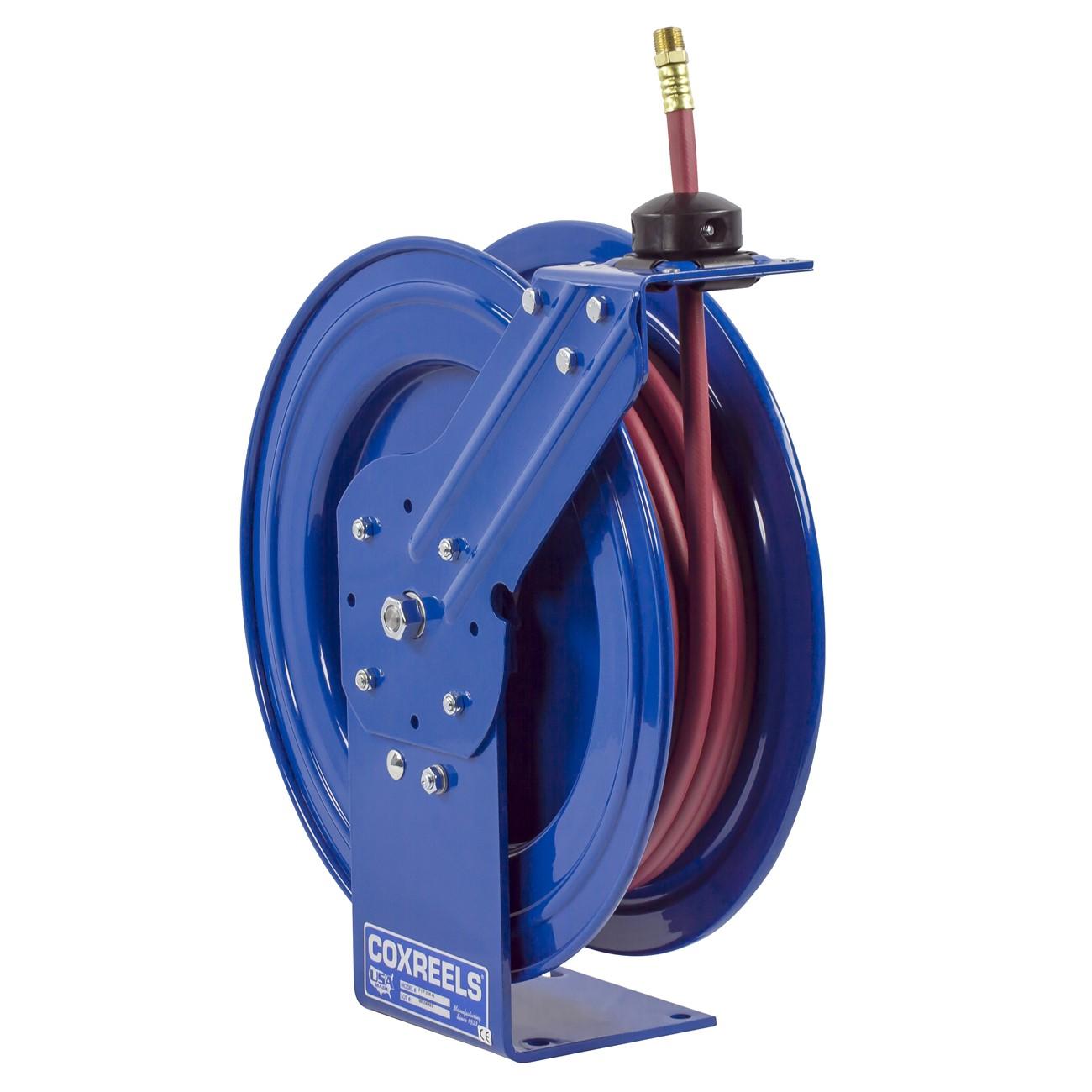

Coxreels P-LP-350-AL Aluminum Spring Driven Hose Reel

Product Description

The COXREELS P-LP-350-AL is a spring-driven, professional-grade aluminum hose reel built for demanding trade environments. Part of the Alumi-Pro series, it delivers the structural strength associated with steel construction while significantly reducing overall weight. The reel accepts 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length. A precision coil spring motor drives automatic retraction, and the entire unit weighs 27 pounds. HVAC technicians, plumbers, and industrial service pros install this reel where corrosion resistance and light weight are priorities but where polypropylene or plastic reels lack the required durability.

The P-LP-350-AL suits residential and light commercial service applications including HVAC maintenance, compressed air lines, fluid transfer, and general shop or vehicle-mounted hose management. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across shop, fleet, and field service installations. The non-corrosive aluminum construction is well suited to humid, coastal, or chemically exposed environments where steel reels are prone to corrosion.

Key Features

• Aluminum construction delivers non-corrosive, lightweight performance without sacrificing structural strength
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory-tuned and matched to application
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide hose protection and operator safety
• Solid one-piece aluminum base and support post with no-weld construction for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit option for spring-driven aluminum hose reel applications requiring 3/8 inch ID hose up to 50 feet in length. Modeled after the Coxreels P Series hose reel line.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified mechanical tradesperson. Shut off the air or fluid supply and depressurize the line before connecting or disconnecting hose fittings at the swivel. Verify that the mounting surface and fastener hardware are rated for the combined weight of the reel and a fully loaded hose. Follow applicable local mechanical codes and the manufacturer installation instructions when selecting mount orientation and guide arm position.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Material: Aluminum
• Swivel Material: Solid brass
• Weight: 27 pounds
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Finish: CPC powder coat
• UPC: 674255729056

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-350-AL
