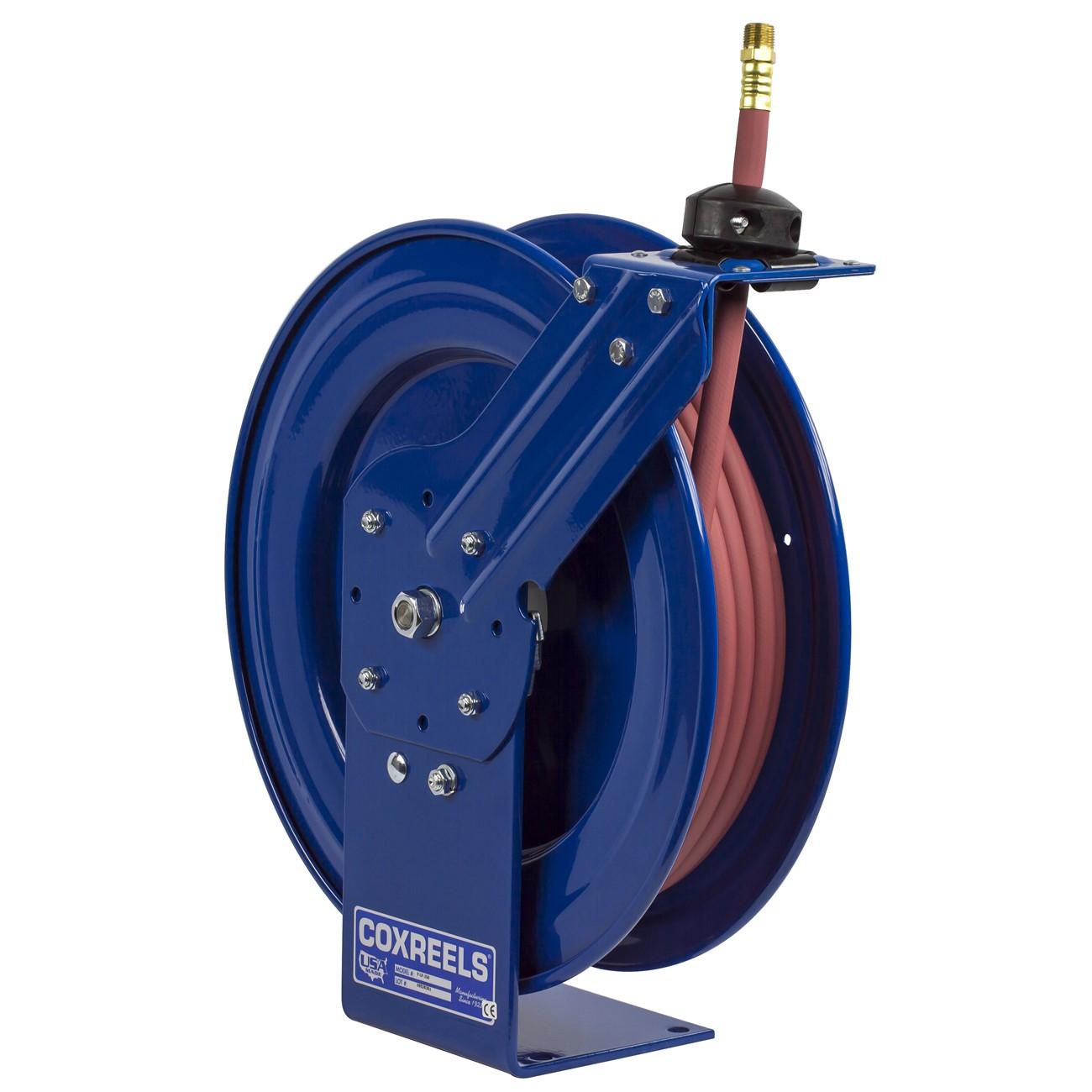

Coxreels P-LP-340 Spring Driven Hose Reel 3/8 in 40 Ft

Product Description

The COXREELS P-LP-340 is a spring-driven hose reel from the P Series line, built for continuous-duty use in shop, fleet, and industrial service environments. The reel accepts 3/8-inch ID hose up to 40 feet in length and returns it automatically via an enclosed cartridge-style spring motor. The single-pedestal steel base and CNC robotically spun ribbed discs give the unit a heavy-duty footprint in a compact form. A machined solid-brass 90-degree full-flow NPT swivel allows hose replacement without removing the reel from its mount. Licensed tradespeople and shop technicians handling air, water, or compatible fluid lines are the typical installers.

The P-LP-340 is suited for residential service bays, commercial shops, fleet maintenance facilities, and vehicle-mounted service units. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it practical across a wide range of layout constraints. The adjustable solid-rubber hose stop protects both the hose end and the reel drum during retraction. A chip-resistant, rust-inhibiting CPC powder coat finish supports long service life in high-cycle environments.

Key Features

• Spring-driven cartridge motor retracts hose automatically; motor is removable for maintenance without full disassembly
• Machined solid-brass 90-degree full-flow NPT swivel — seal maintenance and hose swaps require no reel removal from mount
• CNC robotically spun and ribbed disc drums with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, single-pedestal design, no-weld construction
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust; permanently lubricated precision bearings; adjustable solid-rubber hose stop included

Compatibility

Designed as a direct-fit P Series spring-driven reel for 3/8-inch ID hose up to 40 feet in length; consult COXREELS application guidelines to confirm fluid compatibility and working-pressure ratings for the specific hose being used.

Installation Notes

Installation is typically performed by a qualified mechanic, pipefitter, or maintenance technician. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. Mount to a surface rated for the combined weight of the reel and a fully loaded hose. Verify that all threaded NPT connections are sealed and torqued per standard plumbing practice before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 40 feet
• Spring Drive: Enclosed cartridge-style motor
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Construction: Single-pedestal, one-piece steel, no-weld
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 39 pounds
• UPC: 674255718319

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-340
