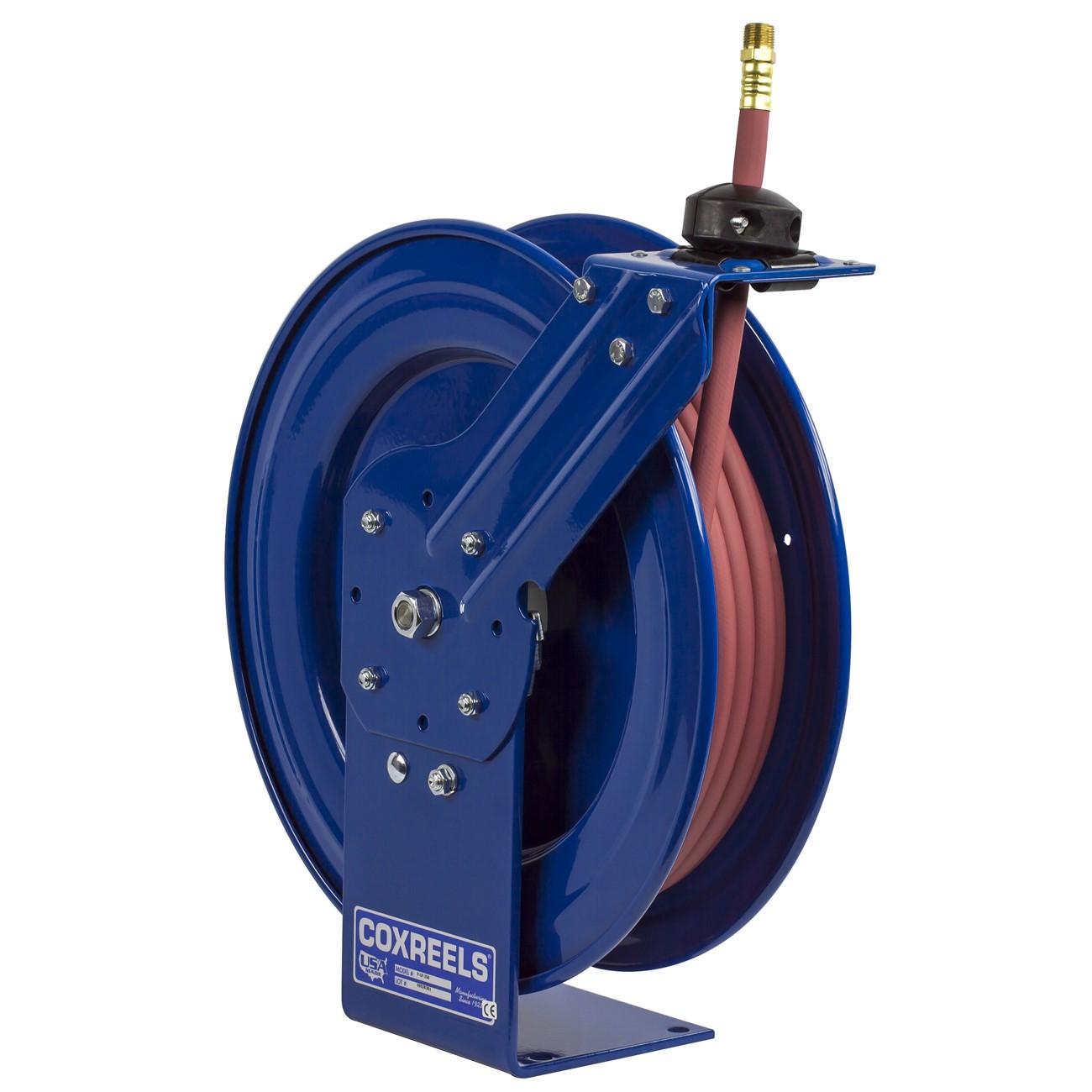

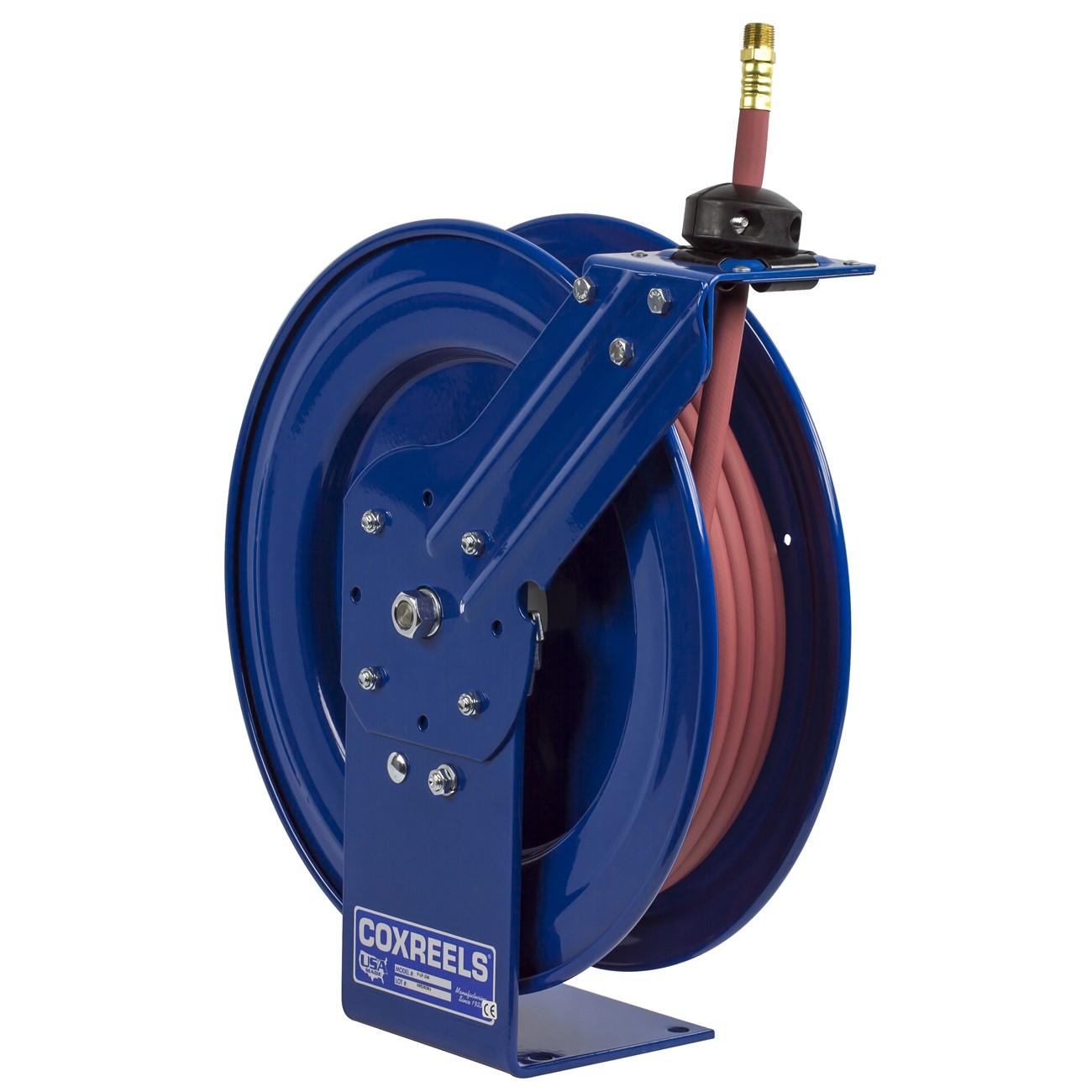

Coxreels P-LP-330 Spring Driven Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS P-LP-330 is a spring-driven hose reel from the P Series line, built for trade professionals who need reliable hose management in demanding service environments. The reel accommodates 3/8-inch ID hose up to 30 feet in length and returns the hose automatically via an enclosed cartridge-style spring motor. Construction centers on heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, a solid one-piece steel base, and a CPC powder coat finish rated for chip resistance and rust inhibition. Permanently lubricated precision bearings and a machined brass 90-degree full-flow NPT swivel round out the core build.

The P-LP-330 is suited for residential and light commercial service applications where compact footprint and quick hose deployment matter. Typical installations include service vehicles, shop walls, ceilings, and floor-mounted stations. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making the reel a practical choice for HVAC technicians, plumbers, and general service contractors who need consistent hose retraction across varied job sites.

Key Features

• Spring-driven cartridge motor returns hose automatically; motor is removable for maintenance without reel disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose from abrasion
• Solid one-piece steel base with single pedestal support post — no welds — for stable, long-term mounting
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle surfaces
• CPC powder coat finish resists chipping and corrosion; adjustable solid rubber hose stop included

Compatibility

Designed for use with 3/8-inch ID hose up to 30 feet in length; compatible with standard NPT fittings on the inlet swivel connection.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic familiar with hose and fluid system work. Shut off and depressurize the supply line completely before connecting or disconnecting any fittings at the swivel inlet. Secure the base to a structurally sound mounting surface using appropriately rated fasteners for the substrate. Verify hose rating is compatible with the fluid type and working pressure of the system before placing the reel in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length Capacity: 30 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 37 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-330
