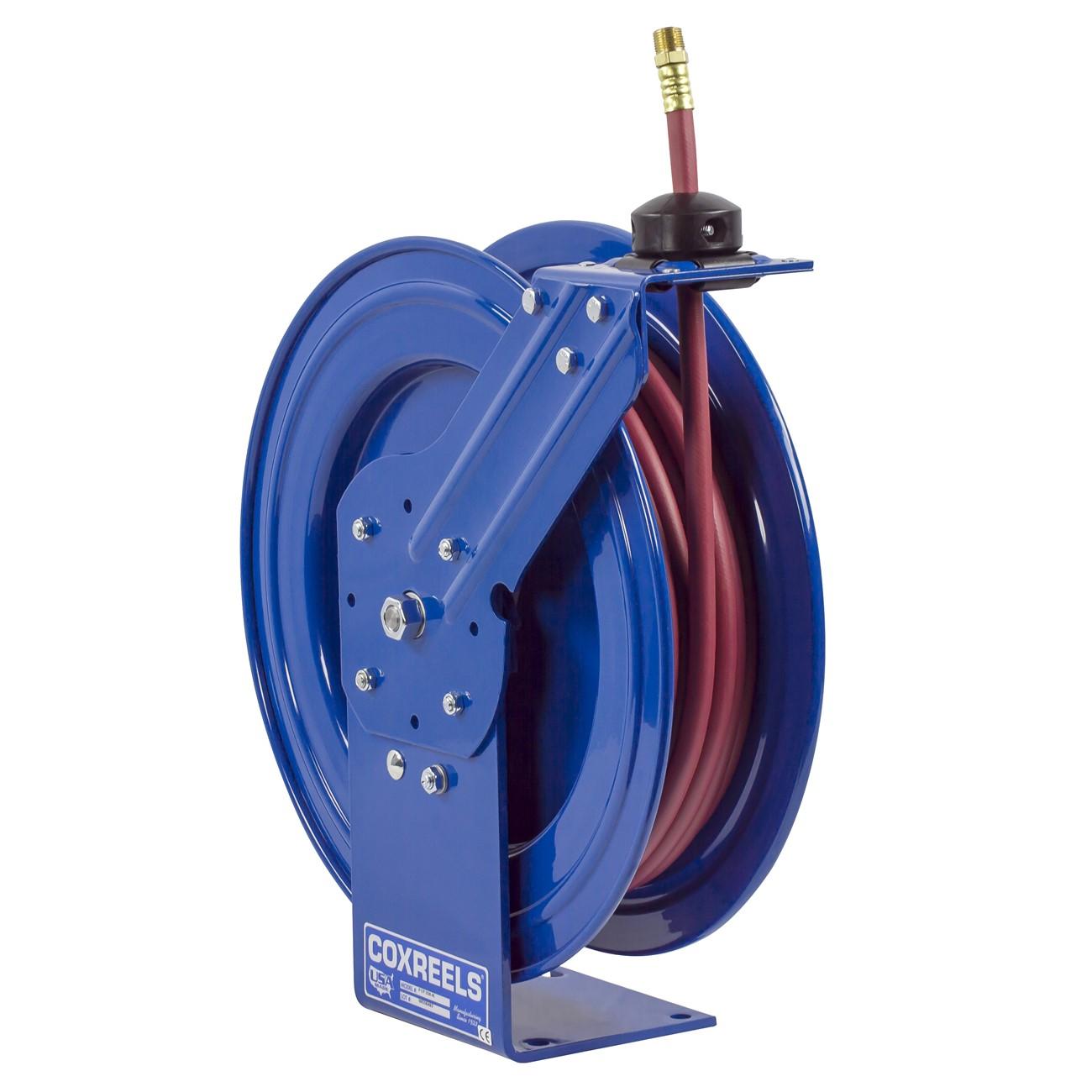

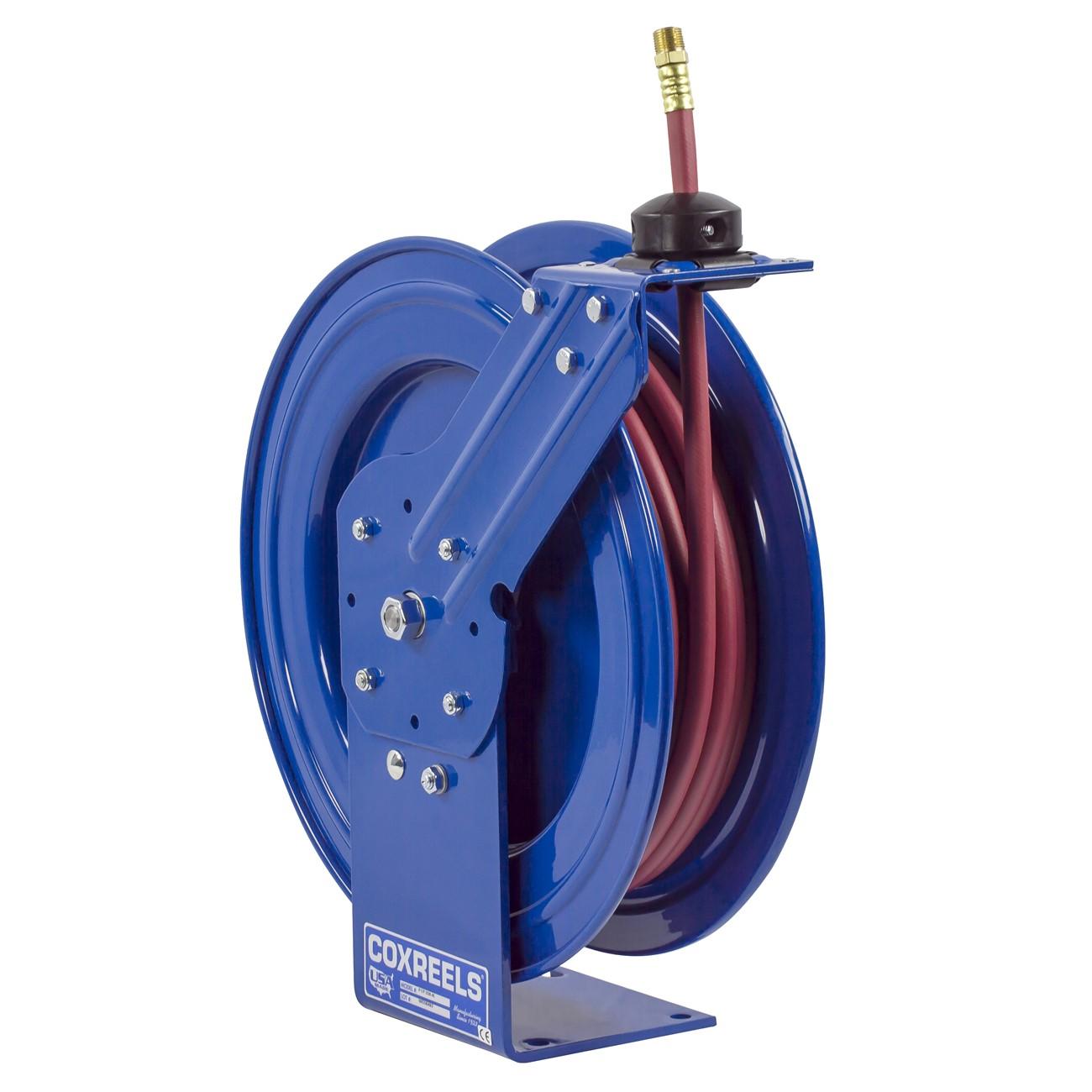

Coxreels P-LP-325-AL Aluminum Spring Driven Hose Reel

Product Description

The COXREELS P-LP-325-AL is an aluminum spring-driven hose reel from the Alumi-Pro series, built for professional use in demanding shop, fleet, and field service environments. It accepts 3/8-inch ID, 5/8-inch OD hose up to 25 feet and retracts automatically via a factory-tuned precision coil spring. The reel is constructed entirely from high-quality aluminum, giving it the structural strength associated with steel while cutting overall weight. At 19 pounds, it is significantly lighter than comparable steel reels. Licensed trades and service technicians working in environments where corrosion resistance matters will find this reel a durable alternative to polypropylene or plastic units.

The P-LP-325-AL suits residential and light commercial service applications including compressed air delivery, fluid transfer, and water service in garages, service bays, and mobile service vehicles. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of installation scenarios. The solid one-piece aluminum base and support post require no welding and provide stable single-pedestal support in permanent or semi-permanent installations.

Key Features

• High-quality aluminum construction — corrosion resistant and significantly lighter than steel
• Factory-tuned cartridge-style coil spring motor is enclosed, lubricated, and removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven retractable hose reel compatible with 3/8-inch ID hose up to 25 feet in length. Consult COXREELS documentation for specific fluid and pressure rating compatibility before installation.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or service technician familiar with hose reel mounting and fluid system connections. Depressurize and disconnect the supply line before mounting or servicing the reel. Secure the base to a structurally sound surface rated for the combined weight of the reel and hose under load. Follow all applicable facility and vehicle codes when installing in mobile service unit applications.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Material: Aluminum
• Swivel Material: Solid brass
• Base Design: Single pedestal, one-piece aluminum, no-weld
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 19 pounds
• UPC: 674255729032

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-325-AL
