Coxreels P-LP-315 Spring Driven Hose Reel 3/8 Inch Id

Product Description

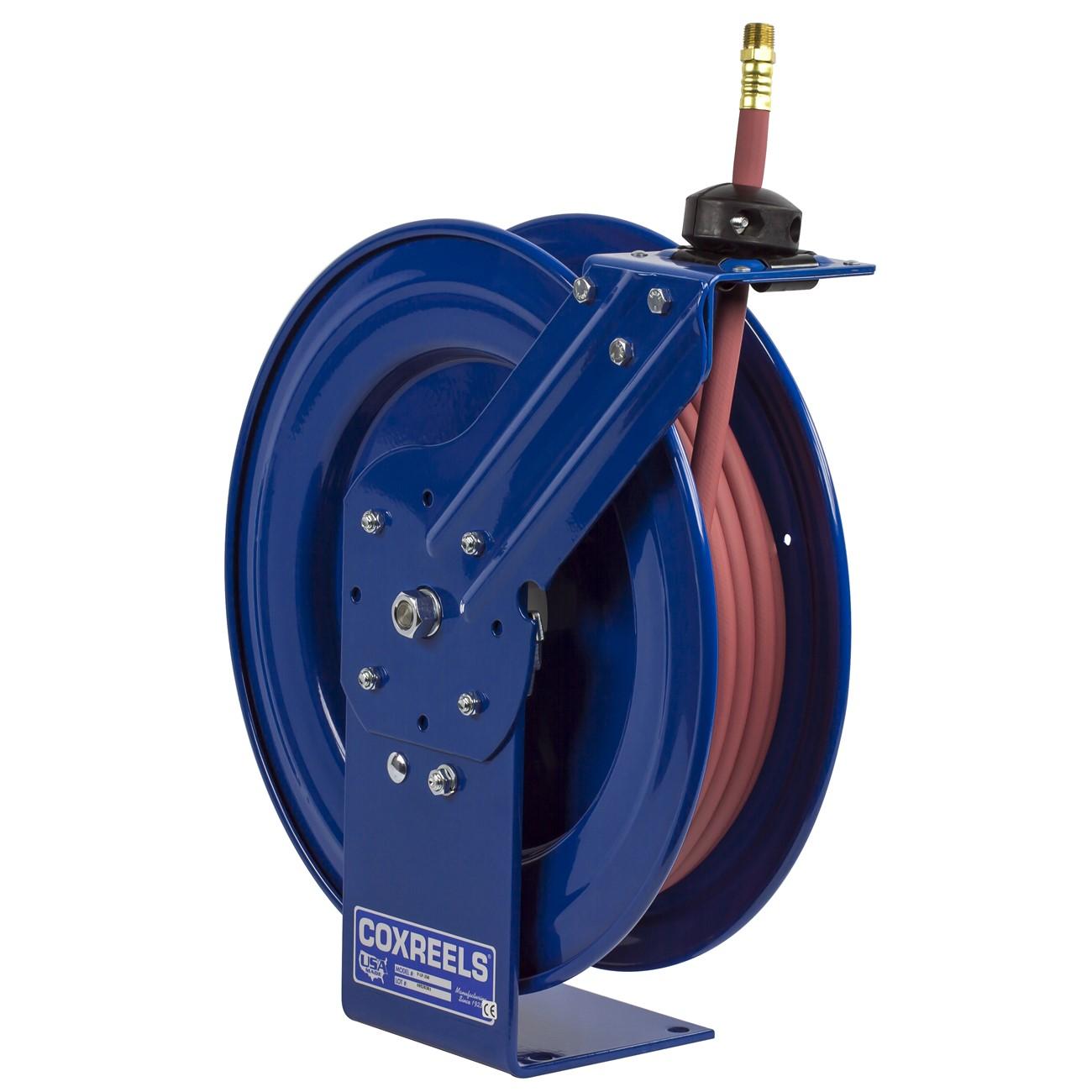

The COXREELS P-LP-315 is a spring-driven hose reel from the P Series line, designed for reliable, hands-free hose retraction in demanding trade and industrial environments. Built on a solid one-piece steel base with a single-pedestal support post, it accepts hose with a 3/8 inch inner diameter and 5/8 inch outer diameter, with a 15 ft hose capacity. The reel features a CPC powder coat finish for chip and rust resistance, and a permanently lubricated cartridge-style motor that encloses and protects the spring drive mechanism. Licensed HVAC technicians, plumbers, mechanics, and industrial service professionals use this reel to manage air, water, and low-pressure fluid lines at fixed or mobile service stations.

The P-LP-315 is suited for light-to-medium duty service applications including garage bays, shop floors, fleet maintenance facilities, and utility vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of install configurations. The machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount, reducing downtime during servicing.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge motor for low-maintenance operation
• Machined solid brass 90-degree full-flow NPT swivel for fast hose installation and simple seal service
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction for maximum stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
• Adjustable solid rubber hose stop and CPC powder coat finish for long-term durability

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven hose reel for 3/8 inch ID hose in light-to-medium duty service applications.

Installation Notes

Installation is typically performed by qualified maintenance technicians or trade professionals. Depressurize and drain the hose and supply line completely before mounting or connecting the reel. Secure the mounting surface to support the combined weight of the reel and hose under load. Verify that the inlet fitting and supply line thread type match the reel swivel before applying pressure.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 15 ft
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 27 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-315
