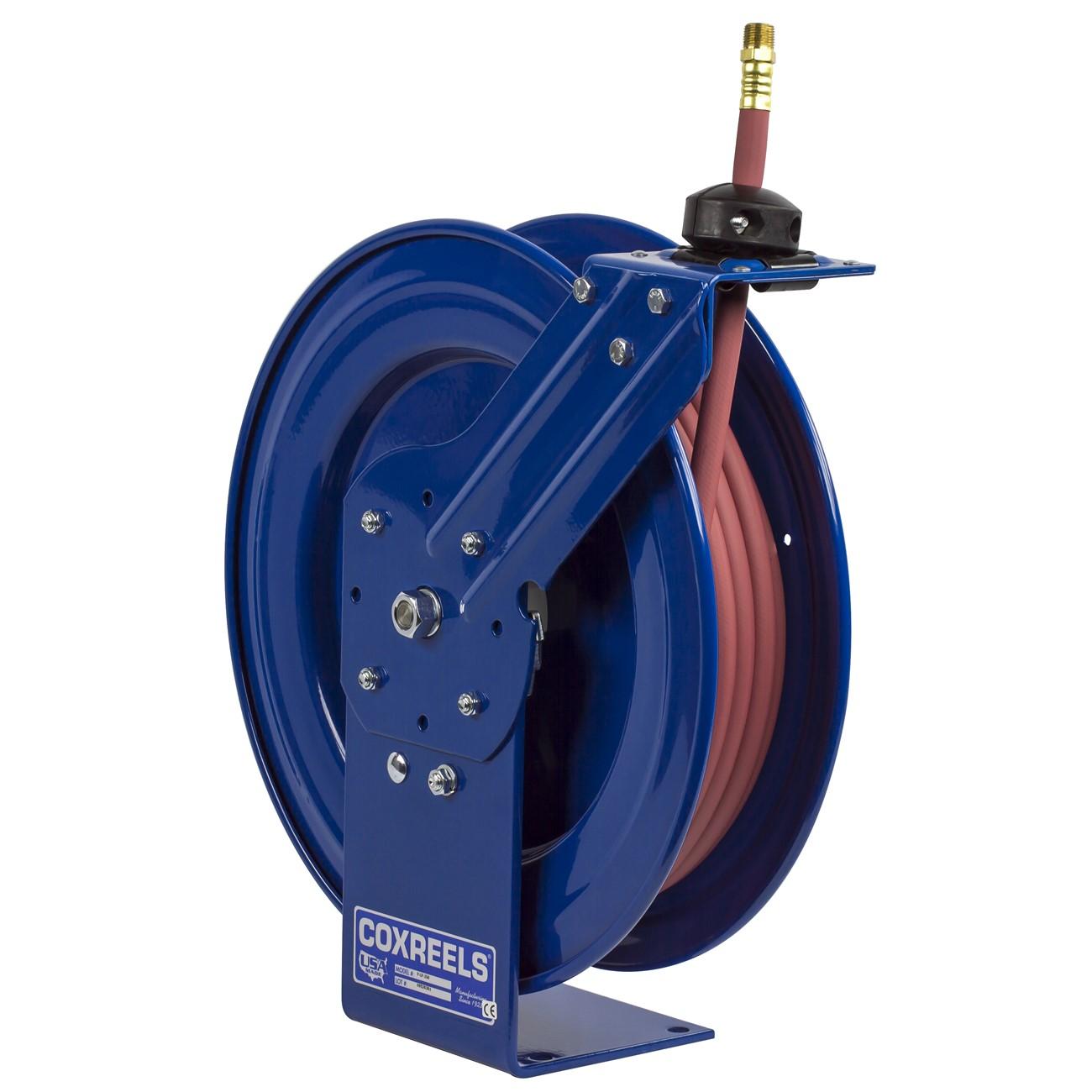

Coxreels P-LP-310 Spring Driven Hose Reel 3/8 Inch Id

Product Description

The COXREELS P-LP-310 is a spring-driven hose reel built for demanding trade environments where reliable retraction and compact footprint matter. Part of the COXREELS P Series, this reel accepts 3/8-inch ID hose up to 10 feet in length and returns it automatically via an enclosed cartridge-style spring motor. The unit weighs 25 pounds and measures 14.5 inches long, 6.75 inches wide, and 16 inches tall, making it practical for wall, floor, ceiling, or vehicle mounting. Heavy-gauge CNC-spun steel discs, a solid one-piece steel base, and a CPC powder coat finish give this reel the structural durability expected in professional service applications. Licensed HVAC, plumbing, and general service technicians are the primary installers.

The P-LP-310 is suited for light-to-medium-duty fluid transfer tasks in residential and commercial service environments. Its compact single-pedestal design integrates into tight shop bays, service vans, and equipment rooms without requiring large mounting footprints. The multi-position guide arm accommodates multiple mounting orientations, allowing the reel to adapt to the specific layout of a job site or permanent service station. The machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount, reducing service downtime.

Key Features

• Spring-driven cartridge motor retracts hose automatically and is removable for maintenance without special tooling
• Machined solid brass 90-degree full-flow NPT swivel supports simple seal service with the reel still mounted
• CNC robotically spun and ribbed steel discs with rolled edges provide hose protection and structural strength
• Solid one-piece steel base and support post with no-weld construction for maximum pedestal stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit spring-driven hose reel for professional service applications requiring 3/8-inch ID hose up to 10 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer equipment and applicable local codes. Depressurize and drain the connected hose and supply line fully before mounting or servicing this reel. Secure the mounting surface to a structural substrate rated for the combined weight of the reel, hose, and fluid load. Verify NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 10 feet
• Drive Type: Spring driven
• Swivel: Machined brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Solid one-piece steel, single pedestal, no-weld
• Finish: CPC powder coat, chip and rust resistant
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 25 pounds
• UPC: 674255718197

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-310
