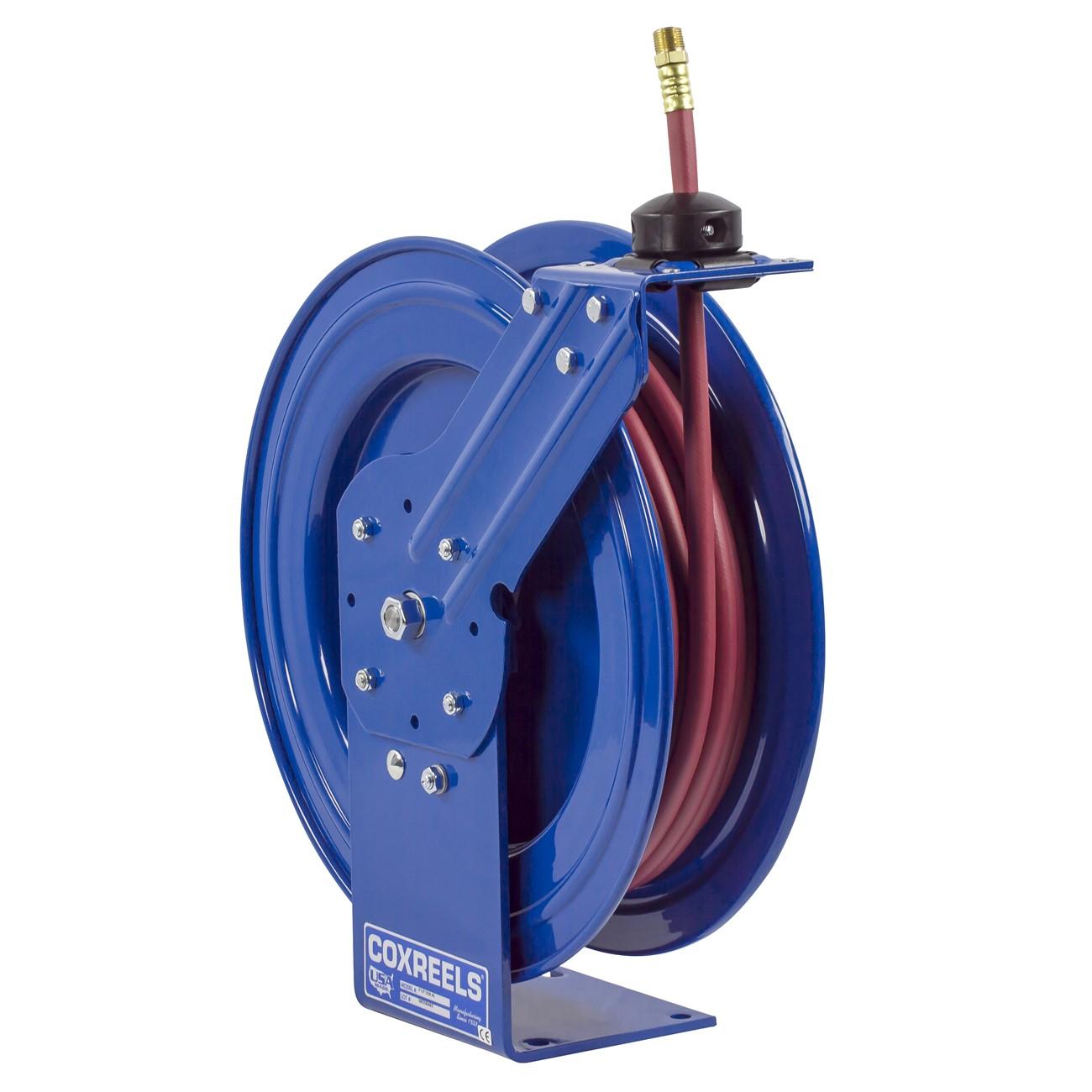

Coxreels P-LP-150-AL Aluminum Spring Driven Hose Reel

Product Description

The COXREELS P-LP-150-AL is a spring-driven, professional-grade aluminum hose reel designed for demanding trade environments where corrosion resistance and reduced weight are priorities. Built on the proven P Series platform, this reel uses high-quality aluminum construction throughout, delivering the structural strength typically associated with steel reels without the added mass. Key specs include a 1/4 inch inner diameter hose path, 1/2 inch outer diameter capacity, and a 50 foot hose length rating. A solid brass 90-degree full-flow NPT swivel supports fast hose installation and simple seal maintenance without removing the reel from its mount. Licensed contractors, fleet mechanics, and service technicians working in weight-sensitive or corrosive environments will find this reel a practical fit.

The P-LP-150-AL suits a wide range of service applications including compressed air delivery, fluid transfer, and light-duty lubrication lines in shop, vehicle-mount, and field service settings. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across fixed and mobile installations. The single-pedestal aluminum base and support post provide a stable, weld-free platform. This reel is well suited for HVAC service vehicles, plumbing trucks, and general mechanical service bays where a durable, non-corrosive spring-return reel is needed.

Key Features

• High-quality aluminum construction offers corrosion resistance with reduced weight compared to steel reels
• Solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe field maintenance; precision coil spring is factory-tuned for long service life
• Heavy-duty CNC robotically spun and ribbed aluminum discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel compatible with 1/4 inch ID hose assemblies up to 50 feet in length; consult hose and fitting specifications to confirm NPT swivel thread compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line systems. Depressurize and disconnect the hose line from the supply source before mounting or servicing the reel. Secure the base to a structurally adequate surface using fasteners appropriate for the mounting substrate and load rating. Refer to local mechanical and safety codes when integrating the reel into a compressed air or fluid distribution system.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Aluminum
• Swivel: Solid brass 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 25 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-150-AL
