Coxreels P-LP-140 Spring Driven Hose Reel 40 Ft

Product Description

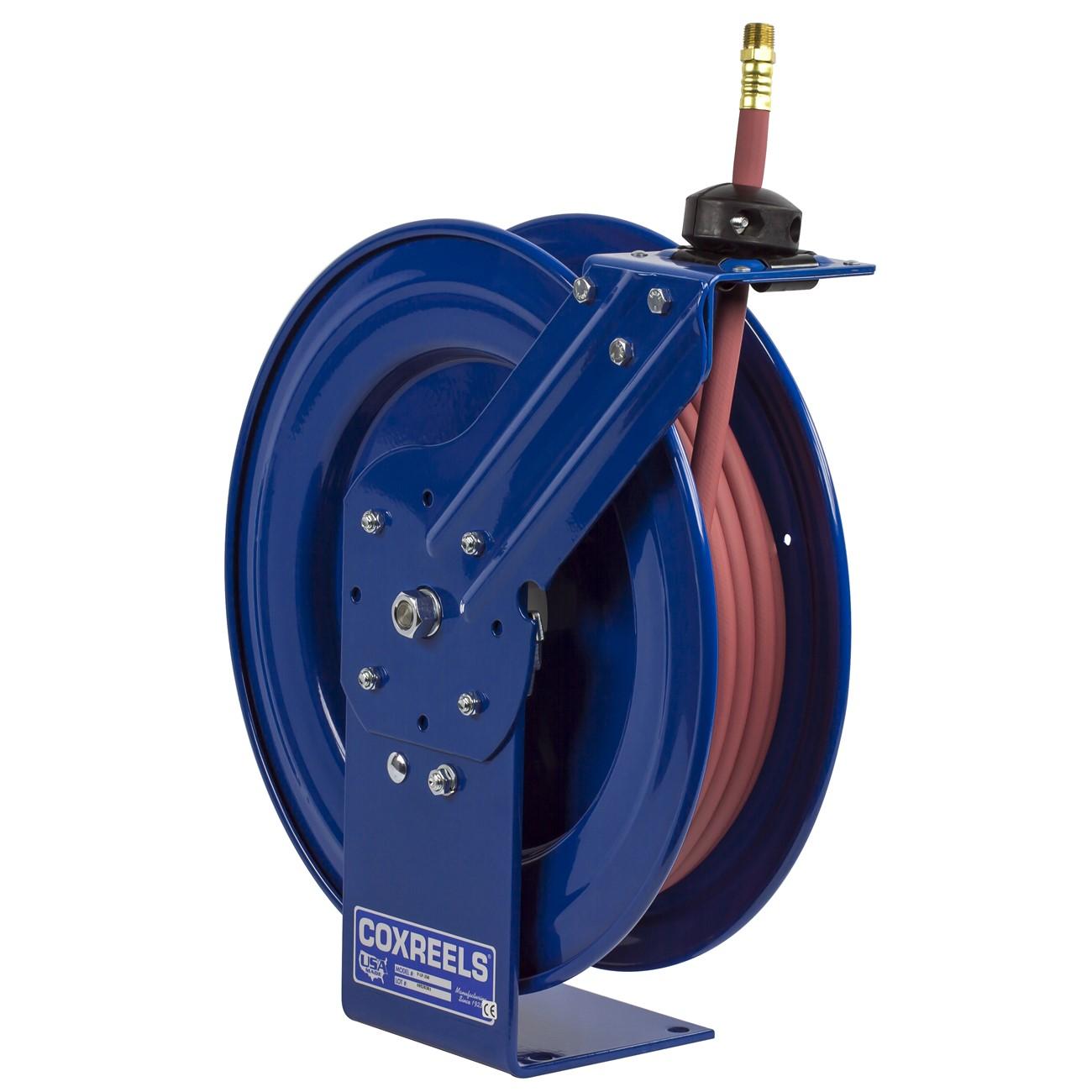

The COXREELS P-LP-140 is a spring driven hose reel from the P Series line, built for trade and industrial environments where reliable hose retrieval and compact footprint matter. The reel accommodates a 1/4 inch ID, 1/2 inch OD hose up to 40 feet in length and retracts automatically via an enclosed cartridge-style spring motor. Weighing 38 pounds and measuring 17.5 inches long by 8.5 inches wide by 19.25 inches tall, it fits in tight service bays, utility rooms, and fleet vehicles without sacrificing durability. A CPC powder coat finish resists chipping and rust for extended service life. This unit ships as a single reel assembly.

The P-LP-140 suits residential and light commercial service applications where a compact, self-retracting hose reel is needed at a fixed workstation or on a service vehicle. Typical installations include compressed air lines, low-pressure fluid delivery, and similar small-bore hose runs in shops, garages, and fleet maintenance bays. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of job site layouts.

Key Features

• Spring driven cartridge motor retracts hose automatically; motor is enclosed, lubricated, and removable for maintenance without tools in the field
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect the hose during retraction
• Single pedestal base is one-piece steel with no welds, delivering maximum stability across all mounting orientations
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings are included

Compatibility

Designed for use with 1/4 inch ID, 1/2 inch OD hose up to 40 feet in length; verify hose material and pressure rating against the application before installation.

Installation Notes

Installation is typically performed by a qualified mechanic or plumbing technician depending on the fluid medium being handled. Power down or depressurize the supply line fully before connecting or disconnecting the swivel fitting. Follow applicable local codes and the manufacturer mounting instructions when securing the steel base to wall, floor, ceiling, or vehicle surfaces. Do not exceed the hose or fitting pressure ratings for the intended service medium.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Maximum Hose Length: 40 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 38 pounds
• UPC: 674255718159

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-140
