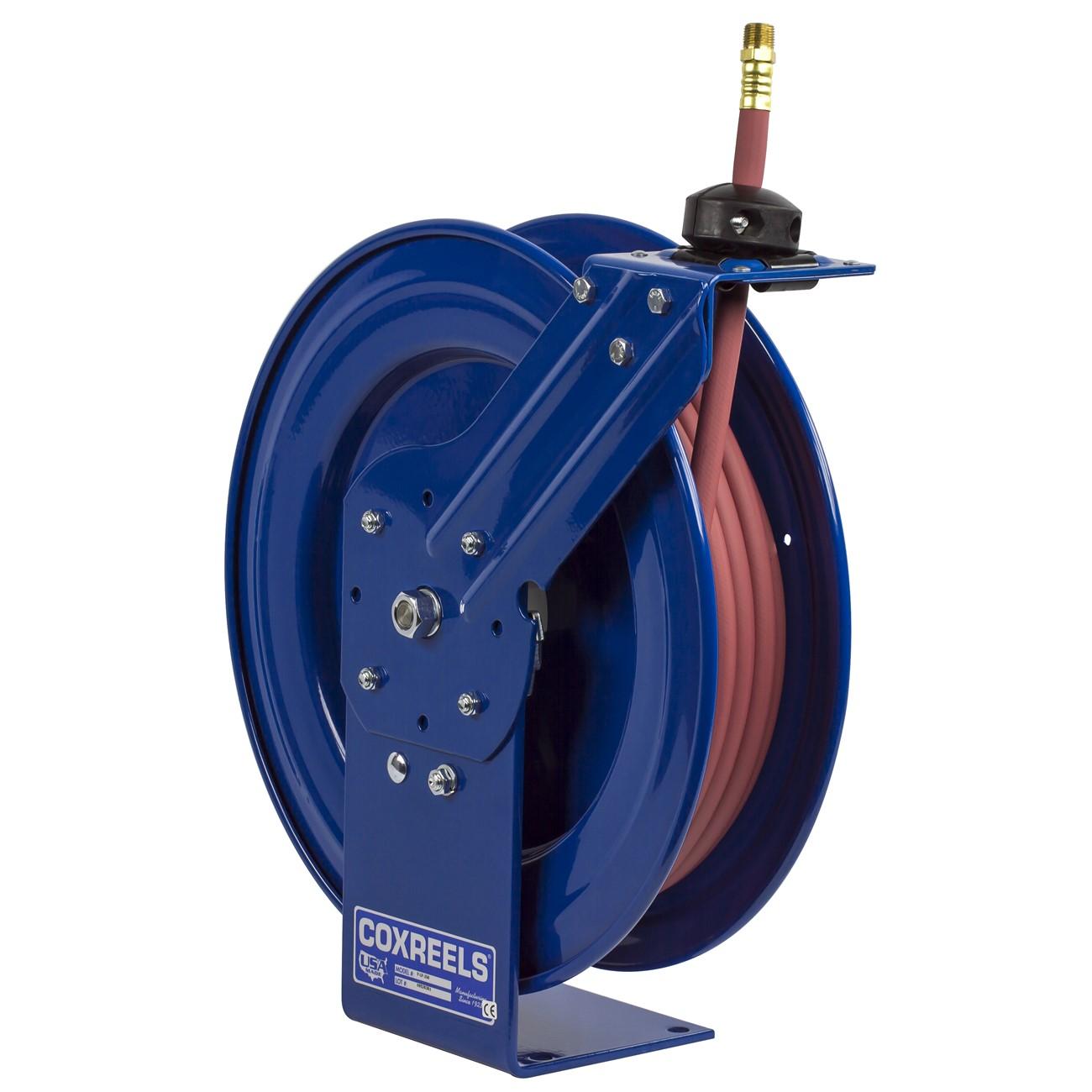

Coxreels P-LP-125 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS P-LP-125 is a spring-driven hose reel from the P Series line, designed for reliable retraction of 1/4 inch ID, 1/2 inch OD hose in lengths up to 25 feet. The unit is built around heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, providing structural strength and protecting hose integrity during repeated cycling. A permanently lubricated cartridge-style motor drives retraction and is fully enclosed for protection in demanding shop, field, and vehicle-mount environments. Weighing 27 pounds and measuring 14.5 inches long by 6.75 inches wide by 16 inches tall, the reel suits tight spaces without sacrificing durability. Licensed HVAC technicians, plumbers, and general service professionals install this unit where dependable, compact hose management is required.

The P-LP-125 is suited for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to service vans, shop bays, and jobsite installations. The multi-position guide arm adjusts to the mounting orientation without requiring a separate bracket kit. It is commonly deployed in low-pressure air, water, and compatible fluid service applications where a self-retracting reel reduces hose handling time and wear. The single-pedestal steel base provides stable, no-weld support across all mounting positions.

Key Features

• Spring-driven cartridge motor — lubricated, enclosed, and removable for maintenance without removing the reel from its mount
• CNC robotically spun ribbed steel discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel for fast hose installation and seal serviceability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• CPC powder coat finish for chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style spring-driven hose reel compatible with 1/4 inch ID, 1/2 inch OD hose up to 25 feet in length. Suitable for low-pressure air, water, and compatible fluid service lines.

Installation Notes

Installation is typically performed by service technicians familiar with hose reel mounting hardware and applicable local codes. Before servicing or remounting, relieve all hose pressure and lock out the supply line. The multi-position guide arm should be secured in the correct orientation before final mounting fastener torque is applied. Confirm hose end connections are rated for the intended working pressure of the supply system before placing the reel in service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Solid one-piece steel, single pedestal, no-weld
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 27 pounds
• UOM: Each
• UPC: 674255718074

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-125
