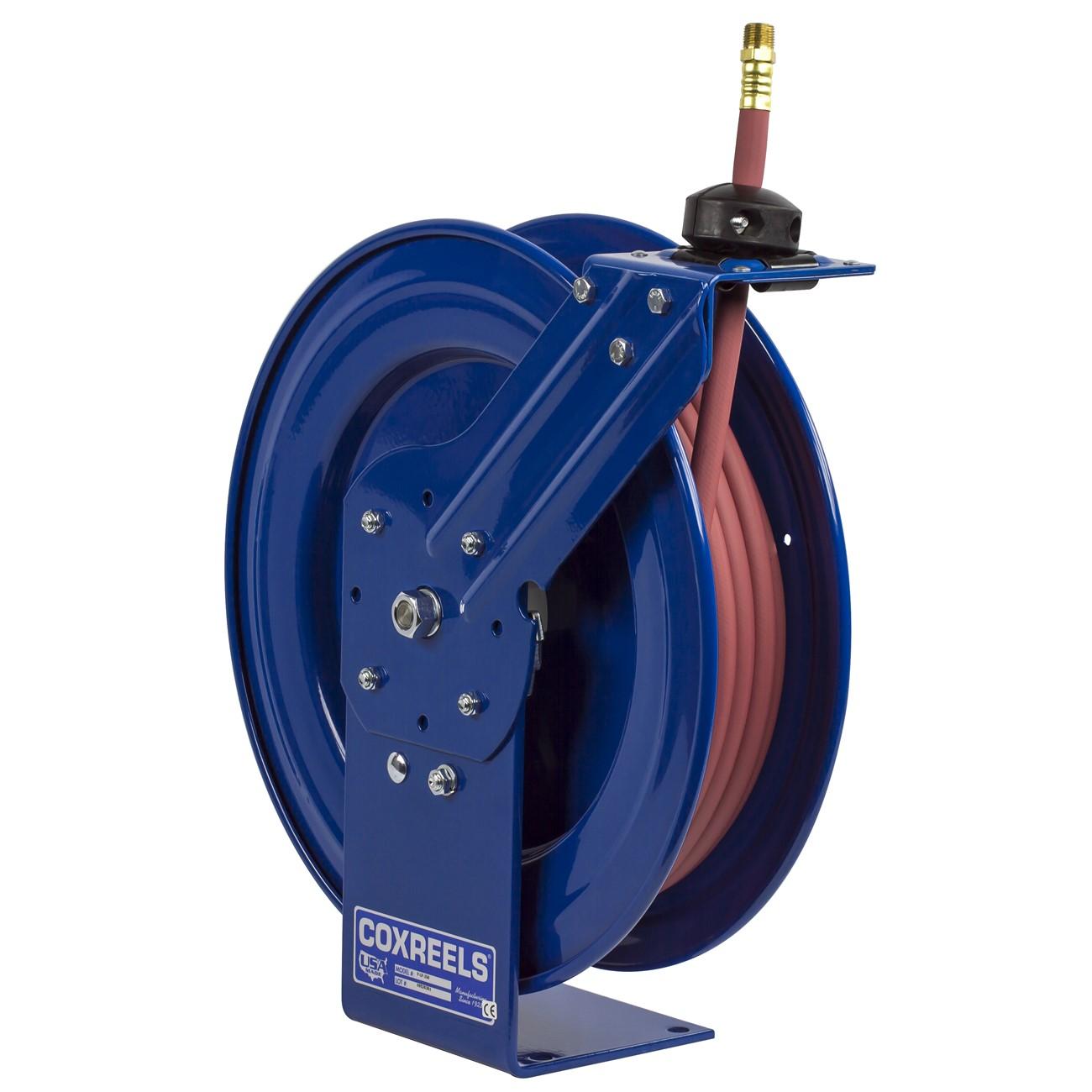

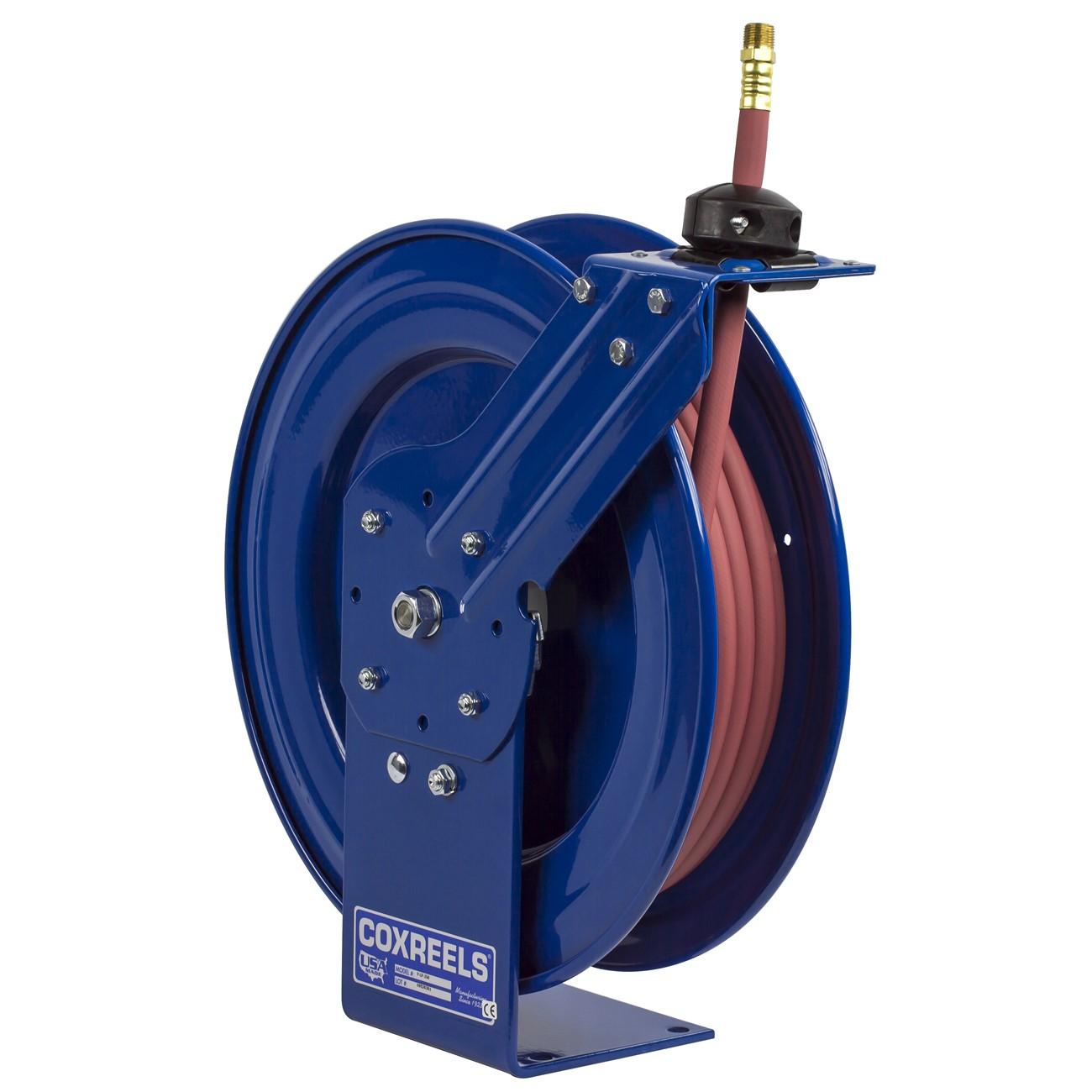

Coxreels P-LP-110 Spring Driven Hose Reel 10 Ft

Product Description

The COXREELS P-LP-110 is a spring-driven hose reel from the P Series line, built for trade and industrial applications where reliable hose management is essential. The reel accepts a 1/4 inch ID hose up to 10 feet in length and returns it automatically via an enclosed cartridge-style spring motor. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural strength while protecting the hose during retraction. The unit weighs 27 pounds and measures 14.5 inches long by 6.75 inches wide by 16 inches tall, making it a compact option for installations with limited wall or floor space.

The P-LP-110 is suited for residential and light commercial service work where a short, controlled hose run is required. Typical applications include compressed air delivery, low-pressure fluid transfer, and similar trades-service scenarios. The reel is compatible with wall, floor, ceiling, and vehicle mounting configurations thanks to its multi-position guide arm and single-pedestal steel base. HVAC technicians, plumbers, and general mechanical contractors commonly use this style of reel at the service van or in a utility room setting.

Key Features

• Enclosed cartridge-style spring motor is fully lubricated and removable for maintenance without tools or reel removal
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• One-piece solid steel base with no-weld support post for maximum mounting stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mount
• CPC powder coat finish resists chipping and rust for long service life in harsh environments
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with 1/4 inch ID hose up to 10 feet in length; compatible with standard NPT hose and fitting connections typical of compressed air and low-pressure fluid service applications.

Installation Notes

Installation is typically performed by a qualified mechanical or service technician. Depressurize and disconnect the air or fluid supply completely before mounting or servicing the reel. The multi-position guide arm should be secured to a structurally sound surface rated for the combined weight of the reel and loaded hose. Refer to applicable facility or vehicle codes when mounting in mobile service unit applications.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Maximum Hose Length: 10 feet
• Drive Type: Spring driven
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 27 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LP-110
