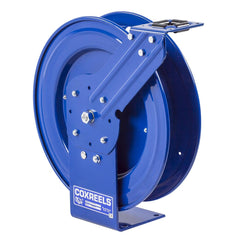

Coxreels P-HPL-325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS P-HPL-325 is a spring-driven hose reel built for demanding trade applications where reliability and compact footprint matter. Part of the COXREELS P Series, this unit features a 3/8 inch inner diameter hose capacity, accommodates up to 25 feet of hose, and is constructed from steel throughout. The cartridge-style spring motor is enclosed and pre-lubricated, allowing field removal and maintenance without specialized tooling. A CNC robotically spun disc design with ribbed surfaces and rolled edges adds structural rigidity while protecting hose integrity during retraction. Licensed trades and fleet mechanics install this reel in service bays, vehicles, and fixed utility stations.

The P-HPL-325 is suited for pressurized fluid delivery in automotive service, industrial maintenance, and light construction environments. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of fixed and mobile installations. The single-pedestal steel base uses a no-weld one-piece construction for maximum stability. The CPC powder coat finish resists chipping and rust, extending service life in high-use environments where the reel is cycled repeatedly throughout a shift.

Key Features

• Spring-driven automatic retraction with enclosed, pre-lubricated cartridge motor removable for maintenance without dismounting the reel
• 3/8 inch ID hose capacity up to 25 feet with 11/16 inch OD compatibility
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• One-piece no-weld steel base and support post for a stable single-pedestal footprint
• CPC powder coat finish — chip resistant and rust inhibiting for extended service life

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation for 3/8 inch ID hose assemblies in automotive, industrial, and fleet service applications.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Power down or depressurize any connected fluid system before mounting or connecting hose. Secure the steel base to a structurally sound surface using appropriate fasteners for the mounting orientation — wall, floor, ceiling, or vehicle. Verify NPT swivel fitting thread compatibility with the supply line before final connection and pressurization.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 25 feet
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 42 pounds
• UPC: 674255718005

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HPL-325
