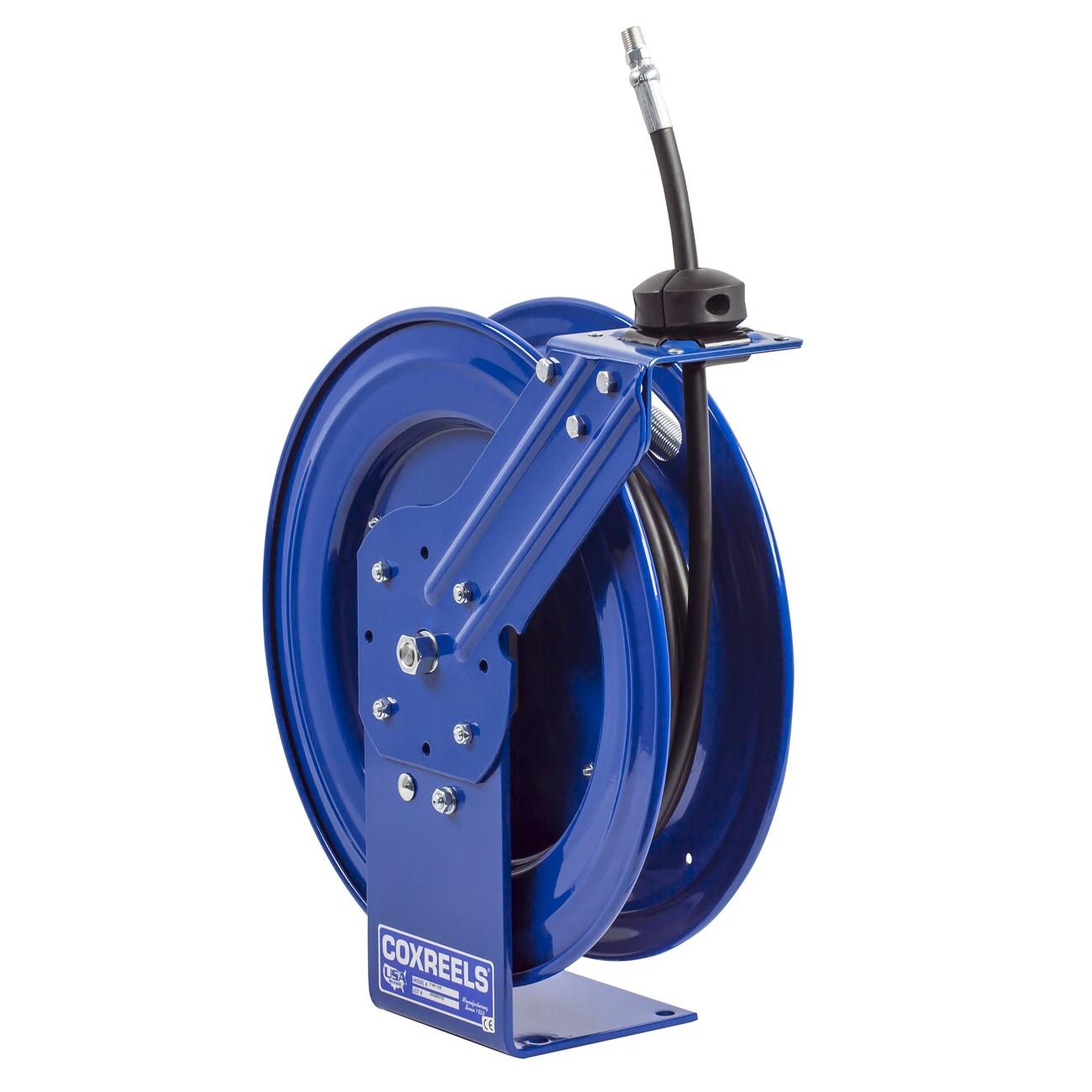

Coxreels P-HP-330 Spring Driven Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS P-HP-330 is a spring-driven hose reel from the P Series line, built for heavy-duty industrial and trade applications. Constructed from steel with a CPC powder coat finish, it accepts 3/8 inch ID hose up to 30 feet in length. The unit weighs 51 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. A machined zinc-plated steel swivel with full-flow NPT connection allows seal maintenance without removing the reel from its mount. Licensed plumbers, HVAC technicians, and industrial service technicians working with compressed air, water, or fluid lines are the primary installers of this reel.

The P-HP-330 is suited for wall, floor, ceiling, and vehicle mounting positions, making it adaptable across service bays, mechanical rooms, and fleet maintenance environments. Its compact footprint and single-pedestal base keep it practical in tight spaces. The spring-driven retraction mechanism keeps hose under controlled tension during use and automatically retracts the hose when the line is released. This reel is appropriate for residential and commercial service environments where durable, repeatable hose management is required.

Key Features

• Spring-driven retraction for automatic hose retrieval without manual winding
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for convenient field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mount orientations
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed to accept 3/8 inch ID hose with 11/16 inch OD up to 30 feet in length. Consult COXREELS P Series fitment documentation to confirm compatibility with specific hose assemblies and mounting hardware.

Installation Notes

Installation should be performed by a qualified technician familiar with the fluid or air system the reel will serve. Depressurize and isolate the supply line before making any swivel or hose connections. Secure the base to a structurally sound mounting surface rated for the combined weight of the reel and hose assembly under load. Verify that NPT thread connections are sealed appropriately for the media and pressure range of the application.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length Capacity: 30 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 51 pounds
• UPC: 674255717930

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-330
