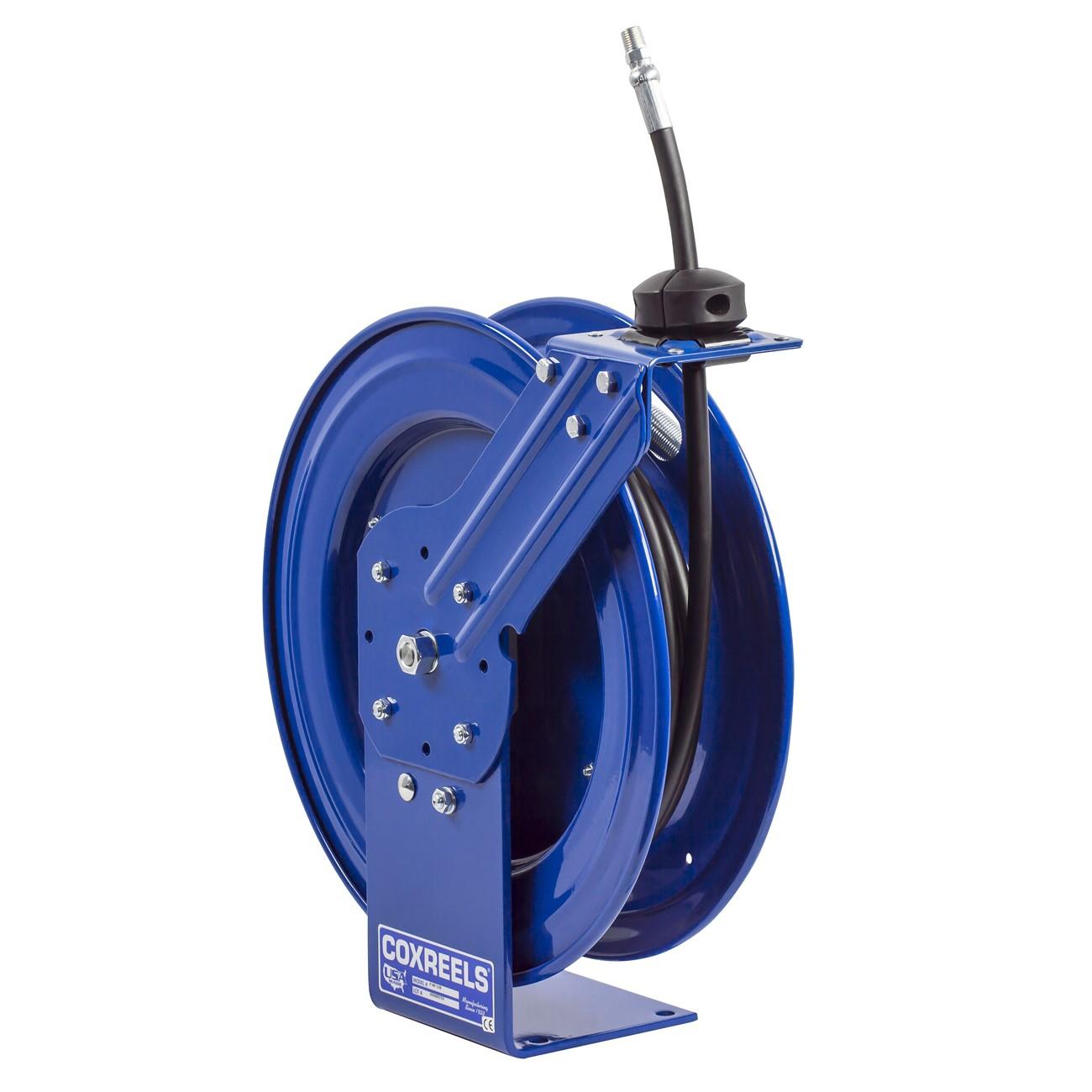

Coxreels P-HP-325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS P-HP-325 is a spring-driven hose reel from the P Series line, built for continuous-duty service in demanding trade environments. It accepts hose with a 3/8 inch inner diameter and handles up to 25 feet of hose. The steel construction and CNC robotically spun ribbed discs give it the structural rigidity needed for daily shop, fleet, or field use. A permanently lubricated cartridge-style spring motor drives automatic retraction, reducing hose handling time on the job. Licensed contractors and service technicians in HVAC, plumbing, industrial, and fleet maintenance applications rely on this reel for consistent, trouble-free performance over a long service life.

The P-HP-325 is suited for wall, floor, ceiling, and vehicle mounting, making it adaptable across fixed shop installations and mobile service rigs. Its compact footprint keeps it practical in tight bays or utility rooms. The multi-position guide arm accommodates a wide range of mounting orientations without requiring separate hardware kits. This reel is a fit for air, water, and compatible fluid delivery lines in light industrial and commercial service settings where a reliable retractable reel is required at a dedicated workstation or on a service vehicle.

Key Features

• Spring-driven automatic retraction with enclosed, lubricated cartridge motor for low-maintenance operation
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• Single-pedestal steel base with solid one-piece construction and support post, no weld joints, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement or direct-fit reel for 3/8 inch ID hose applications in industrial, commercial, and fleet service installations requiring spring-driven retraction.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or industrial technician depending on the fluid media being conveyed. Shut off and depressurize the supply line before connecting or disconnecting hose at the swivel inlet. Mount to a structurally sound surface rated for the combined weight of the reel and fully loaded hose. Verify that the hose material and pressure rating are compatible with the intended fluid and working pressure before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Disc Material: Steel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 49 pounds
• UPC: 674255717923

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-325
