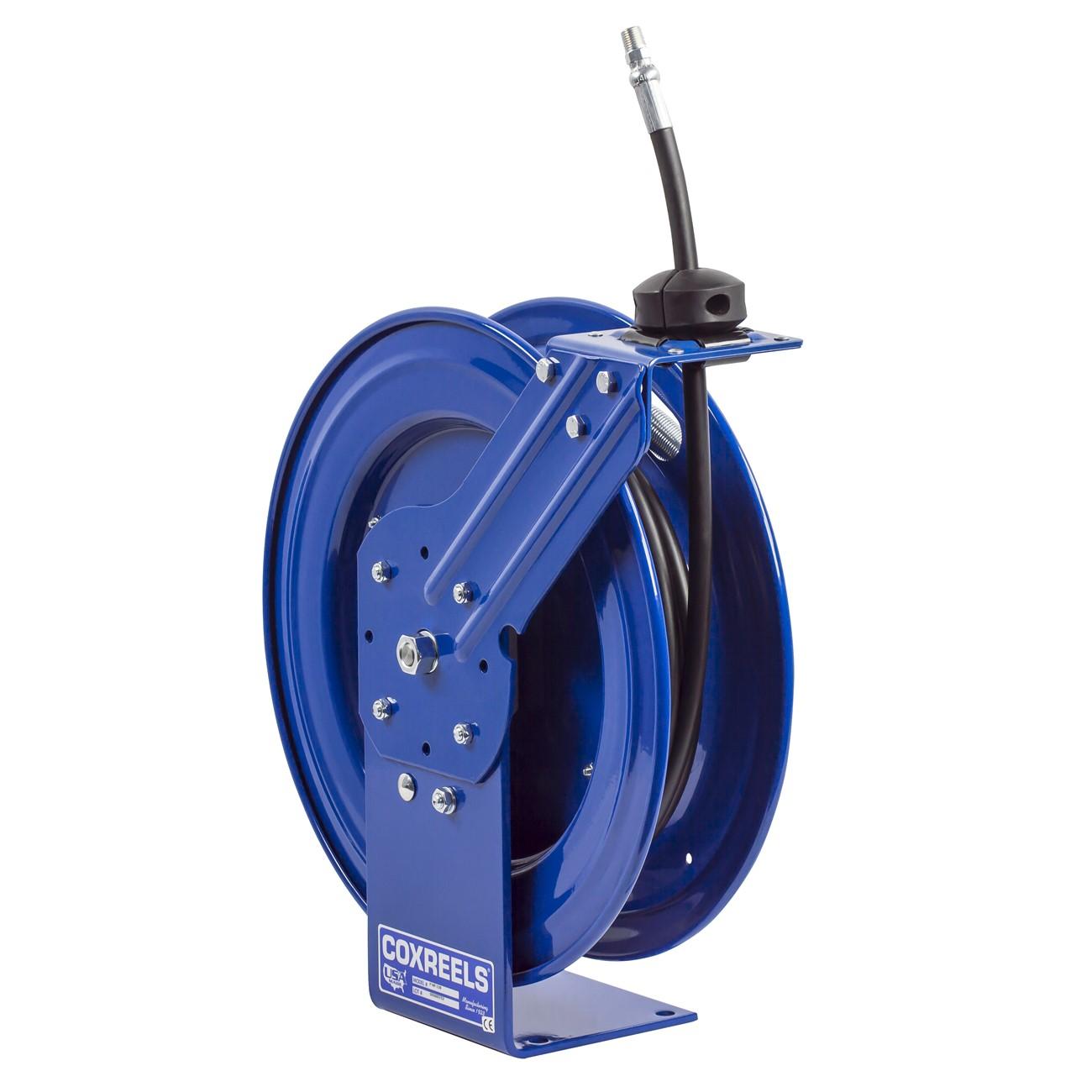

Coxreels P-HP-320 Spring Driven Hose Reel 3/8 in 20 Ft

Product Description

The COXREELS P-HP-320 is a spring-driven hose reel from the P Series line, built for demanding trade environments where durability and fast hose retrieval matter. Constructed with heavy-duty steel and a CPC powder coat finish that resists chips and rust, this reel is designed for long service life in industrial, mechanical, and fleet maintenance settings. The enclosed cartridge-style spring motor retracts the hose automatically and can be removed without special tools for routine maintenance. The 90-degree full-flow NPT swivel is machined from zinc-plated steel, allowing hose installation without removing the reel from its mount. Licensed HVAC technicians, plumbers, fleet mechanics, and general industrial service techs are the primary installers and users of this unit.

The P-HP-320 suits applications requiring a compact, wall-, floor-, ceiling-, or vehicle-mounted hose reel for delivering air, water, or compatible fluids through a 3/8 inch ID hose up to 20 feet in length. Its space-saving footprint makes it practical in service bays, mechanical rooms, and utility areas where mounting space is limited. The multi-position guide arm accommodates a range of mounting orientations without additional hardware modifications, making it adaptable across fixed and mobile service vehicle installations.

Key Features

• Spring-driven cartridge motor retracts hose automatically; removable for maintenance without dismounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven hose reel for 3/8 inch ID hose assemblies in industrial and trade service applications.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician familiar with hose reel mounting hardware and fluid system connections. Shut off and depressurize the supply line fully before connecting or disconnecting hose fittings. Secure the reel base to a structurally sound surface rated for the combined weight of the reel and hose under operating tension. Verify that inlet fittings and thread types match the supply line before applying system pressure.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length: 20 feet
• Drive Type: Spring driven
• Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 47 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-320
