Coxreels P-HP-135 Spring Driven Hose Reel 1/4 in 35 Ft

Product Description

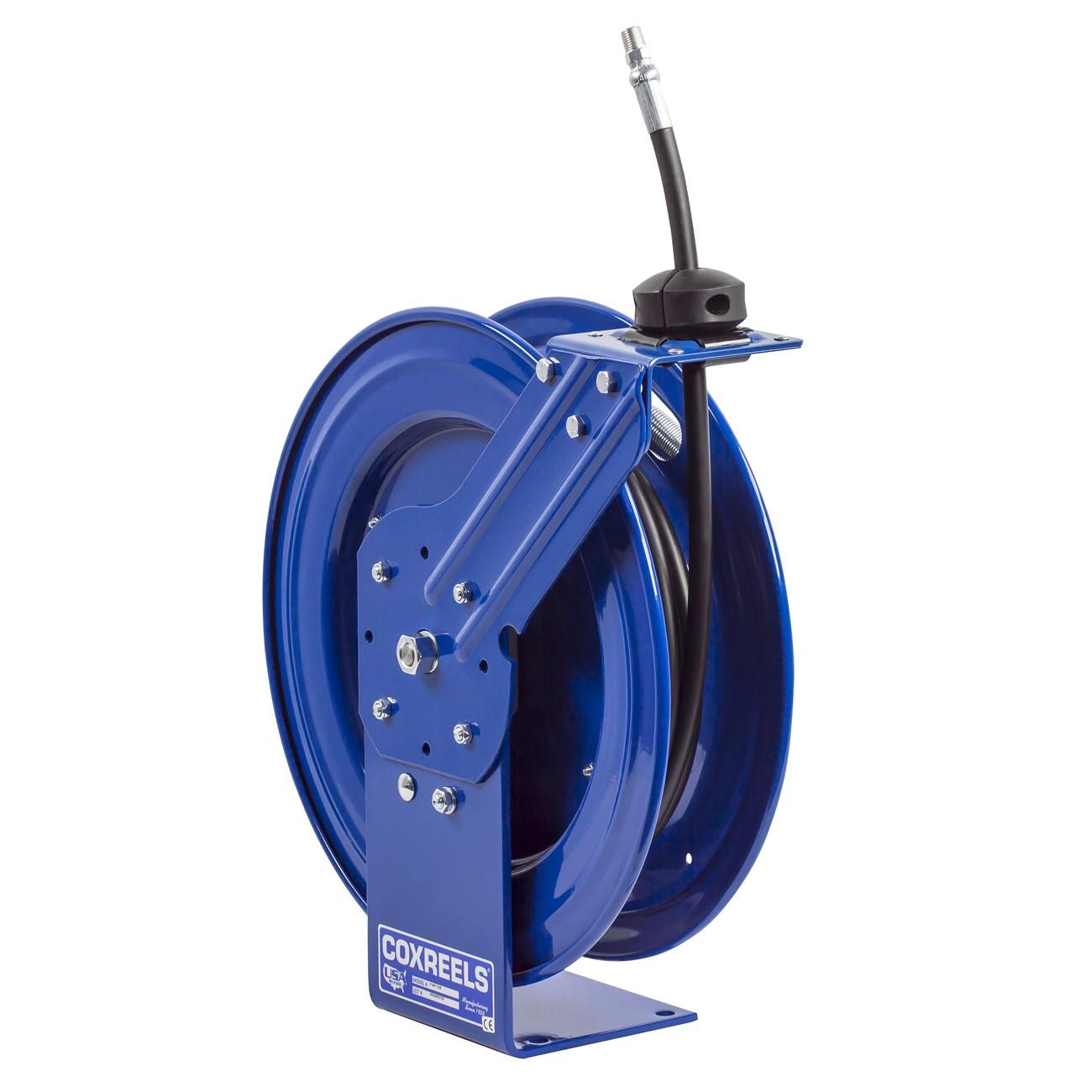

The COXREELS P-HP-135 is a spring-driven hose reel from the P Series line, built for demanding trade applications where reliable hose management and long service life are required. The reel accepts 1/4 inch inner diameter hose up to 35 feet in length and returns it automatically via an enclosed cartridge-style spring motor. The unit is constructed with heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, a solid one-piece steel base and support post, and a chip-resistant CPC powder coat finish that resists rust and corrosion. Licensed technicians and service pros across HVAC, fluid handling, and industrial maintenance rely on this reel for consistent, hands-free hose retraction in fixed and mobile installations.

The P-HP-135 is suited for light-fluid and pneumatic service applications in both residential and commercial settings. Its compact footprint makes it a practical choice for service vans, shop walls, ceilings, and floor-mounted stations. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across job sites. The 90-degree full-flow NPT swivel is machined from zinc-plated steel and allows hose installation and seal maintenance without removing the reel from its mount.

Key Features

• Spring-driven cartridge motor enclosed and lubricated for safe, easy removal during maintenance
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• 90-degree full-flow NPT swivel machined from zinc-plated steel for simple seal service
• Solid one-piece steel base and support post with no-weld single pedestal design
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle surfaces
• CPC powder coat finish resists chips and rust for long-term durability

Compatibility

Designed as a direct-fit replacement or new-installation spring-driven hose reel for 1/4 inch inner diameter hose up to 35 feet in length across pneumatic and fluid service applications.

Installation Notes

Installation is typically performed by a qualified technician or mechanic familiar with hose reel mounting and fluid line connections. Shut off all pressure to the supply line before connecting or servicing the reel. Ensure the mounting surface is rated to support the reel weight and any dynamic load from hose tension. Follow applicable facility or vehicle codes when routing hose and securing supply fittings.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Capacity: 35 feet
• Retraction Type: Spring driven
• Swivel: 90-degree full-flow NPT, zinc-plated steel
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 51 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-135
