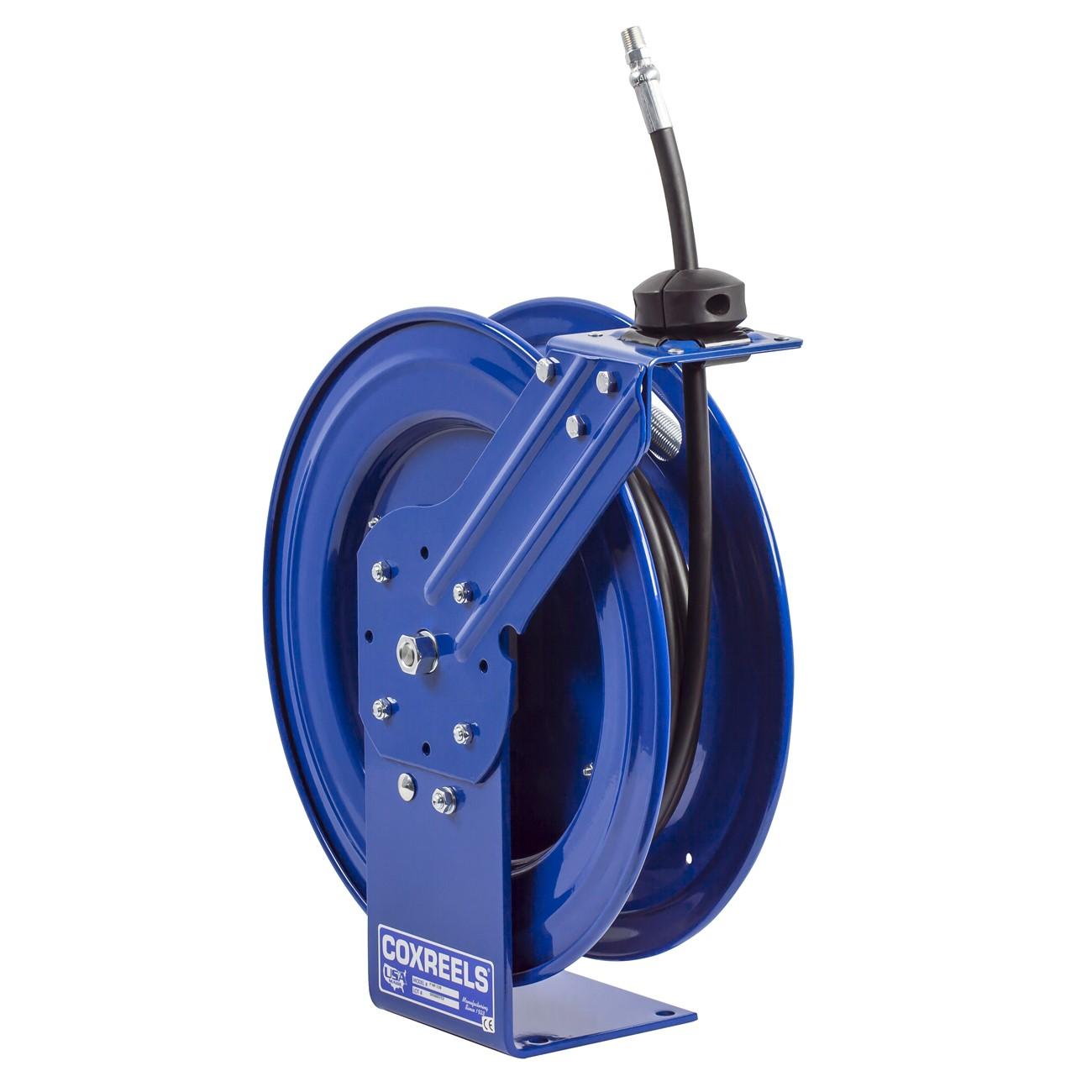

Coxreels P-HP-130 Spring Driven Hose Reel 1/4 in 30 Ft

Product Description

The COXREELS P-HP-130 is a spring-driven hose reel from the P Series line, built for reliable, repeat-use performance in demanding trade environments. The reel accepts 1/4 inch ID hose up to 30 feet in length and returns it automatically via a spring-driven cartridge motor. The unit weighs 50 pounds and measures 17.5 inches long by 8.5 inches wide by 19.25 inches tall, making it compact enough for tight service bays, vehicles, or wall-mounted utility stations. Heavy-duty CNC-spun ribbed discs and a solid one-piece steel base give this reel the structural integrity needed for daily professional use. Licensed HVAC techs, plumbers, and general service contractors are the primary installers.

The P-HP-130 is suited for residential and light commercial service applications where a compact, self-retracting hose reel is needed. It mounts to walls, floors, ceilings, or vehicles using the multi-position guide arm, making it adaptable to fixed shop installations and mobile service unit builds alike. The spring motor rewinds the hose automatically, reducing trip hazards and keeping work areas organized. This reel is a practical choice for air, water, and compatible fluid delivery in service bays, mechanical rooms, and fleet maintenance facilities.

Key Features

• Spring-driven cartridge motor automatically retracts hose; motor is removable for maintenance without dismounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post, no weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit spring-driven hose reel for 1/4 inch ID hose applications in professional service installations.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line before connecting or disconnecting the reel. Secure the mounting surface to a structurally sound substrate using fasteners rated for the combined weight of the reel and hose. Verify that hose material and pressure ratings are compatible with the intended fluid or gas before placing the reel in service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 30 feet
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 50 pounds
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255717893

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-130
