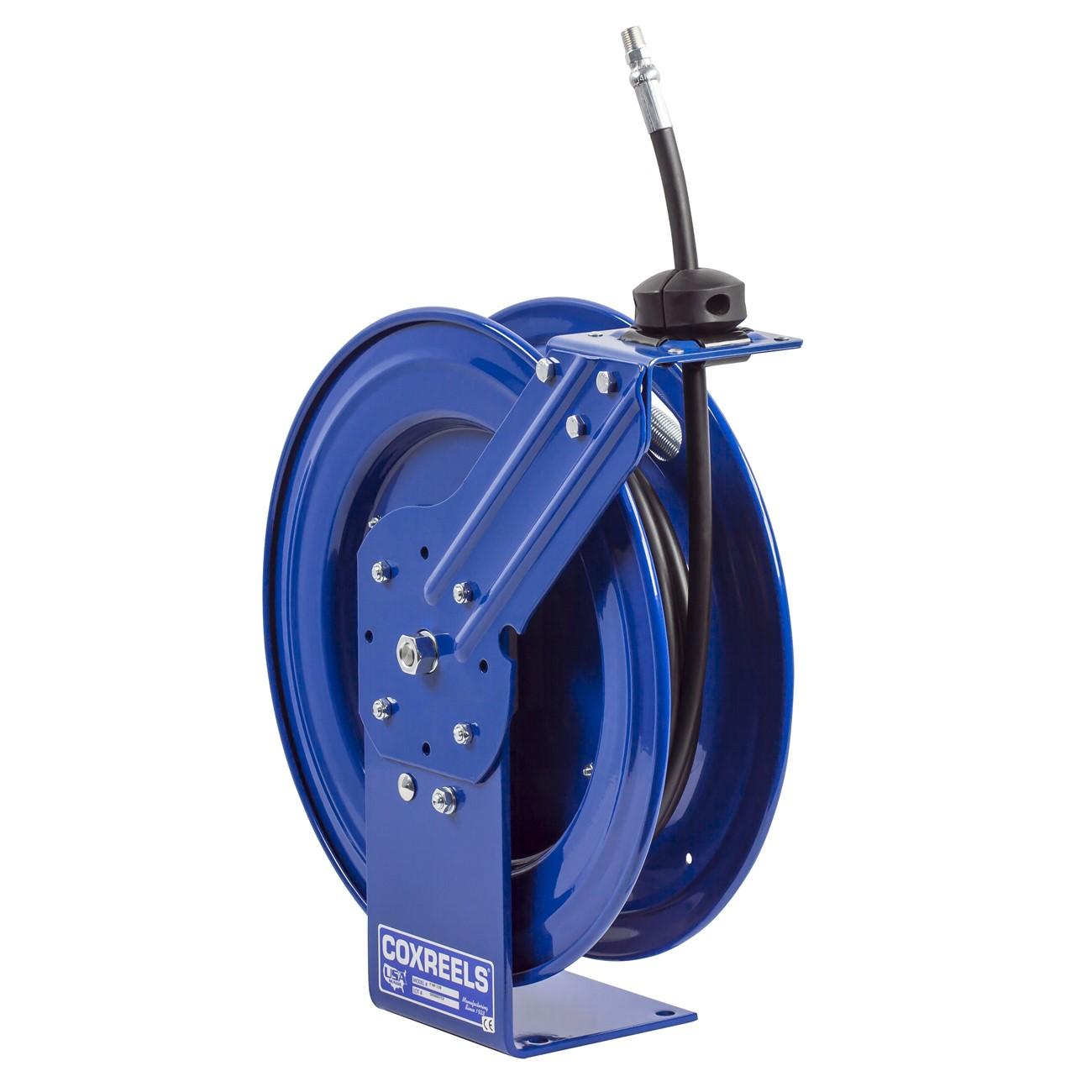

Coxreels P-HP-125 Spring Driven Hose Reel 1/4 in 25 Ft

Product Description

The COXREELS P-HP-125 is a spring-driven hose reel from the P Series line, built for demanding trade applications where reliability and compact installation space both matter. The reel accepts 1/4 inch ID hose up to 25 feet in length and is engineered for continuous-duty use in industrial, mechanical, and service environments. Key construction highlights include heavy-duty CNC robotically spun and ribbed steel discs with rolled edges, a permanently lubricated cartridge-style motor, and a CPC powder coat finish rated for chip resistance and rust inhibition. Licensed trades and fleet service technicians are the primary installers.

The P-HP-125 is suited for wall, floor, ceiling, and vehicle mounting configurations, making it a practical fit across service bays, mechanical rooms, and mobile service rigs. The multi-position guide arm adjusts to accommodate each of those mounting orientations without requiring reel removal. The 90-degree full-flow NPT swivel is machined from zinc-plated steel, allowing hose installation and seal maintenance without dismounting the reel. This reel is appropriate for compressed air, fluid dispensing, and similar low-volume pressurized hose applications common in HVAC, plumbing, and general mechanical service work.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge motor for easy field removal and maintenance
• CNC robotically spun and ribbed disc construction with rolled edges for structural strength and hose protection
• Machined zinc-plated steel 90-degree full-flow NPT swivel — no reel dismounting required for seal service or hose swap
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Solid one-piece steel base with single pedestal support post, no weld construction
• CPC powder coat finish with adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed to accept 1/4 inch ID hose with a 9/16 inch OD at up to 25 feet in length. Consult COXREELS P Series documentation for specific hose material and pressure rating compatibility before installation.

Installation Notes

Installation is typically performed by a licensed mechanic, HVAC technician, or plumber depending on the fluid or gas being conveyed. Depressurize and isolate the supply line fully before connecting or disconnecting hose or fittings at the swivel. Mounting hardware must be appropriate for the substrate and rated for the combined weight of the reel, hose, and fluid load. Verify that hose material and pressure rating are compatible with the intended service fluid prior to placing the reel in service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 48 pounds
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255717886

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-125
