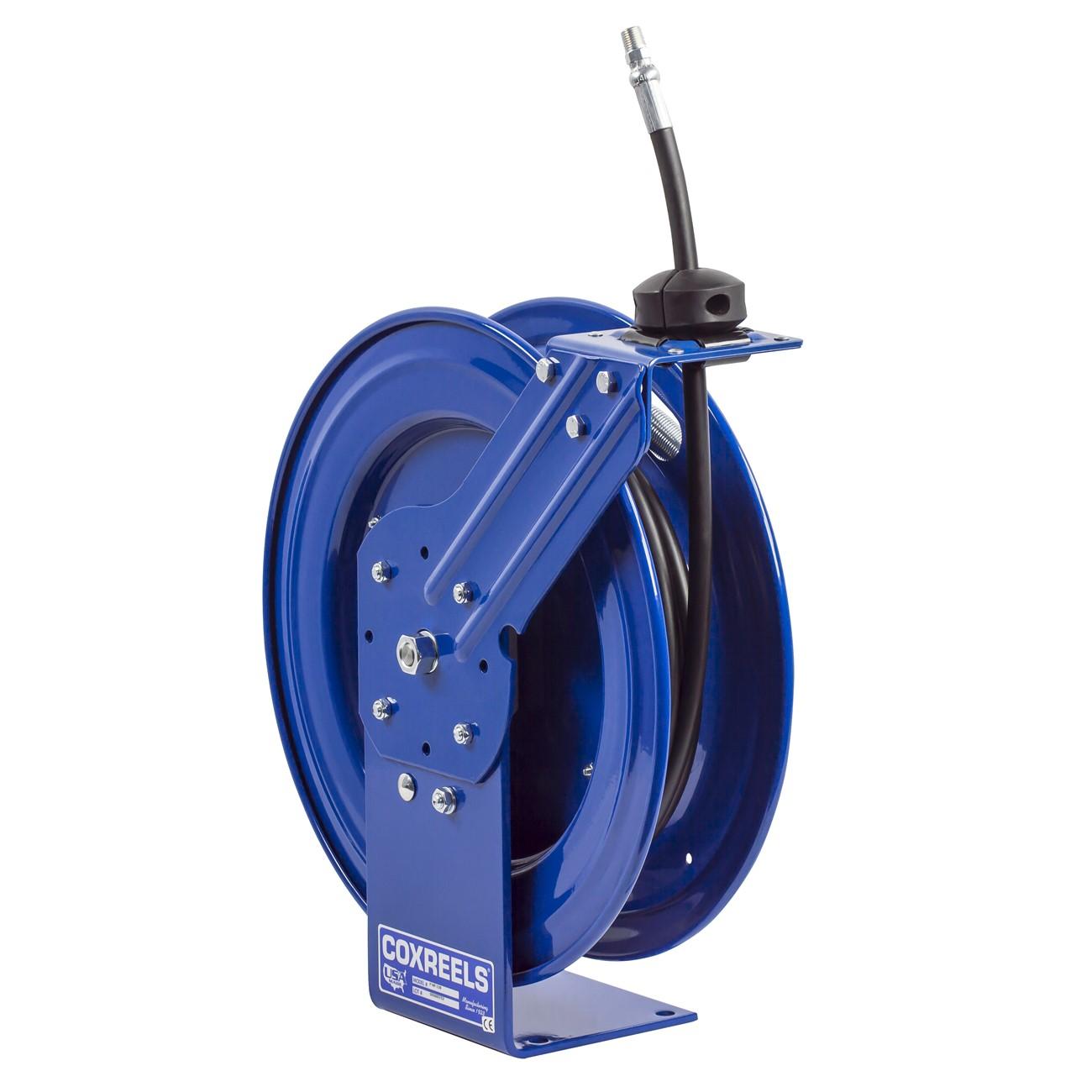

Coxreels P-HP-120 Spring Driven Hose Reel 1/4 in Id 20 Ft

Product Description

The COXREELS P-HP-120 is a spring-driven hose reel from the P Series line, designed for demanding service environments where durability and reliable retraction are required. The reel accepts 1/4-inch ID hose with a 9/16-inch OD and accommodates up to 20 feet of hose length. A cartridge-style motor handles spring retraction, and the unit ships with a multi-position guide arm that supports wall, floor, ceiling, and vehicle mounting. CNC robotically spun and ribbed steel discs with rolled edges give the drum its structural rigidity. Licensed trades and fleet maintenance technicians are the primary installers of this unit.

The P-HP-120 is suited for shop air, hydraulic service lines, and similar high-pressure hose applications in both commercial and light industrial settings. Its compact footprint makes it practical where space is limited, and the single-pedestal steel base provides stable support without requiring welded mounting structures. The unit is equally at home in a service bay, on a maintenance truck, or in a mechanical room.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without dismounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Solid one-piece steel base and support post with no welds for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct installation reel for applications requiring 1/4-inch ID hose service up to 20 feet in length on spring-driven retraction systems.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician familiar with hose reel mounting and high-pressure plumbing connections. Relieve all system pressure and depressurize the hose completely before connecting or disconnecting any fittings. Secure the mounting base to a surface rated for the combined weight of the reel and hose at 46 pounds. Verify that all NPT thread connections are sealed properly before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length Capacity: 20 feet
• Retraction Type: Spring driven
• Swivel Material: Zinc plated steel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 46 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-HP-120
