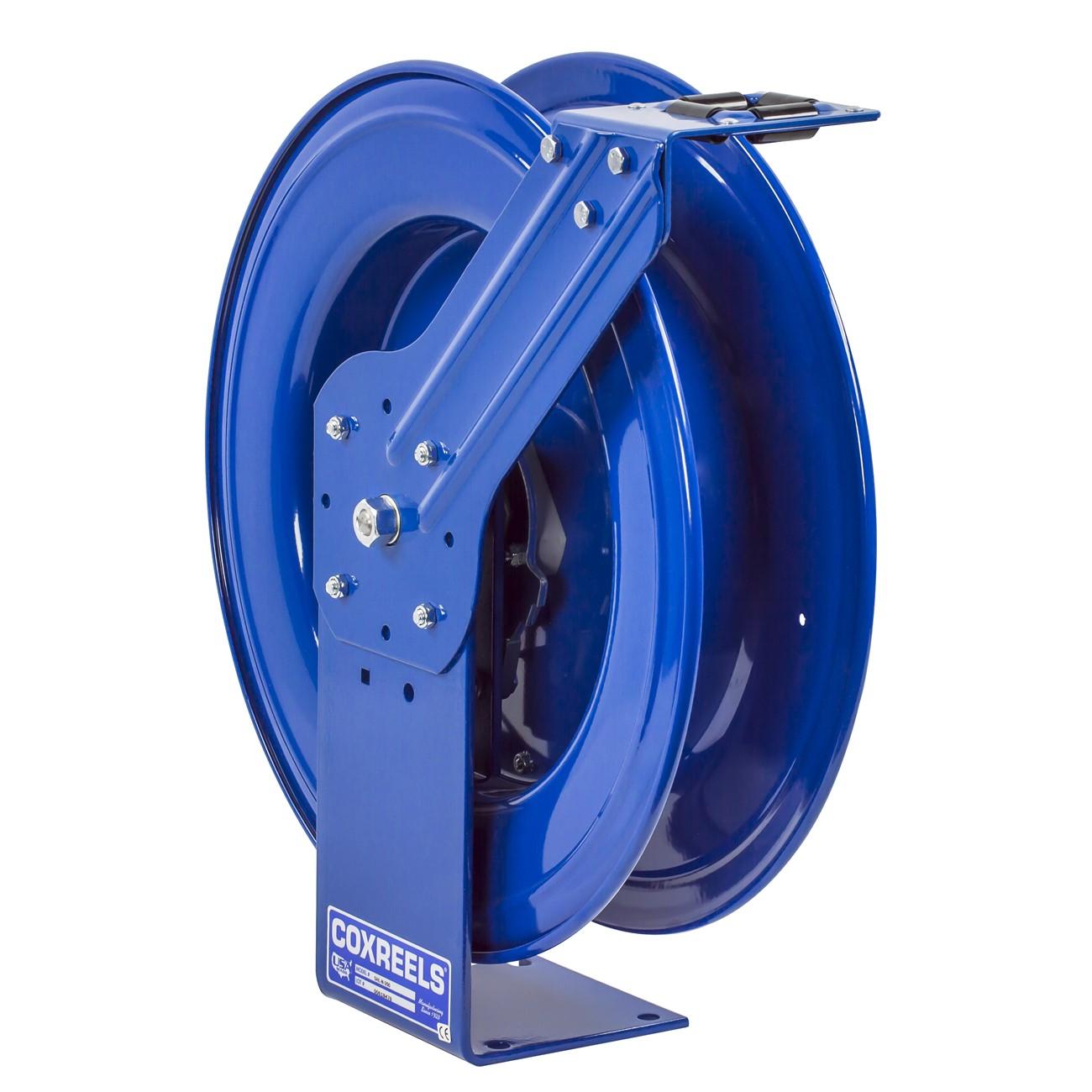

Coxreels MPL-N-535 Spring Driven Hose Reel 3/4 in 35 Ft

Product Description

The COXREELS MPL-N-535 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade environments where consistent hose retrieval and structural durability are required. It accommodates hose with a 3/4 inch ID and 1-1/16 inch OD up to 35 feet in length. The reel features a dual axle support system that increases operational stability, reduces vibration, and reinforces the structural integrity of the frame. A machined solid brass 90-degree full-flow NPT swivel allows quick hose installation and seal maintenance without removing the reel from its mount. Plumbers, HVAC technicians, and industrial service professionals typically install this reel in fixed or vehicle-mounted service setups.

The MPL-N-535 is suited for professional service applications including plumbing, HVAC, industrial fluid transfer, and mobile service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to shop, field, and truck-based installations. The larger SH Series chassis is designed to handle longer hose runs and larger hose diameters compared to standard compact reels, making it a practical choice for high-volume or heavy-use service environments.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for low-maintenance operation and easy removal when service is needed
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal replacement without unmounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection, operator safety, and long-term durability
• Dual axle Super Hub support system reduces vibration and improves frame stability under load
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust for extended service life in harsh environments
• Single-piece steel base with no-weld support post construction for maximum stability without excess weight

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation unit for 3/4 inch ID hose applications up to 35 feet in length across professional plumbing, HVAC, and industrial service setups.

Installation Notes

Installation should be performed by a qualified trades professional familiar with fluid system plumbing and mechanical mounting requirements. Shut off fluid supply and depressurize the hose and supply line before connecting or disconnecting the reel. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and filled hose. Follow applicable local codes and manufacturer guidelines for hose fittings, thread sealant, and swivel torque procedures.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/16 inch
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: Steel, single-piece no-weld construction
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• UPC: 674255726635

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPL-N-535
