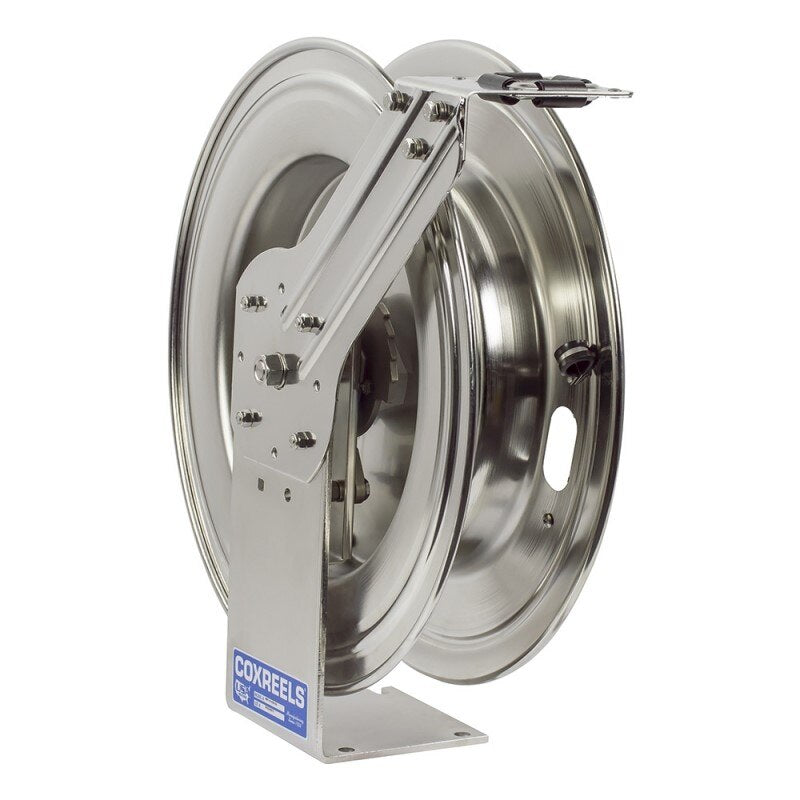

Coxreels MPL-N-450-SS Stainless Steel Hose Reel 50 Ft

Product Description

The COXREELS MPL-N-450-SS is a spring-driven, stainless steel hose reel from the MP-SS Series, designed for applications where corrosion resistance and cleanliness are critical. The reel accepts 1/2 inch ID hose with a 13/16 inch OD up to 50 feet in length and is constructed from electro-polished stainless steel throughout, including the fluid path. The spring retraction mechanism allows hands-free hose retrieval after each use. This reel is installed by plumbing, facilities maintenance, and industrial service professionals who require a durable, non-corrosive dispensing solution in demanding environments.

The MPL-N-450-SS is suited for food and chemical processing facilities, marinas, car washes, and any environment where rust, corrosion, or contamination are ongoing concerns. The stainless steel construction makes it appropriate for both indoor and outdoor use in wet or chemically aggressive settings. It is designed for wall, floor, ceiling, or vehicle mounting, giving installers flexibility across a wide range of service configurations. The single-pedestal base supports stable, permanent installation in fixed service bays or mobile units.

Key Features

• Electro-polished stainless steel construction throughout for non-corrosive, contamination-resistant performance
• Spring-driven retraction with enclosed, cartridge-style motor that is removable for maintenance without disassembling the reel
• Machined stainless steel 90-degree full-flow NPT swivel inlet with external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Solid one-piece stainless steel base and support post, no-weld construction, with dual axle support system

Compatibility

Designed for use with 1/2 inch ID, 13/16 inch OD hose up to 50 feet in length. Consult hose reel inlet and outlet specifications to confirm fitting compatibility before installation.

Installation Notes

Installation is typically performed by a licensed plumber or qualified industrial maintenance technician. Shut off fluid supply and relieve all line pressure before connecting or disconnecting the reel. Mounting hardware must be appropriate for the substrate and rated to support the reel weight plus the loaded hose. Verify NPT thread engagement and use appropriate thread sealant compatible with the fluid being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds
• UPC: 674255717855

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPL-N-450-SS
