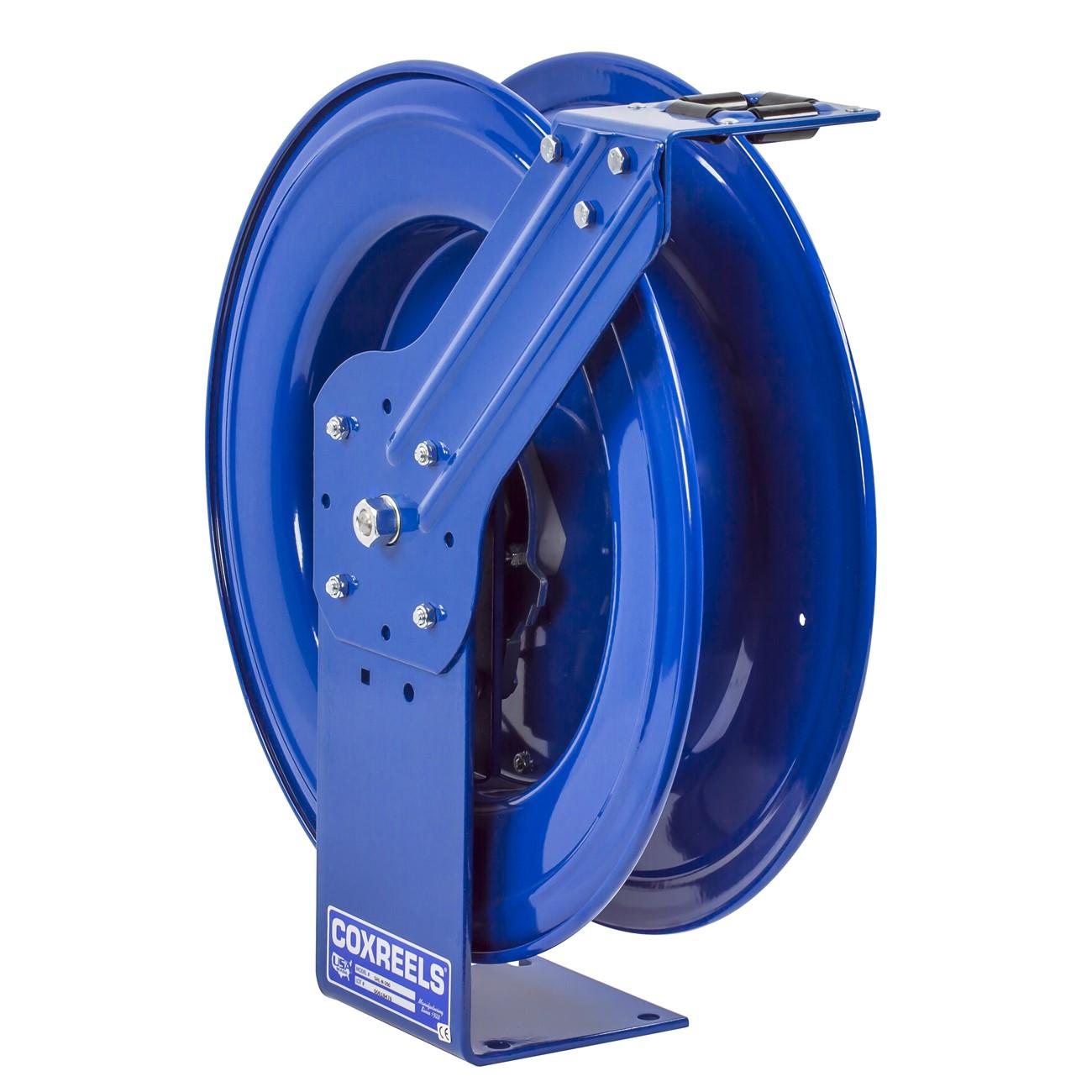

Coxreels MPL-N-450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS MPL-N-450 is a spring-driven hose reel from the SH Series, designed for demanding industrial and trade applications. It features a solid steel construction with a heavy-duty single-pedestal base and CNC robotically spun ribbed discs with rolled edges for structural durability and hose protection. The reel accommodates 1/2 inch ID hose up to 50 feet in length and weighs 53 pounds. A dual axle support system reduces vibration and increases stability during operation. Licensed plumbers, HVAC technicians, and industrial service professionals install and operate this reel in fixed and vehicle-mounted service environments.

The MPL-N-450 is suited for stationary and mobile service setups in commercial and industrial environments. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to shop bays, service trucks, and maintenance facilities. The enclosed, lubricated cartridge-style motor allows safe removal for maintenance without disassembling the full reel assembly. The machined brass 90-degree full-flow NPT swivel permits hose installation and seal service without removing the reel from its mount.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy field maintenance
• Machined solid brass 90-degree full-flow NPT swivel for fast hose installation and seal access
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece steel base and support post construction with no welds for maximum stability
• Dual axle support system reduces vibration and increases structural integrity during operation
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish rated for chip resistance and rust inhibition with permanently lubricated precision bearings

Compatibility

Designed for use with 1/2 inch ID, 13/16 inch OD hose up to 50 feet in length. Part of the COXREELS SH Series spring-driven reel platform.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements for the intended surface type. Depressurize and disconnect all fluid supply lines before servicing the swivel, motor cartridge, or hose connections. Mounting hardware must be appropriate for the substrate and rated for the combined weight of the reel and charged hose. Consult applicable facility or vehicle safety codes when mounting in mobile service configurations.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 13/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Base Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPL-N-450
