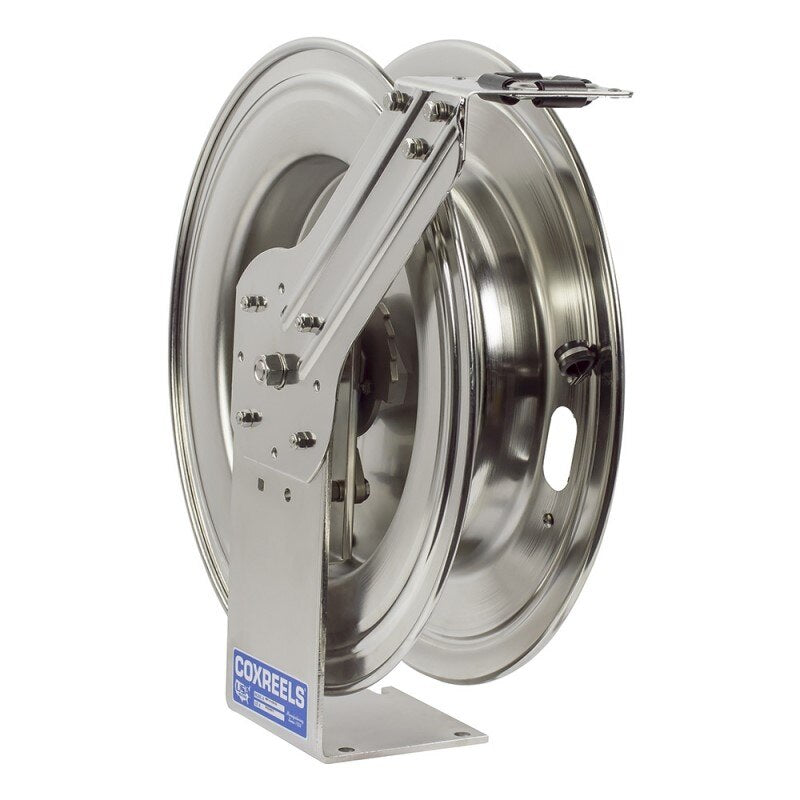

Coxreels MPL-N-350-SS Stainless Steel Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS MPL-N-350-SS is a spring-driven, electro-polished stainless steel hose reel designed for demanding environments where corrosion, contamination, and rust are persistent concerns. It accepts 3/8-inch ID hose up to 50 feet in length and is built around a fully stainless steel fluid path. The enclosed cartridge-style spring motor is lubricated and removable without disassembling the reel, making field maintenance straightforward. At 53 pounds, the unit is a heavy-duty option for fixed installations in facilities or fleet service bays. Licensed plumbing or mechanical contractors typically handle permanent installations in process or marine environments.

This reel is suited for food and chemical processing facilities, marinas, car washes, and any location where exposure to moisture, salt air, chemicals, or sanitation requirements rule out standard steel reels. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, providing flexibility across service configurations. The single-pedestal stainless steel base and support post are constructed without welds, using a solid one-piece design that delivers stability without excess weight.

Key Features

• Electro-polished stainless steel construction throughout fluid path for non-corrosive, contamination-resistant performance
• Enclosed, lubricated cartridge-style spring motor is removable for safe and convenient maintenance without full reel disassembly
• Machined stainless steel 90-degree full-flow NPT swivel inlet on external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece stainless steel base and support post, no-weld construction, with dual axle support system
• Multi-position stainless steel guide arm compatible with wall, floor, ceiling, and vehicle mounting orientations

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS MP-SS series, accommodating 3/8-inch ID hose up to 50 feet in length with standard NPT inlet connections.

Installation Notes

Installation is typically performed by a licensed plumbing or mechanical contractor. Shut off fluid supply and depressurize the line completely before mounting or connecting the reel. Secure the base to a structural surface capable of supporting the reel weight plus hose and fluid load. Consult applicable plumbing codes and manufacturer torque guidelines for NPT fittings before final connection.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Weight: 53 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPL-N-350-SS
