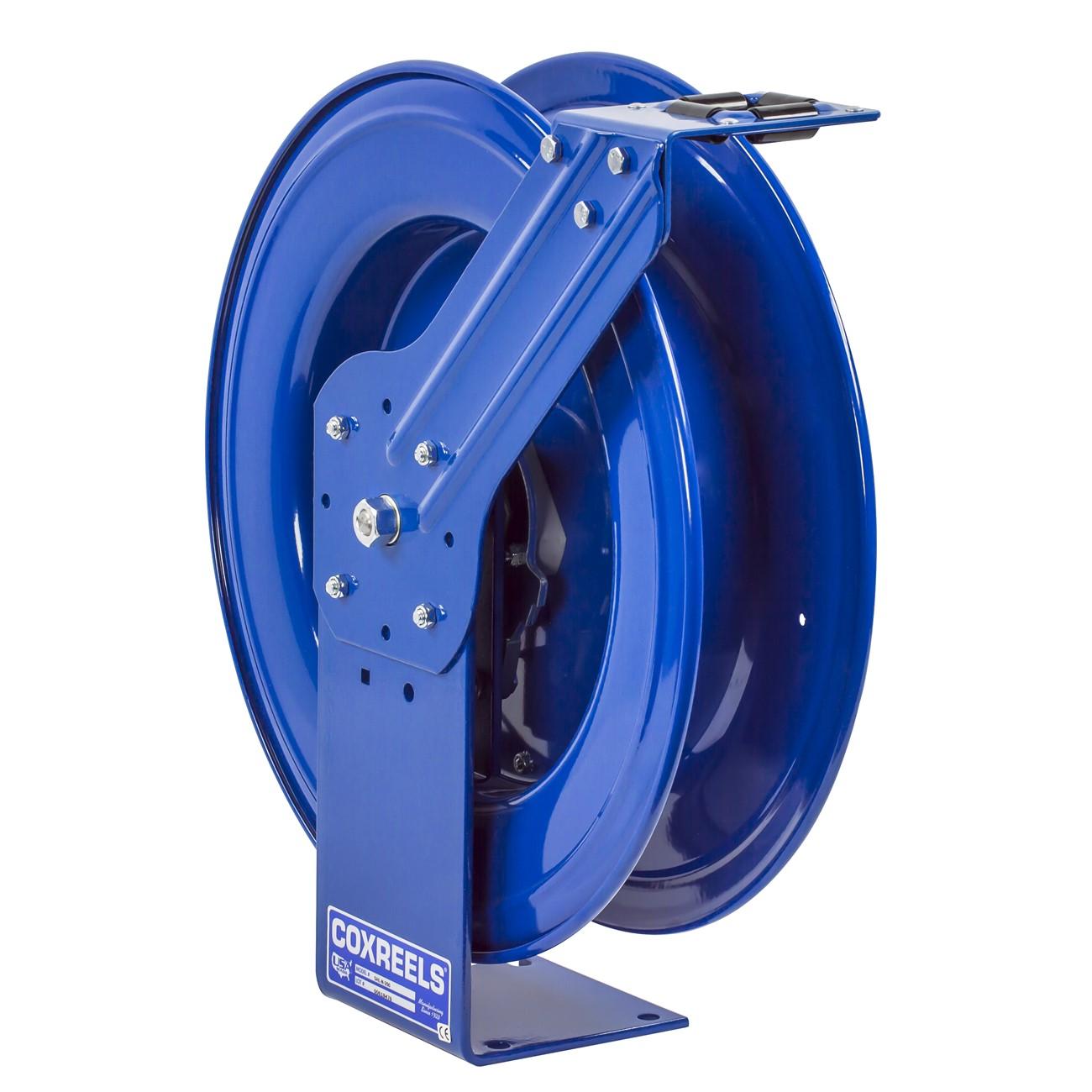

Coxreels MPL-N-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS MPL-N-350 is a spring-driven hose reel from the SH Series (Super Hub) line, built for demanding trade and industrial applications. It accommodates 3/8-inch ID hose up to 50 feet in length and is constructed with a steel chassis and frame sized for longer hose runs and larger diameters. The dual-axle Super Hub support system reduces vibration, improves stability during operation, and reinforces the structural integrity of the reel. A CNC robotically spun and ribbed disc design with rolled edges protects the hose and the operator. A permanently lubricated precision bearing system and CPC powder-coat finish support long service life in shop, fleet, and field environments.

The MPL-N-350 is suited for shop air, lubrication, and fluid service applications in commercial garages, fleet maintenance facilities, and industrial service bays. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of installation layouts. Licensed plumbers, mechanics, and fluid-system technicians commonly specify this reel for stationary service points where reliable hose retraction and consistent flow are required. Its single-pedestal steel base installs without welding, simplifying mounting to most standard surfaces.

Key Features

• Spring-driven retraction with cartridge-style motor that is removable for maintenance without special tools
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Super Hub dual-axle support system reduces vibration and improves structural stability under load
• Heavy-duty CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• Single-pedestal steel base with no-weld design for maximum stability without excess weight
• CPC powder-coat finish resists chips and rust for long-term durability in shop environments

Compatibility

Designed as an OEM-style spring-driven reel replacement or new installation for 3/8-inch ID hose systems in commercial and industrial fluid service applications.

Installation Notes

Installation should be performed by a qualified mechanic or plumbing technician familiar with fluid distribution systems. Depressurize and drain the hose and supply line completely before connecting or disconnecting fittings. Secure the mounting base to a structurally sound surface using fasteners rated for the reel weight and application load. Verify that all NPT swivel connections are properly sealed and that the guide arm position does not create kinks or sharp bends in the hose under full extension.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Unit Length: 20.5 inches
• Unit Width: 10.5 inches
• Unit Height: 22 inches
• Weight: 53 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPL-N-350
