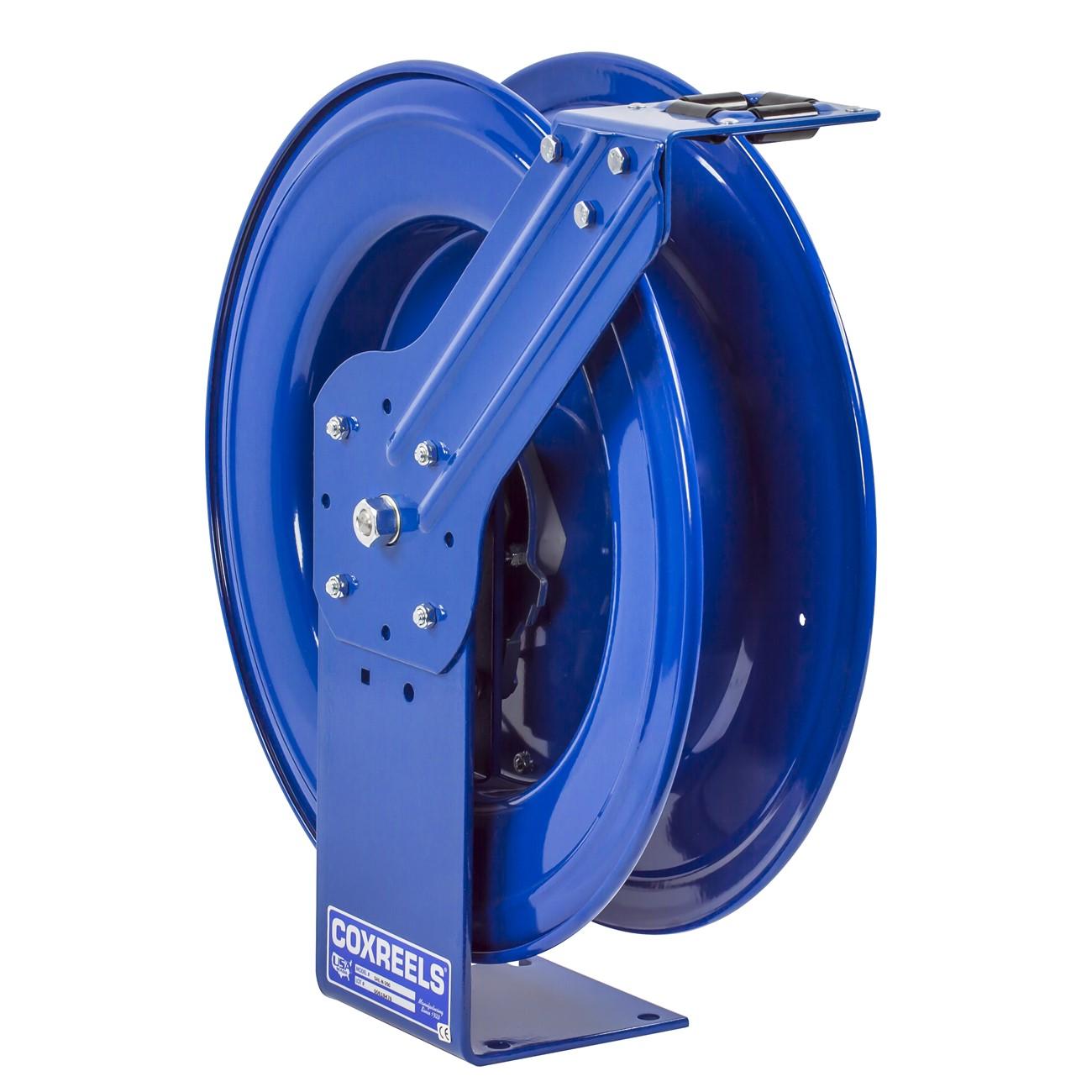

Coxreels MPDL-N-430 Dual Hydraulic Hose Reel

Product Description

The COXREELS MPDL-N-430 is a dual hydraulic hose reel from the MPD Series, built for industrial and mobile hydraulic applications that require separate supply and return lines on a single reel. It accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, with a 30 foot hose capacity. The reel features a spring-driven retraction mechanism rated to 3,000 PSI and is designed for service up to 50 feet in spring-driven configurations. Licensed hydraulic technicians and heavy equipment service professionals are the primary installers for this unit.

The MPDL-N-430 suits demanding dual hydraulic service environments including construction equipment maintenance bays, agricultural equipment service, and mobile service vehicles. The one-side supply and return hookup simplifies plumbing in tight spaces. The multi-position guide arm allows mounting to walls, floors, ceilings, and vehicle structures, making it adaptable across shop and field installations.

Key Features

• Dual hydraulic design with one-side supply and return hookup for simplified plumbing
• External fluid path with dual port melanized 90-degree full-flow NPT swivel — no need to remove reel from mount for seal maintenance
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position aluminum guide arm compatible with wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish — chip resistant and rust inhibiting for long service life
• Permanently lubricated precision bearings and enclosed cartridge-style motor for low-maintenance operation

Compatibility

Designed for dual hydraulic hose applications accepting 1/2 inch inner diameter hose with 13/16 inch outer diameter, with a 30 foot hose capacity and spring-driven retraction up to 3,000 PSI.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial maintenance professional. Depressurize and bleed all hydraulic lines fully before disconnecting or connecting hose reel supply and return ports. Verify mounting surface load capacity before fastening the pedestal base. Follow applicable OSHA and equipment manufacturer guidelines for hydraulic system service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 30 feet
• Maximum Working Pressure (Spring Driven): 3,000 psi
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 62 pounds
• Base Material: Steel
• Finish: CPC Powder Coat
• UPC: 674255724761

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPDL-N-430
