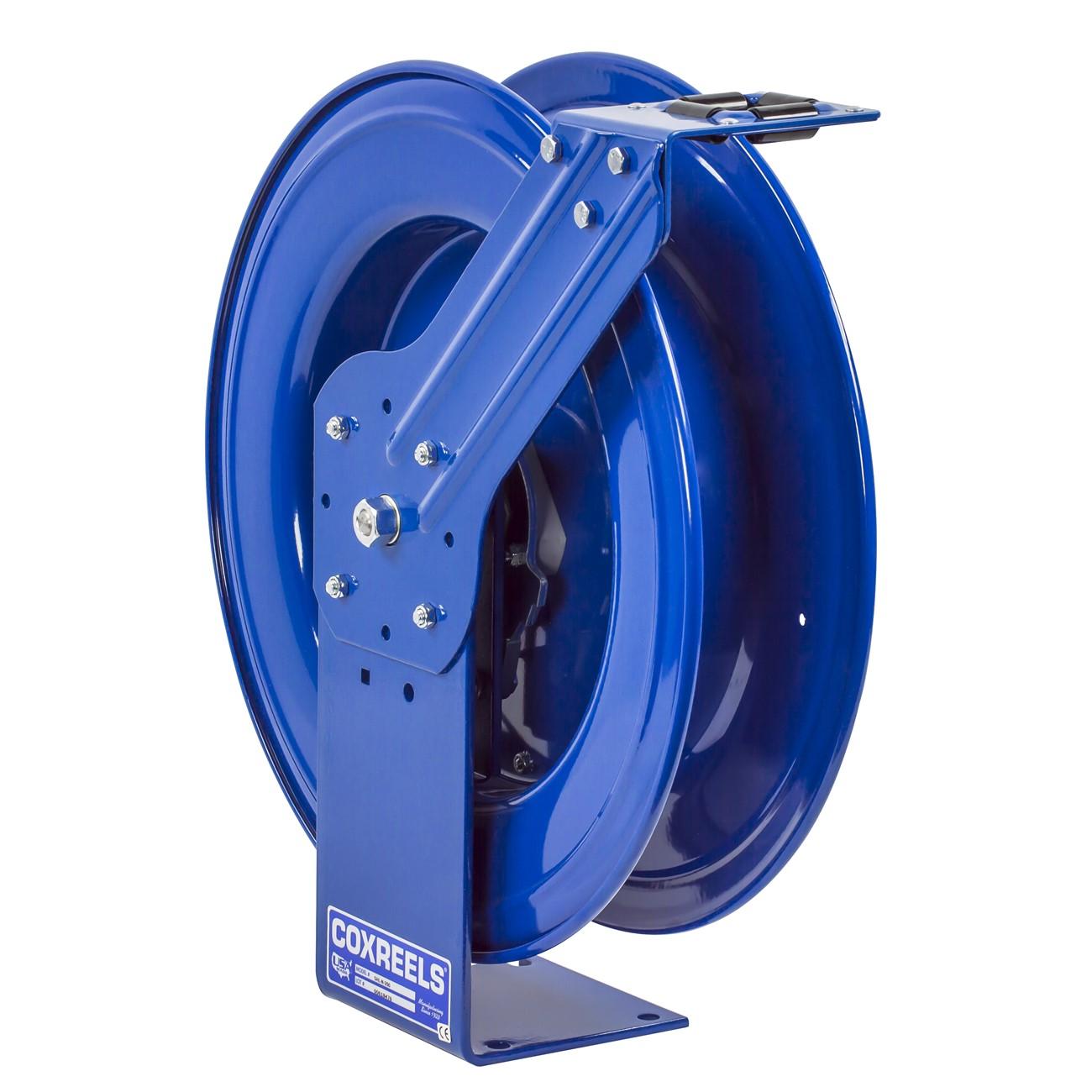

Coxreels MPDL-N-330 Dual Hydraulic Hose Reel

Product Description

The COXREELS MPDL-N-330 is a dual hydraulic hose reel built for demanding fluid transfer applications in industrial and mobile service environments. Part of the MPD Series, this reel is engineered to handle dual hydraulic circuits with a spring-driven retraction design rated up to 3,000 psi. It accommodates a 3/8 inch inner diameter hose up to 30 feet in length. The unit weighs 62 pounds and measures 22.25 inches long, 12.75 inches wide, and 23.75 inches tall. Installation is handled by licensed mechanics, hydraulic technicians, and mobile equipment service professionals.

This hose reel is suited for mobile service rigs, shop floors, and fixed service bays where dual hydraulic line management is required. The one-side supply and return hookup simplifies plumbing in tight or vehicle-mounted installations. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of commercial and industrial setups. Its heavy-duty CNC spun discs and rolled edges protect the hose during repeated retraction cycles under working pressure.

Key Features

• Spring-driven retraction rated to 3,000 psi for dual hydraulic circuit applications
• External fluid path with dual port melanized 90-degree full-flow NPT swivel for simplified seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Single pedestal design with solid one-piece steel base and support post, no weld construction, featuring dual axle support
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and corrosion inhibition
• Permanently lubricated precision bearings for long service life

Compatibility

Designed for use with 3/8 inch inner diameter dual hydraulic hose up to 30 feet in length. Suitable for industrial and mobile service applications requiring dual-circuit hydraulic line management at spring-retraction pressures up to 3,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed mechanic familiar with high-pressure fluid systems. Depressurize and bleed all hydraulic lines completely before connecting or disconnecting any hose reel fittings. Verify that mounting hardware and surface are rated for the combined weight of the reel, hose, and fluid load. Follow applicable hydraulic equipment safety standards and the equipment manufacturer guidelines for final connections and pressure testing.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Maximum Hose Length: 30 feet
• Maximum Working Pressure (Spring Retraction): 3,000 psi
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 62 pounds
• UPC: 674255724648

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPDL-N-330
