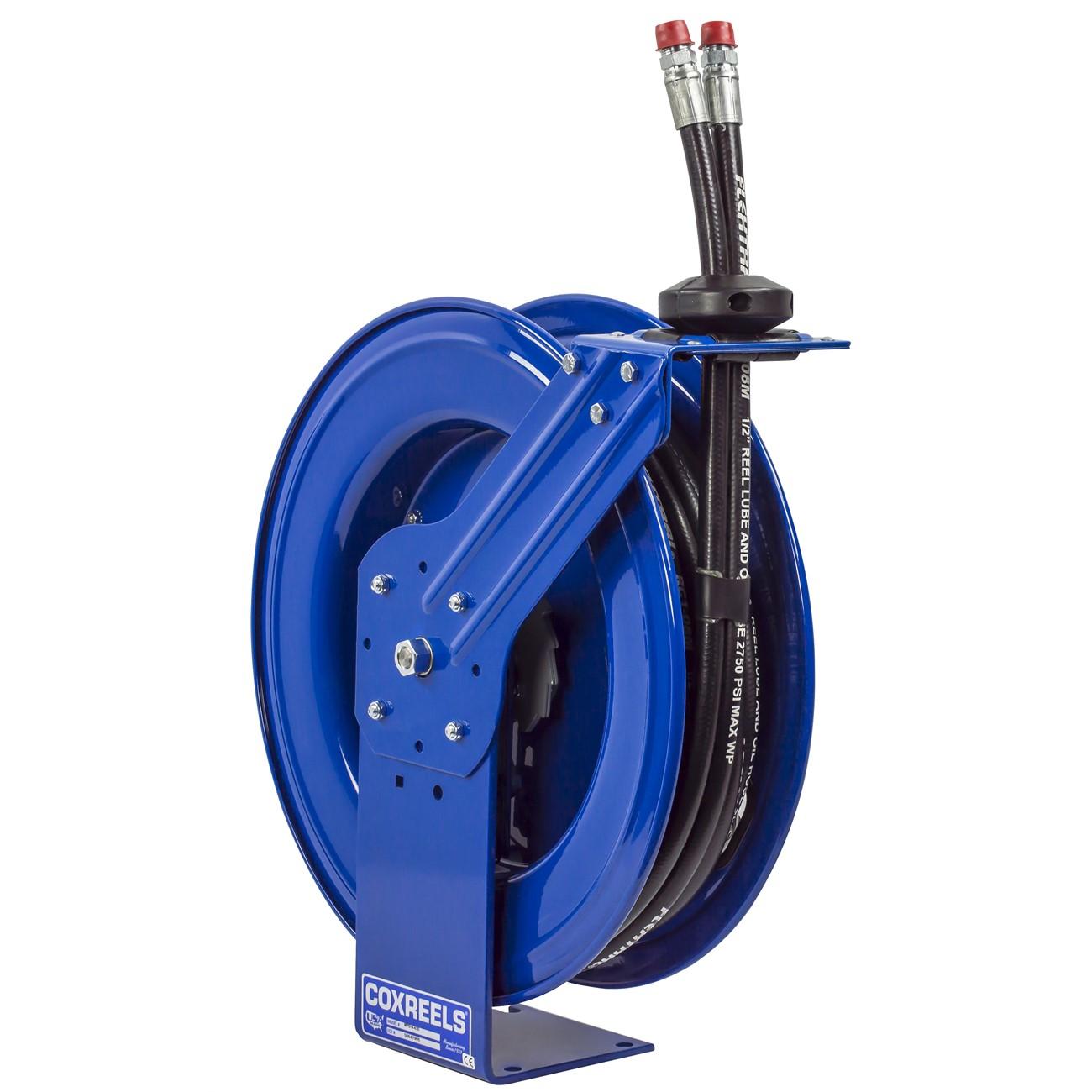

Coxreels MPD-N-430 Dual Hydraulic Hose Reel 30 Ft

Product Description

The COXREELS MPD-N-430 is a spring-driven dual hydraulic hose reel built for demanding industrial and mobile hydraulic service applications. It accepts 1/2 inch ID hose with a 13/16 inch OD and handles up to 30 feet of hose at working pressures up to 3,000 psi. The unit features CNC robotically spun and ribbed steel discs with rolled edges for structural rigidity and operator safety. A permanently lubricated external swivel with dual-port 90-degree full-flow NPT fittings allows seal maintenance and hose replacement without removing the reel from its mount. Licensed hydraulic technicians and mobile equipment service professionals are the primary installers of this unit.

The MPD-N-430 is designed for dual hydraulic hose management in industrial facilities, service vehicles, and heavy equipment maintenance environments. The spring-driven retraction mechanism keeps hose organized and off the floor during active service work. The multi-position aluminum guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel well suited for both fixed shop installations and truck-mounted service rigs. One-side supply and return hookup simplifies plumbing routing in tight installations.

Key Features

• Spring-driven retraction rated to 3,000 psi and up to 50 feet of hose capacity
• External dual-port melanized 90-degree full-flow NPT swivel for seal access without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post, no-weld single pedestal design with exclusive Super Hub dual axle support
• Multi-position aluminum guide arm mounts to wall, floor, ceiling, or vehicle
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included

Compatibility

The MPD-N-430 belongs to the COXREELS MPD Series of dual hydraulic hose reels, designed for use with 1/2 inch ID hydraulic hose at pressures up to 3,000 psi in spring-retractable configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or journeyman mechanic familiar with high-pressure hydraulic systems. Depressurize and isolate the hydraulic circuit completely before connecting or disconnecting hose at the swivel ports. Verify all NPT thread connections are sealed with appropriate hydraulic thread sealant and torqued per the fitting manufacturer specification. Mounting hardware must be rated for the combined weight of the reel and fully loaded hose; consult applicable equipment mounting codes for vehicle installations.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length Capacity: 30 ft
• Maximum Working Pressure: 3,000 psi
• Retraction Type: Spring driven
• Swivel Type: Dual-port 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Steel, single pedestal no-weld construction
• Guide Arm Material: Aluminum, multi-position
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 79 pounds
• UPC: 674255726499

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MPD-N-430
