Coxreels MP-N-535 Spring Driven Hose Reel 3/4 in 35 Ft

Product Description

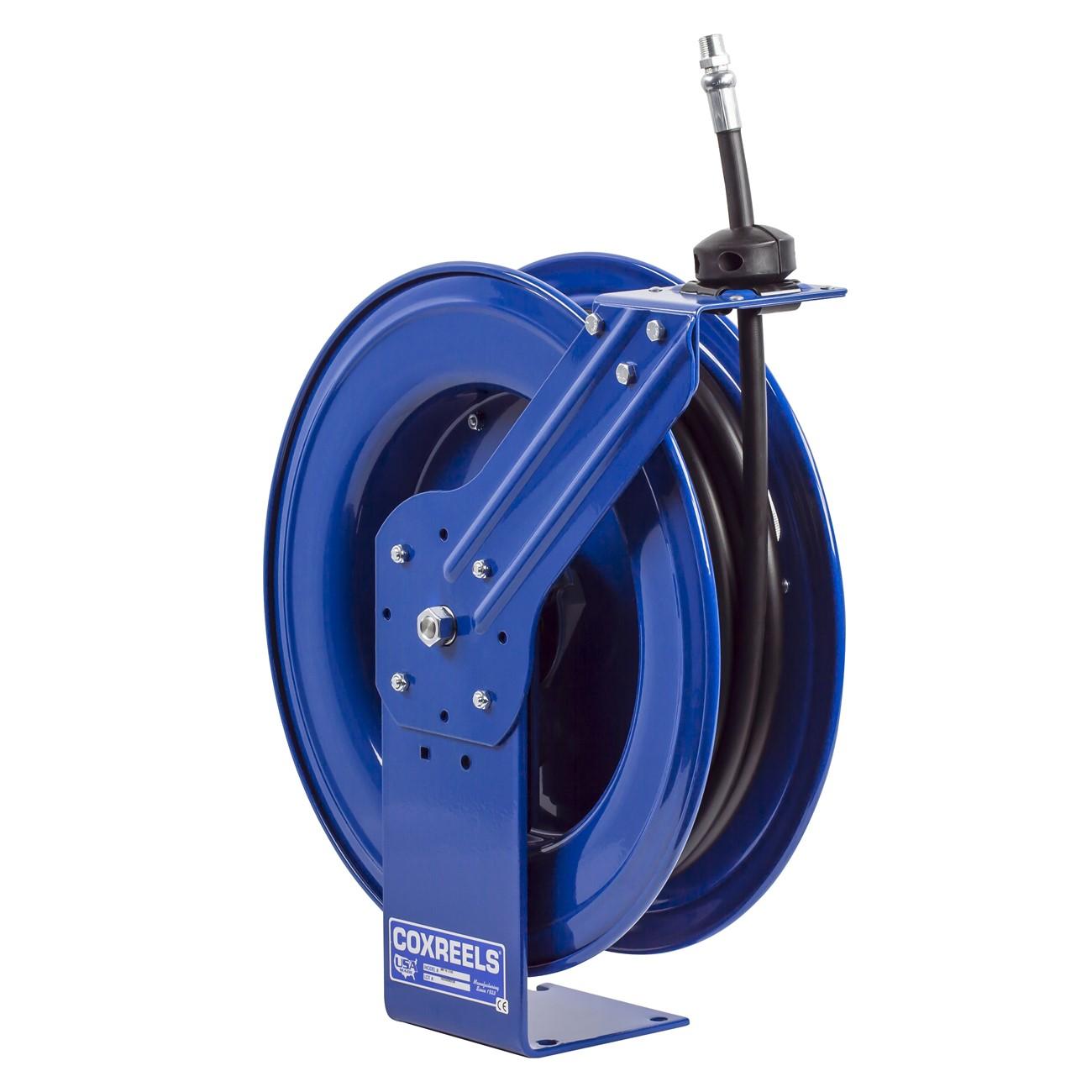

The COXREELS MP-N-535 is a spring-driven hose reel in the SH Series Super Hub line, built for heavy-duty fluid transfer applications in industrial and commercial service environments. The reel features a larger chassis and frame than standard models, accommodating longer hose lengths and larger hose diameters. A dual axle support system — called the Super Hub design — reduces vibration, improves stability during operation, and strengthens the overall structural integrity of the reel. It accepts 3/4 inch ID hose up to 35 feet in length and ships as a single unit weighing 68 pounds. Licensed trades and service contractors are the primary installers.

The MP-N-535 is suited for stationary and mobile service setups including wall, floor, ceiling, and vehicle mount configurations. The multi-position guide arm adjusts to accommodate each of these mounting orientations without requiring additional hardware changes. Typical applications include fluid delivery, washdown, and general hose management in workshops, service bays, and fleet maintenance environments. The spring-driven retraction mechanism returns the hose automatically after use, reducing handling time during repetitive service tasks.

Key Features

• Spring-driven retraction with automatic hose return after use
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and fully removable for in-place maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal solid one-piece steel base and support post — no weld construction — for maximum stability without excess weight
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID hose up to 35 feet in length. Consult COXREELS SH Series application data to confirm hose diameter, working pressure, and fluid compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system hose reels. Shut off all fluid supply and depressurize the hose line completely before mounting or servicing the reel. Secure all mounting fasteners to the rated capacity of the mounting surface for the specified reel weight. Follow applicable facility safety codes and manufacturer torque guidance for swivel fittings and mounting hardware.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Frame Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 68 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-535
