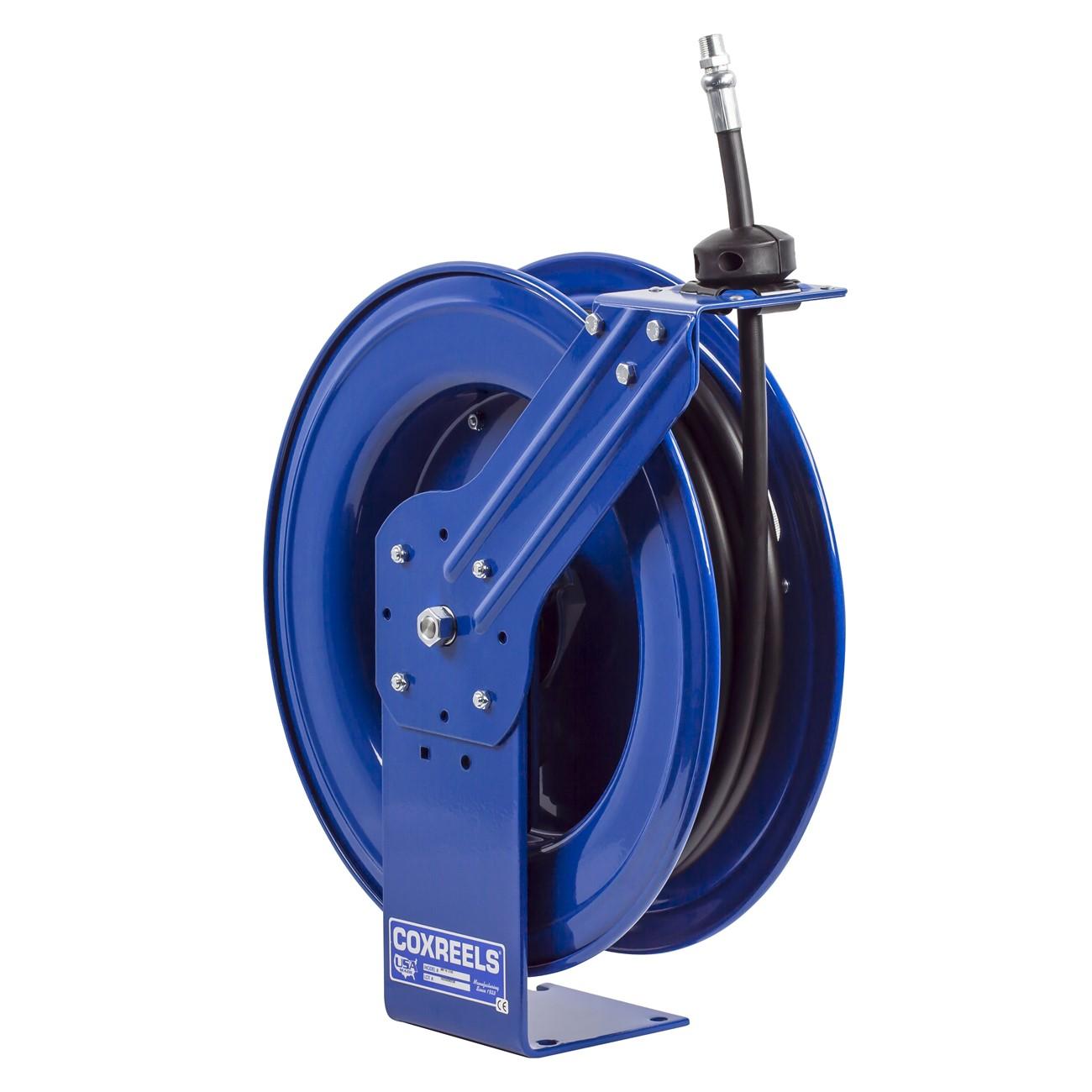

Coxreels MP-N-525 Spring Driven Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS MP-N-525 is a spring-driven hose reel from the SH Series, designed for heavy-duty industrial and commercial applications. It features a solid steel construction with a single-pedestal base and dual-axle hub support system that reduces vibration and improves structural stability during operation. The reel accepts 3/4 inch ID hose up to 25 feet in length and is built for repeated daily use in demanding environments. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal servicing without removing the reel from its mount. Licensed HVAC technicians, plumbers, and industrial service professionals are the primary installers.

The MP-N-525 is suited for stationary and mobile service applications including wall, floor, ceiling, and vehicle mounting configurations. Its multi-position guide arm adjusts to accommodate varied mounting orientations, making it a practical choice for service vans, shop installations, and facility maintenance setups. The enclosed cartridge-style spring motor simplifies field maintenance by allowing removal without disturbing the reel mount. The CPC powder coat finish provides chip resistance and rust inhibition for long service life in shop and outdoor environments.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy field maintenance
• Machined solid brass 90-degree full-flow NPT swivel — serviceable without removing reel from mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction, with exclusive dual-axle hub support system
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID hose up to 25 feet in length. Suitable for fluid transfer, air, and similar service applications where a spring-driven steel hose reel is specified.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and applicable safety codes. Shut off fluid supply and relieve system pressure before connecting or disconnecting hose. Secure the reel to a structurally adequate surface using appropriately rated fasteners for the chosen mounting orientation. Verify NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Type: Machined brass 90-degree full-flow NPT
• Base Material: Steel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• Finish: CPC powder coat
• UPC: 674255726604

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-525
