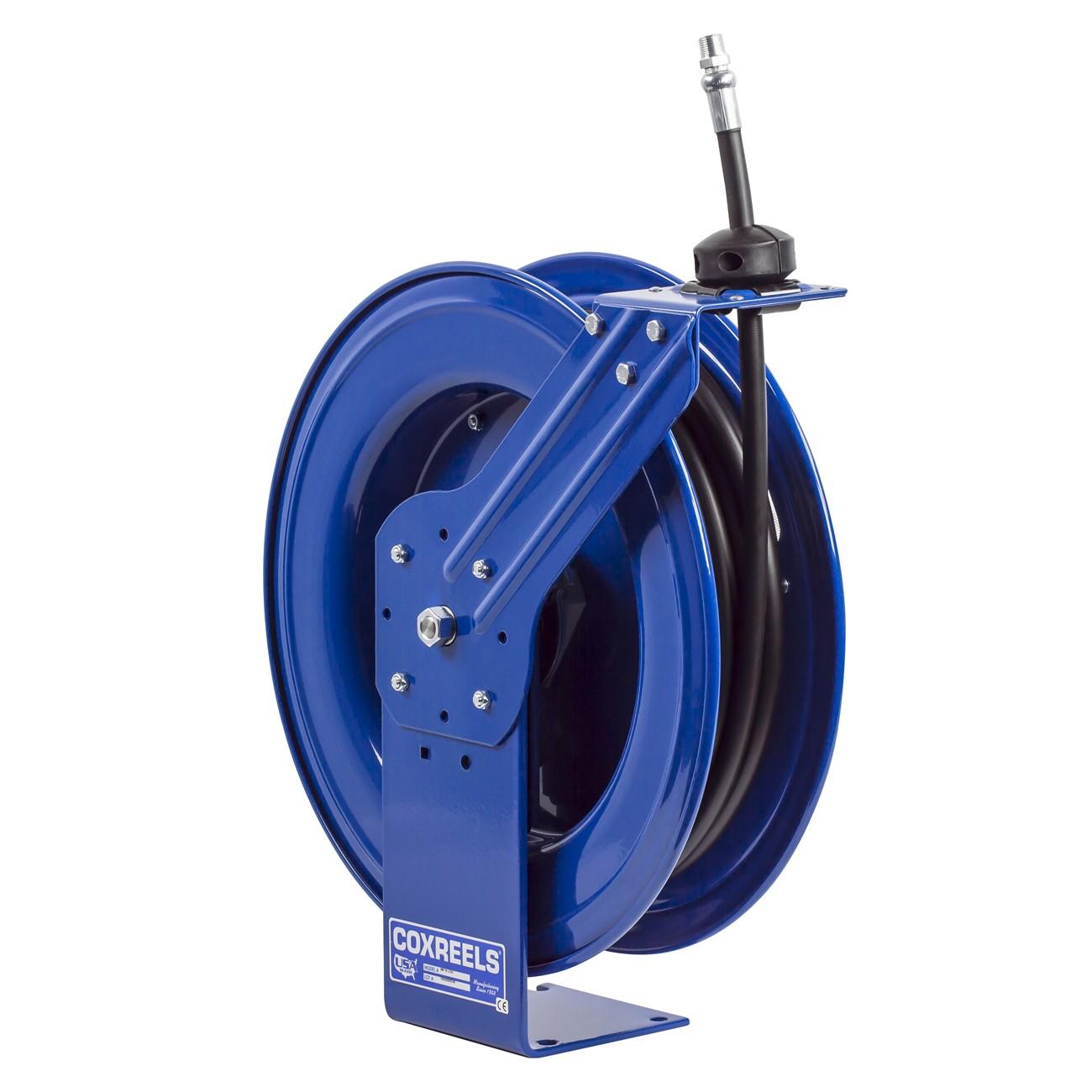

Coxreels MP-N-440 Spring Driven Hose Reel 1/2 in 40 Ft

Product Description

The COXREELS MP-N-440 is a spring-driven hose reel from the SH Series, built for demanding trade applications where reliable hose retraction and structural durability are required. The reel features a dual axle Super Hub support system that reduces vibration and increases frame stability during operation. Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect the hose and improve operator safety. Designed for 1/2 inch ID hose up to 40 feet in length, this unit is constructed with a steel chassis and finished in a chip-resistant, rust-inhibiting CPC powder coat. Licensed plumbers, pipefitters, and industrial mechanics typically specify this reel for high-cycle service environments.

The MP-N-440 suits commercial and industrial installations where longer hose lengths and larger hose diameters are required. Its larger chassis and frame set it apart from standard compact reels, making it appropriate for shop air, water service, and fluid transfer lines in facilities, service bays, and fleet maintenance settings. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, providing flexibility across a wide range of installation configurations.

Key Features

• Spring-driven retraction with dual axle Super Hub system for reduced vibration and improved structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient field maintenance
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Single pedestal steel base with no-weld support post for maximum stability without excess weight
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed to accept 1/2 inch ID, 13/16 inch OD hose up to 40 feet in length. Part of the COXREELS SH Series platform, which shares design lineage with the P Series spring-driven reel family.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with fluid or air distribution systems. Depressurize and bleed the supply line fully before connecting or disconnecting any hose or fitting. Confirm the mounting surface and fastener rating are adequate for the combined weight of the reel and a fully loaded hose. Follow applicable facility codes and manufacturer torque guidelines for all NPT threaded connections.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 40 feet
• Drive Type: Spring driven
• Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 62 pounds
• UPC: 674255717695

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-440
