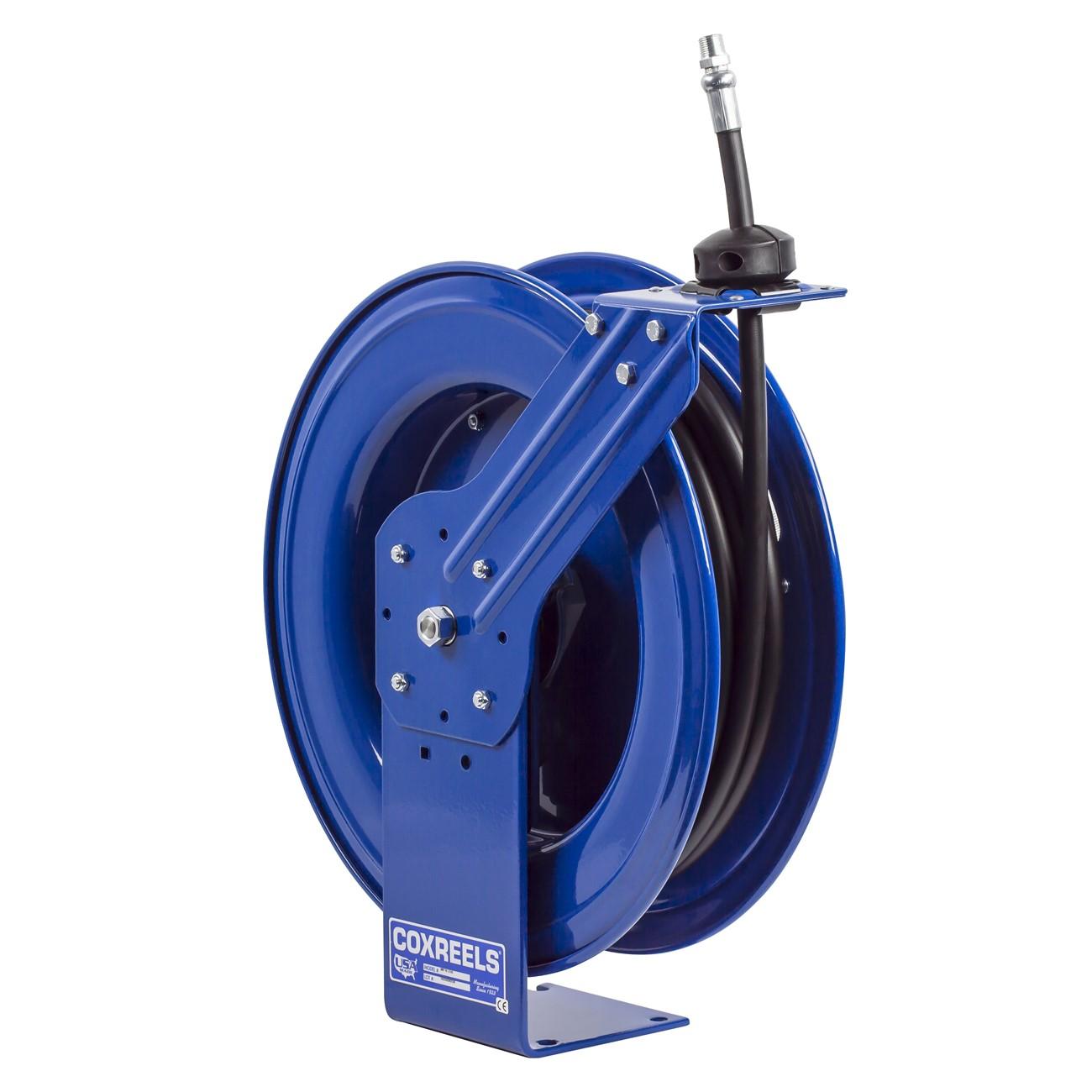

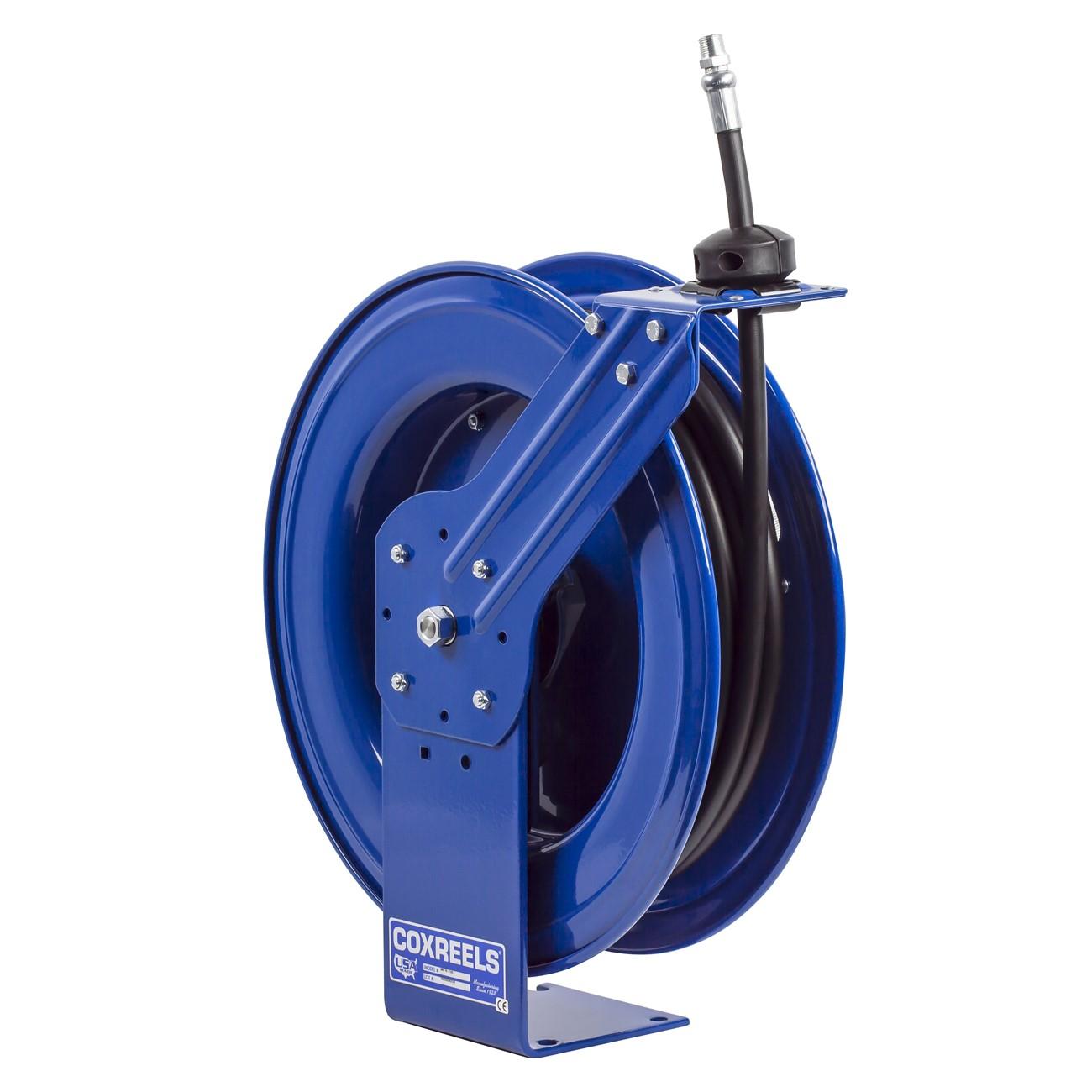

Coxreels MP-N-435 Spring Driven Hose Reel 1/2 in 35 Ft

Product Description

The COXREELS MP-N-435 is a spring-driven hose reel from the SH Series, designed for industrial and commercial hose management applications. Built on a larger chassis and frame than the standard P Series, this reel accommodates longer hose lengths and larger hose diameters with added structural rigidity. The unit features a solid one-piece steel base and COXREELS exclusive dual axle support system, which reduces vibration and improves stability during operation. The machined brass 90-degree full-flow NPT swivel allows for straightforward seal maintenance without removing the reel from its mount. Installation and ongoing service are handled by licensed trade professionals in workshop, fleet, and industrial service environments.

The MP-N-435 is suited for use in fixed and vehicle-mounted configurations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making this reel adaptable to a range of service bays, maintenance facilities, and mobile service setups. The spring-driven retraction mechanism keeps hose under controlled tension and supports efficient workflow in high-use environments. The reel accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, with a working hose length of 35 feet.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel supports seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for spring-driven hose reel applications accepting 1/2 inch ID hose with a 13/16 inch OD up to 35 feet in length.

Installation Notes

Installation is typically performed by qualified maintenance or service technicians. Before mounting or servicing, ensure all pressure is relieved from the hose and supply line. The guide arm should be positioned and secured according to the mounting surface type prior to connecting the supply swivel. Consult applicable workplace safety codes and equipment manufacturer guidelines when installing in mobile or overhead configurations.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Base Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255717688

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-435
