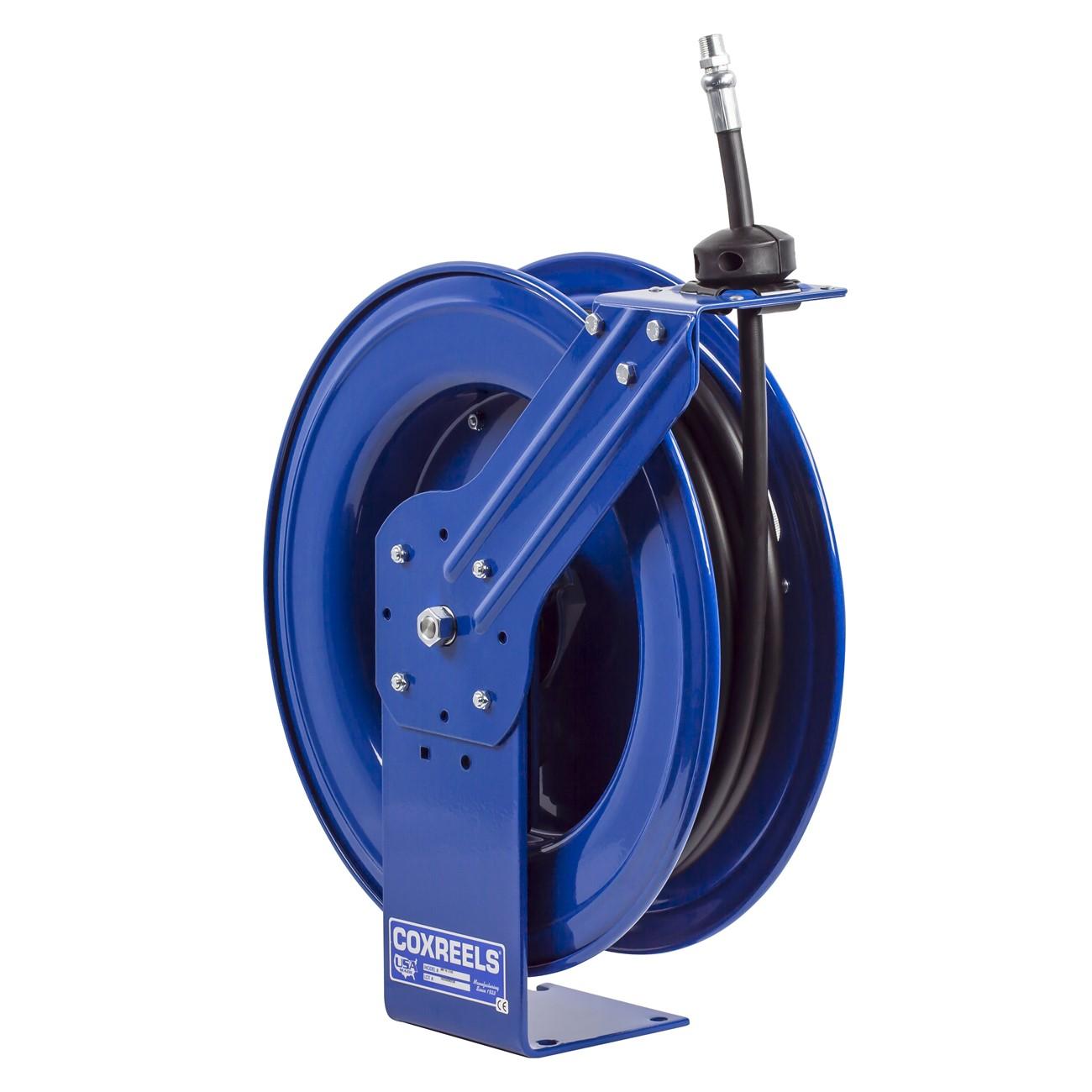

Coxreels MP-N-340 Spring Driven Hose Reel 3/8 in 40 Ft

Product Description

The COXREELS MP-N-340 is a spring-driven hose reel in the SH Series Super Hub line, built for demanding trade applications where reliable hose retrieval and structural durability are required. The reel features a dual axle Super Hub support system that reduces vibration and increases frame stability under load. The solid one-piece steel base uses a single pedestal, no-weld design that delivers maximum stability without adding excessive weight. A machined solid brass 90-degree full-flow NPT swivel simplifies seal maintenance and allows hose installation without removing the reel from its mount. This unit is suited for installation by HVAC technicians, plumbers, and general service contractors who require a dependable retractable reel in shop, vehicle, or field environments.

The MP-N-340 accommodates 3/8 inch ID hose up to 40 feet in length, making it appropriate for air, water, and similar fluid service lines in both residential and light commercial settings. The larger SH Series chassis is designed to handle longer hose lengths and larger hose diameters compared to standard compact reels. Typical installations include shop service bays, service vehicle mounts, wall-mounted utility stations, and ceiling drops. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations without requiring additional hardware modifications.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor that is fully removable for maintenance
• Dual axle Super Hub support system reduces vibration and reinforces structural integrity during operation
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven retractable hose reel for trade service applications requiring 3/8 inch ID hose connections with NPT swivel fittings.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or mechanical contractors. Before mounting, ensure the intended surface or vehicle rack is rated for the reel weight of 63 pounds fully loaded. Shut off and depressurize the supply line before connecting to the swivel inlet. Consult applicable OSHA and facility codes for overhead or vehicle-mounted reel installations to ensure proper fastener and load ratings.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 40 ft
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255717664

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: MP-N-340
