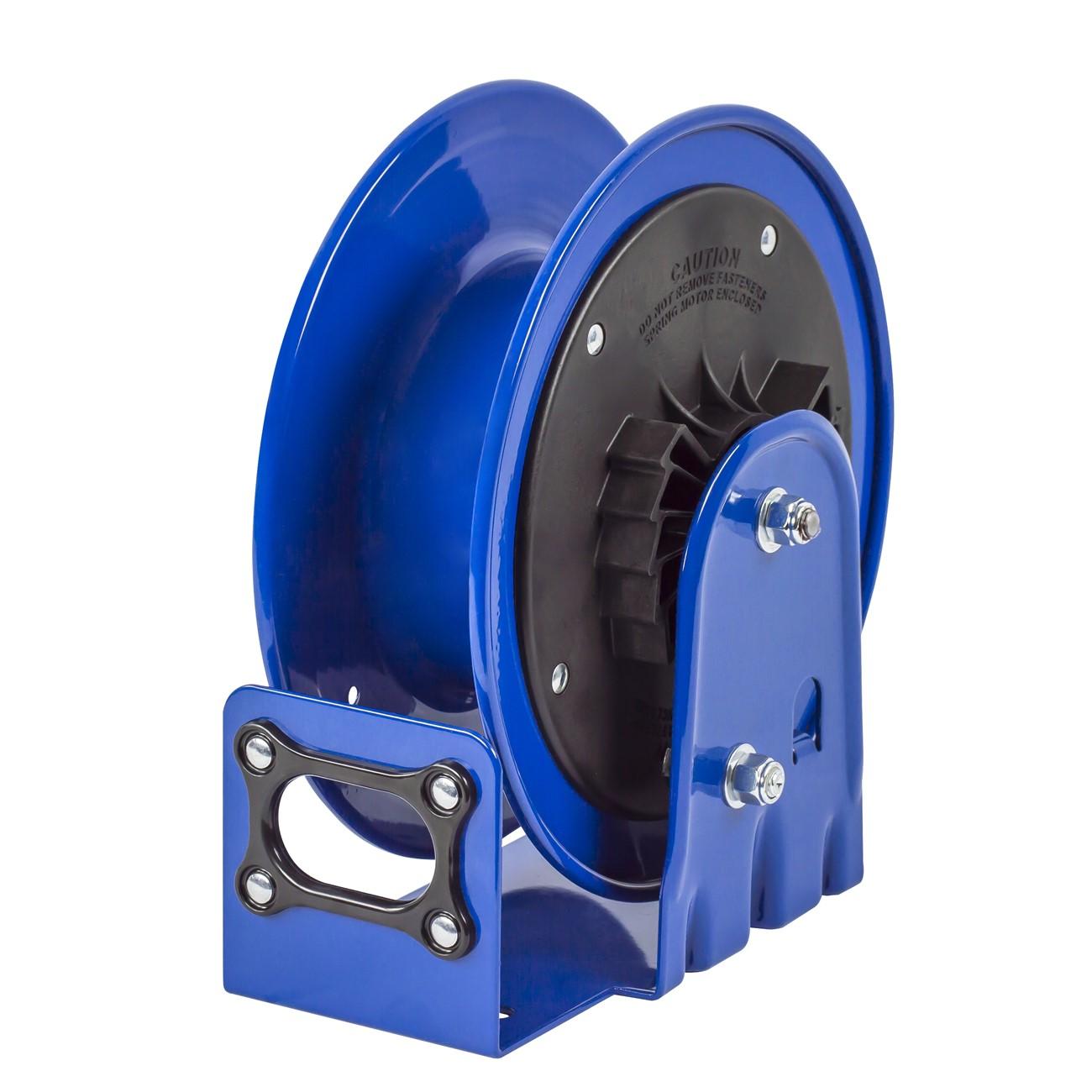

Coxreels LG-LPL-310 Hose Reel 3/8 Inch Id 10 Foot Steel

Product Description

The COXREELS LG-LPL-310 is a compact, spring-driven hose reel from the LG Little Giant series, built for commercial and industrial environments where space and weight are constraints. It accepts 3/8 inch ID hose up to 10 feet in length and ships ready to mount in tight quarters. The reel is constructed on a solid one-piece 12-gauge steel base with CNC robotically spun and ribbed steel discs. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Weighing 8 pounds, it offers a heavy-duty feature set in a lightweight footprint suited for service vehicles, workshops, and utility bays.

The LG-LPL-310 is well-suited for commercial and light industrial applications where a full-size reel is impractical. Typical install scenarios include service trucks, maintenance carts, compressed air stations, and low-clearance wall or ceiling mounts. It handles jobs traditionally requiring a reel nearly double its size, making it a practical choice for HVAC, plumbing, and general mechanical service use where 3/8 inch hose delivery is required. The spring-driven retraction keeps hose managed and off the floor between uses.

Key Features

• Solid brass machined 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• Non-corrosive high-strength composite ratchet hub with self-lubricating bronze bearings secures hose at desired extension length
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• One-piece 12-gauge steel base and support post for maximum stability in a compact, lightweight form factor
• Composite grommet with continuous-radius design prevents hose pinching or snagging during retraction
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings

Compatibility

Designed to accept 1/4 inch or 3/8 inch ID hose, making it compatible with standard NPT-terminated hose assemblies used in commercial and industrial service applications.

Installation Notes

Installation is performed by qualified mechanical, HVAC, or plumbing service technicians. Mount the reel to a structurally sound surface capable of supporting the combined weight of the reel and a fully loaded hose. Ensure the mounting orientation matches the swivel inlet direction before securing the base hardware. Depressurize and disconnect any air or fluid supply before servicing the swivel or bearings.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length: 10 feet
• Base Material: 12-gauge steel
• Swivel Material: Solid brass
• Drive Type: Spring driven
• Package Length: 14.5 inches
• Package Width: 6.75 inches
• Package Height: 16 inches
• Weight: 8 pounds
• UPC: 674255735835

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LPL-310
