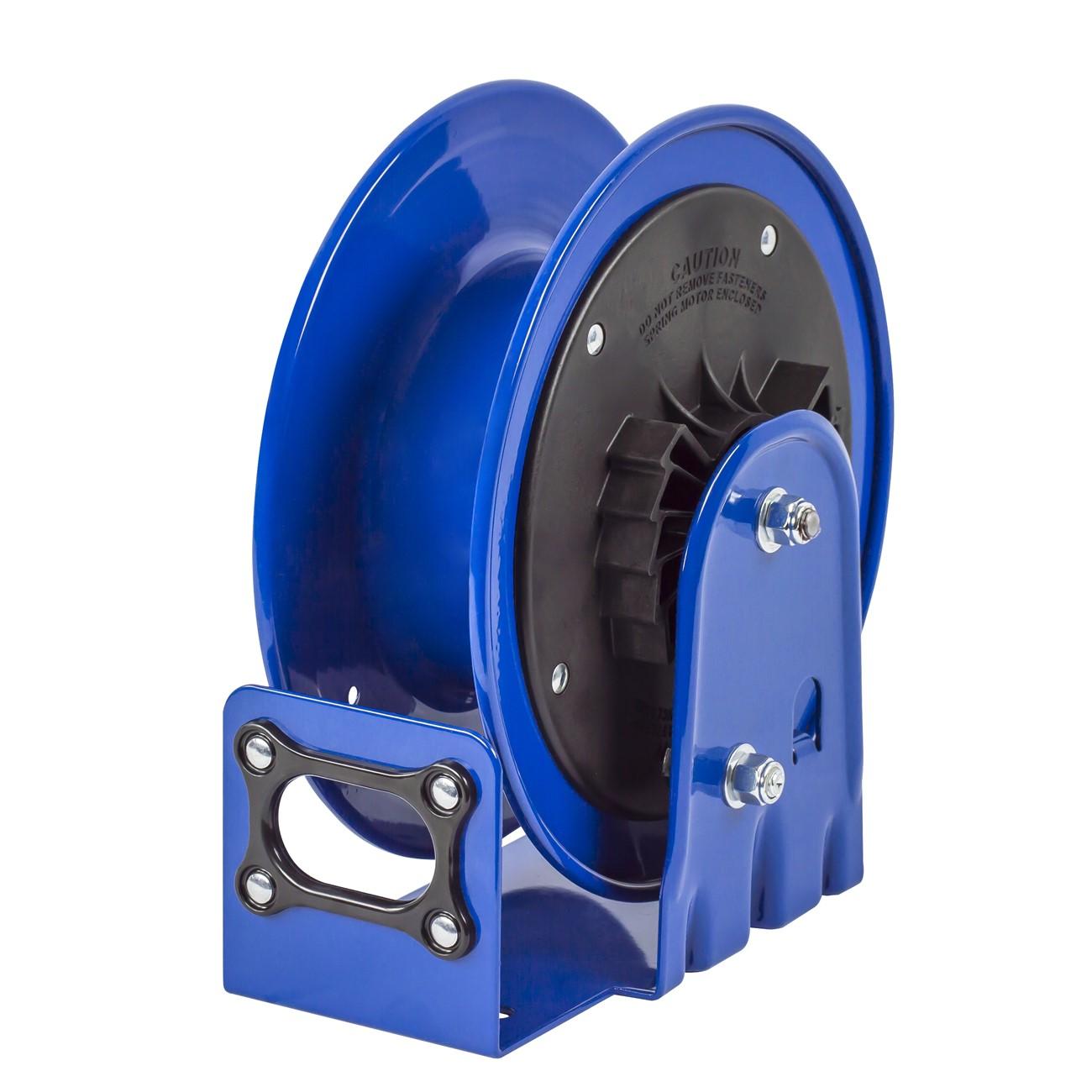

Coxreels LG-LPL-125 Hose Reel 1/4 in Id 25 Ft Steel

Product Description

The COXREELS LG-LPL-125 is a compact, spring-driven hose reel from the LG Little Giant series, designed for commercial and industrial environments where space and weight are limiting factors. Built on a one-piece 12-gauge steel base, it accepts 1/4 inch ID hose up to 25 feet in length with a 1/2 inch OD. A machined brass 90-degree full-flow NPT swivel enables seal maintenance and hose changes without removing the reel from its mount. CNC robotically spun and ribbed steel discs with rolled edges add structural strength while protecting the hose and the technician during operation.

The LG-LPL-125 is suited for compressed air, light fluid, and similar service lines in commercial shops, industrial facilities, and job sites where a full-size reel would be impractical. Its compact footprint and mounting flexibility allow installation in tight bays, utility rooms, and overhead positions. The spring-driven retraction keeps hose off the floor and ready for immediate use. Tradespeople including HVAC technicians, plumbers, and general maintenance staff commonly deploy this reel where routine service connections are needed without a large reel footprint.

Key Features

• One-piece 12-gauge steel base and support post for rigid, stable mounting
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose service without dismounting the reel
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures hose at desired extension
• CoxComposite grommet with continuous radius design prevents hose pinching during retraction
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed to accept 1/4 inch or 3/8 inch ID hose, making it a compact replacement or new-install option for light-duty spring-driven hose reels in commercial or industrial service applications.

Installation Notes

Installation is typically performed by a qualified technician or maintenance professional. Shut off and depressurize the supply line fully before connecting or disconnecting any hose or fitting. Mounting hardware should be rated for the combined weight of the reel and hose; consult local building and facility codes for overhead or wall-mount fastener requirements. Do not exceed the rated hose diameter or length for this reel model.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 25 feet
• Base Material: 12-gauge steel
• Swivel Material: Solid brass
• Drive Type: Spring driven
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 8 pounds
• UPC: 674255735811

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LPL-125
