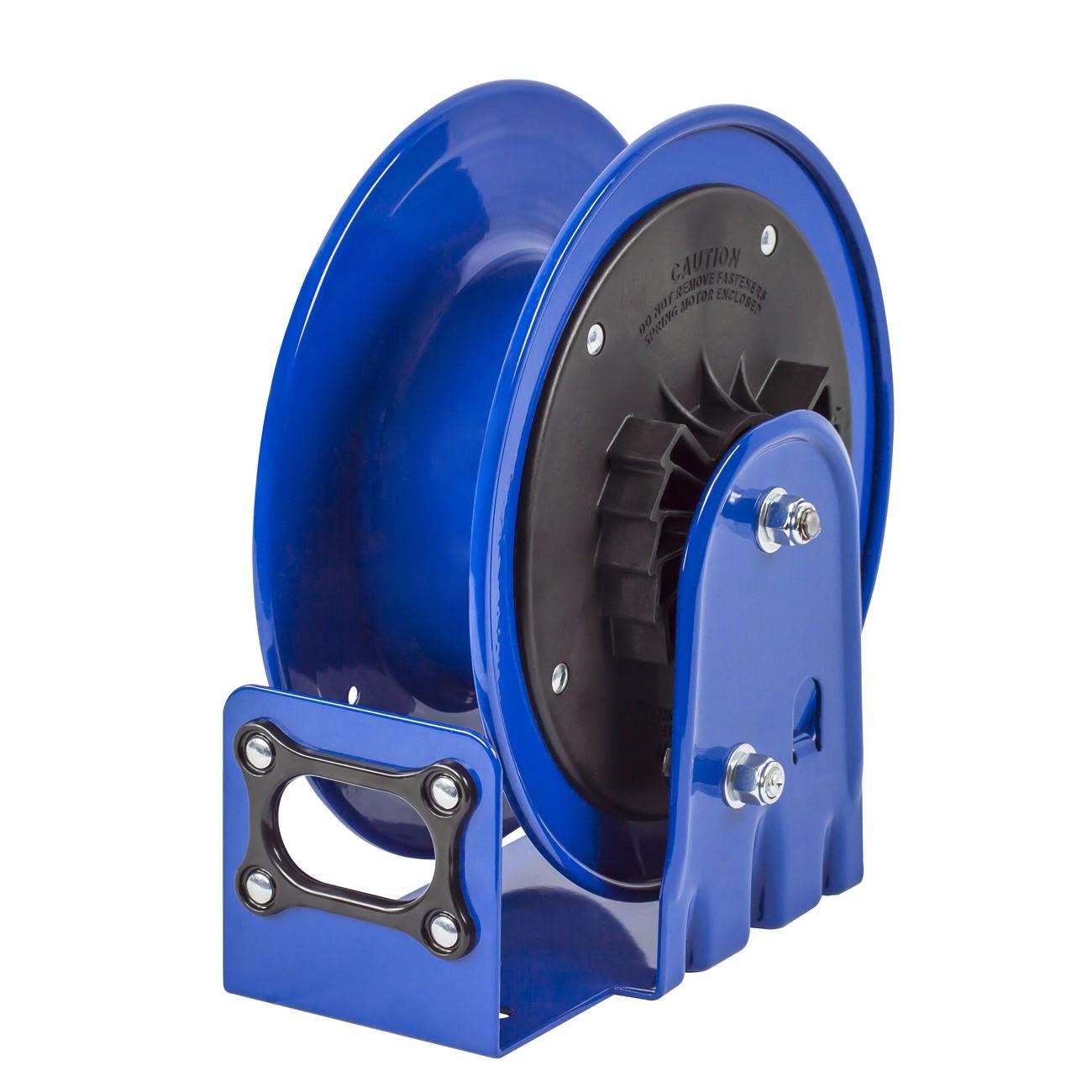

Coxreels LG-LPL-115 Hose Reel 1/4 in Id 15 Ft Steel

Product Description

The COXREELS LG-LPL-115 is a compact, spring-driven hose reel from the LG Little Giant series, built for commercial and industrial environments where space and weight are constraints. The reel accepts 1/4 inch ID hose up to 15 feet and features a machined brass 90-degree full-flow NPT swivel, CNC robotically spun and ribbed steel discs, and a CoxComposite ratchet hub with self-lubricating bronze bearings. The one-piece 12-gauge steel base provides a stable mount in tight installations. It weighs 8 pounds, making it one of the lighter heavy-duty reels in its class.

The LG-LPL-115 is suited for commercial and light industrial applications including lubrication, air, and fluid service lines in shops, service bays, and maintenance facilities. Its compact footprint allows mounting in locations where full-size reels cannot fit. The spring-driven retraction keeps hose off the floor and reduces trip hazards. Licensed service technicians and maintenance professionals typically install this reel in permanent or semi-permanent overhead and wall-mount configurations.

Key Features

• Spring-driven retraction automatically rewinds hose to reduce clutter and wear
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• CoxComposite ratchet hub with self-lubricating bronze bearings locks hose at desired extension length
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece 12-gauge steel base and support post for rigid, stable mounting
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style replacement and new-install hose reel for commercial and industrial fluid service applications requiring a 1/4 inch ID hose connection.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial service professional. Shut off and depressurize the fluid or air supply line completely before mounting or connecting the reel. Use appropriate thread sealant on all NPT fittings per standard plumbing practice. Secure the mounting base to a structural surface rated for the combined weight of the reel and the filled hose assembly.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 15 feet
• Drive Type: Spring driven
• Base Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Hub Material: CoxComposite with self-lubricating bronze bearings
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 8 pounds
• UPC: 674255735804

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LPL-115
