Coxreels LG-LP-320 Spring Driven Hose Reel 3/8 in 20 Ft

Product Description

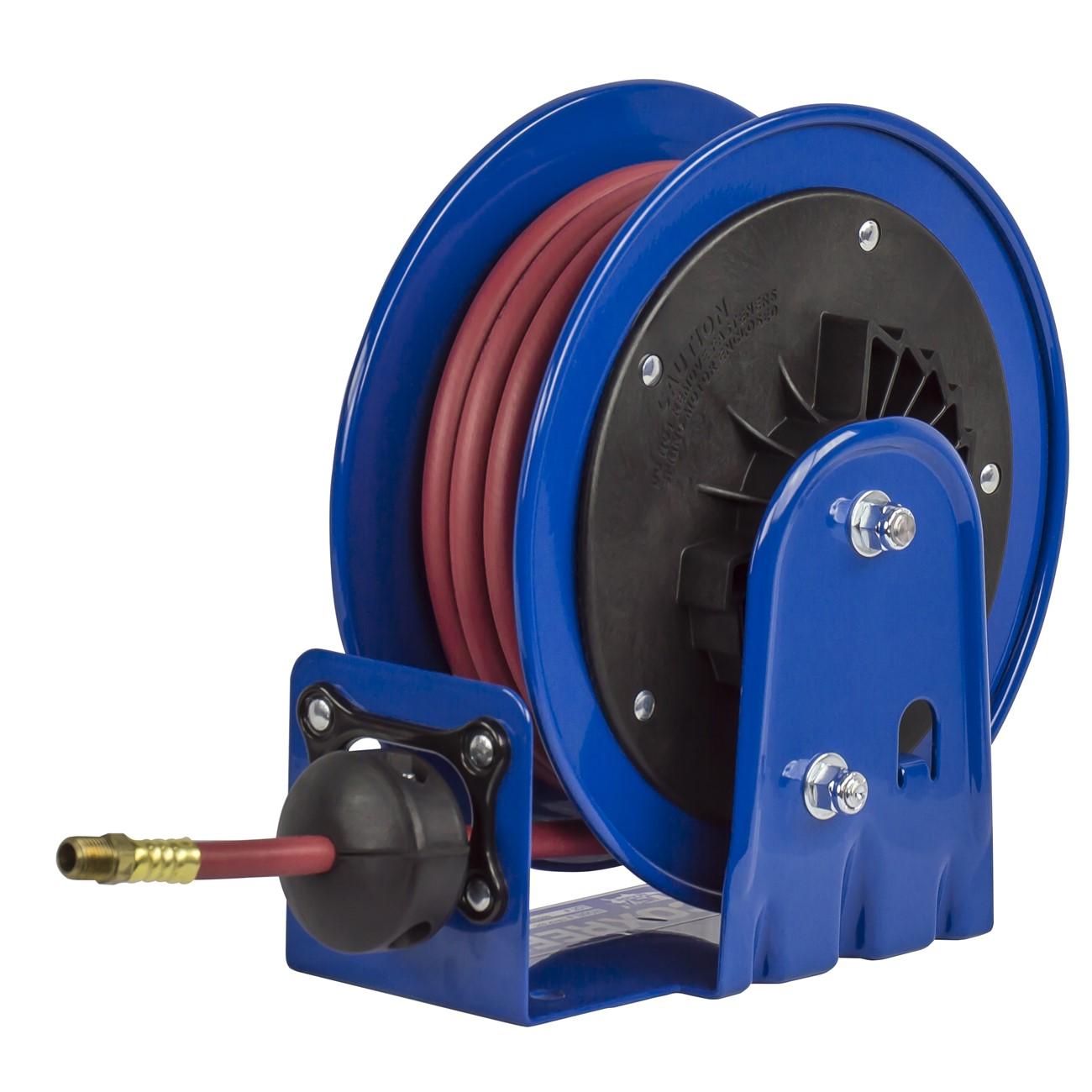

The COXREELS LG-LP-320 is a compact, spring-driven hose reel from the LG Series, designed for commercial and industrial applications where space and weight are primary constraints. Built on a solid one-piece 12-gauge steel base with CNC robotically spun and ribbed steel discs, it accepts 3/8-inch ID hose up to 20 feet in length and can also accommodate 1/4-inch ID hose. Weighing 11 pounds and measuring 14.5 inches long by 6.75 inches wide by 16 inches tall, this reel installs in tight spaces while handling the workload of reels nearly twice its size. Licensed HVAC, plumbing, and industrial service technicians rely on it for daily hose management in space-limited environments.

The LG-LP-320 suits commercial and light industrial service work where a reliable, retractable hose reel is needed but floor or wall space is at a premium. Its lightweight construction makes it well suited for service vans, utility rooms, mechanical spaces, and shop installations. The reel is factory finished with a chip-resistant, rust-inhibiting CPC powder coat for durability in demanding environments. It ships as a single unit and is intended for installation in fixed-mount configurations on walls, ceilings, or support structures.

Key Features

• Spring-driven retraction for automatic hose retrieval without manual rewinding
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings locks hose at desired extension length
• CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CoxComposite grommet with continuous radius design prevents hose pinching during retraction and extension
• Adjustable solid rubber hose stop and permanently lubricated precision bearings for long service life

Compatibility

Designed to accept 1/4-inch or 3/8-inch ID hose in commercial and industrial spring-driven reel applications requiring a compact, lightweight fixed-mount solution.

Installation Notes

Installation is typically performed by a qualified plumbing or mechanical service technician. Shut off the supply line and depressurize the hose before mounting or servicing the reel. Secure the reel to a structurally adequate wall, ceiling, or support post using appropriate fasteners rated for the mounting surface. Refer to local mechanical codes and the manufacturer instructions for proper swivel connection torque and hose routing practices.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 5/8 inches
• Hose Capacity: 20 feet
• Base Material: 12-gauge steel
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 11 pounds
• Drive Type: Spring driven
• UPC: 674255735798

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LP-320
