Coxreels LG-LP-320-HV Safety Hose Reel 3/8 Inch Id

Product Description

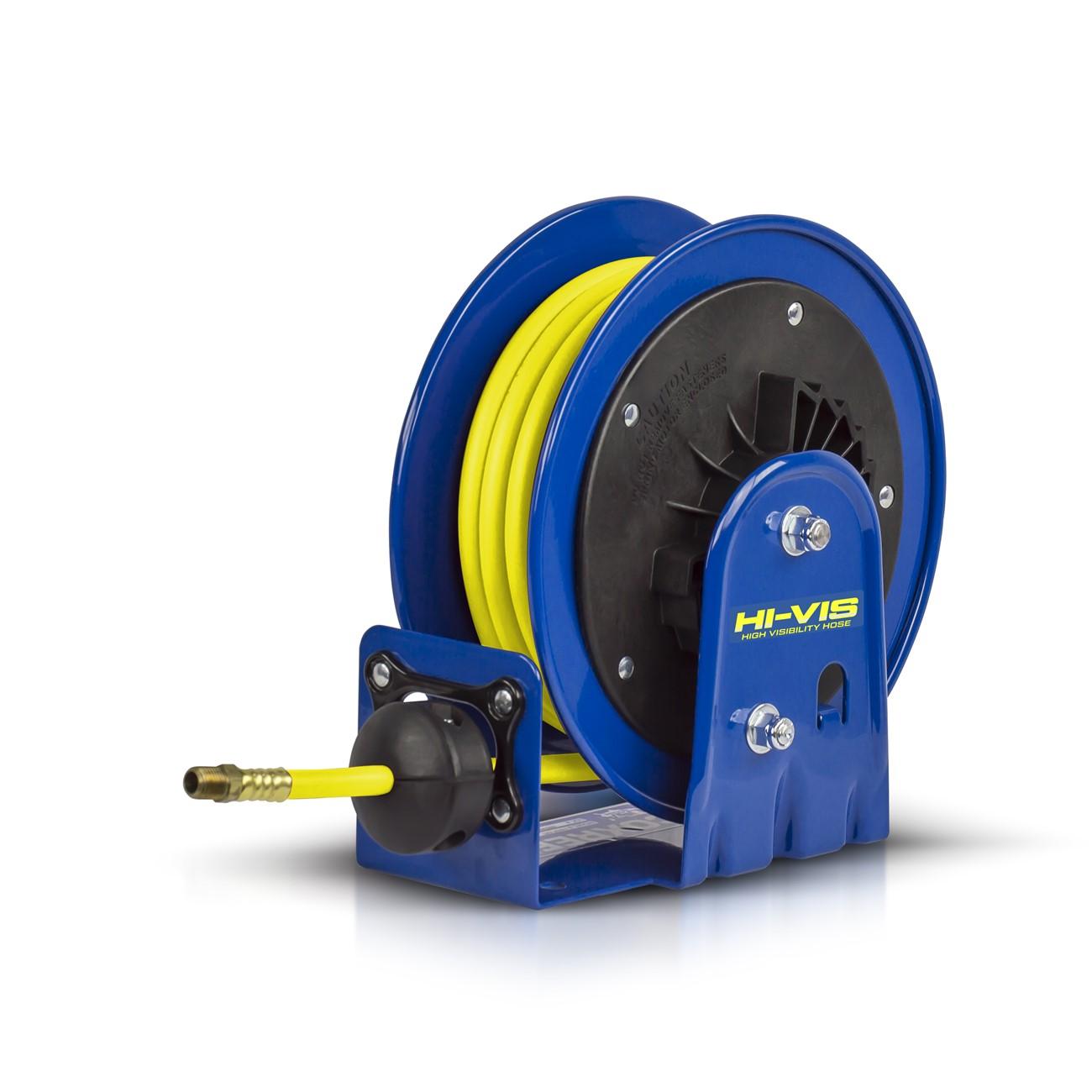

The COXREELS LG-LP-320-HV is a high-visibility safety hose reel designed for trade and industrial environments where hose awareness and controlled retraction are critical. The unit features a hybrid bright yellow hose with a white glossy stripe, making it easy to spot in busy work areas. Built on a solid one-piece 12-gauge steel base, this reel is a compact, spring-driven retractable unit suited for shops, service bays, and job sites. The hose ID measures 3/8 inch with a 5/8 inch OD. Licensed tradespeople and service technicians in HVAC, plumbing, and general service work are the typical installers and operators.

This reel is well suited for light-to-medium duty compressed air or similar fluid service in residential and commercial maintenance environments. The EZ-Coil controlled retraction system manages hose return speed, reducing snap-back hazards. The CNC robotically spun and ribbed steel discs protect the hose during coiling and uncoiling cycles. The reel ships as a single unit and is appropriate for wall, ceiling, or floor-mount configurations depending on the base bracket used.

Key Features

• Hybrid PVC and rubber high-visibility yellow hose with white stripe for improved site awareness and reduced trip hazard
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings locks hose at desired extension length
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece 12-gauge steel base and support post for stability; chip-resistant, rust-inhibiting CPC powder coat finish
• Enhanced kink resistance, reduced coil memory, and low-temperature flexibility compared to standard PVC hose

Compatibility

Designed as an OEM-style replacement or direct-fit safety hose reel for light-to-medium duty compressed air and fluid service applications requiring a 3/8 inch ID hose path.

Installation Notes

Installation is typically performed by a qualified technician or journeyman mechanic familiar with hose reel mounting requirements. Shut off all air or fluid supply and depressurize the line before connecting or servicing the reel. Mount the unit to a structurally sound surface capable of supporting the loaded reel weight; follow applicable facility safety codes for overhead or wall-mounted equipment. Verify NPT swivel thread compatibility with your supply fitting before final installation.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Base Material: 12-gauge steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Hub Material: CoxComposite with self-lubricating bronze bearings
• Drive Type: Spring-driven retractable
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 11 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255752498

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LP-320-HV
