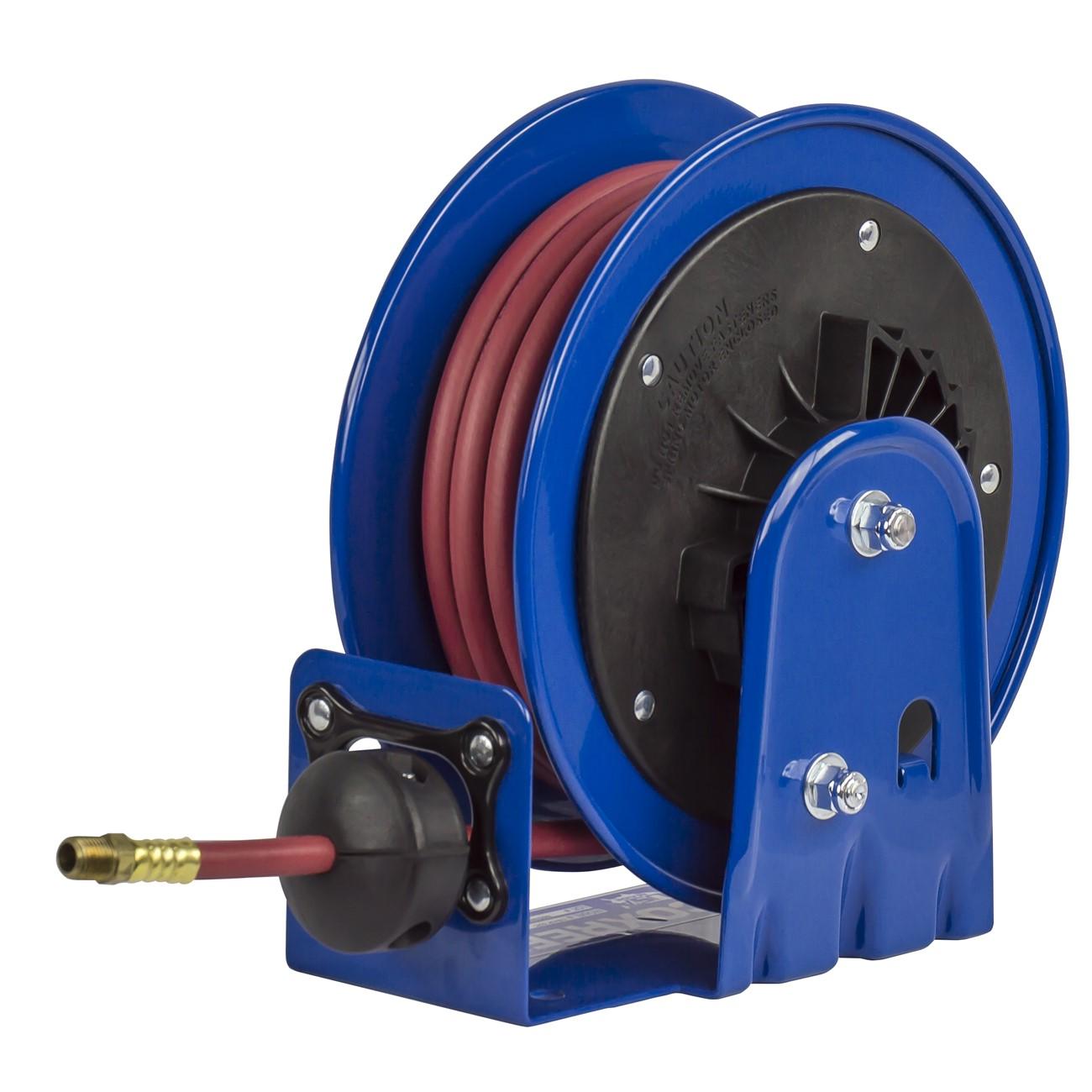

Coxreels LG-LP-125 Hose Reel 1/4 Inch Id 25 Ft Steel

Product Description

The COXREELS LG-LP-125 is a compact, spring-driven hose reel from the LG Series, designed for commercial and industrial environments where space and weight are limiting factors. The reel accepts a 1/4 inch ID, 1/2 inch OD hose up to 25 feet in length and is built around a solid one-piece 12-gauge steel base for stability. Despite its small footprint, the LG-LP-125 delivers performance comparable to reels of significantly larger size. It weighs 11 pounds and measures 14.5 inches long, 6.75 inches wide, and 16 inches tall. Licensed contractors and service technicians in light industrial, commercial maintenance, and facilities applications will find it well suited for tight mounting situations.

The LG-LP-125 is intended for commercial and industrial service applications where a compact, wall- or surface-mounted hose reel is needed in confined spaces. Its spring-driven retraction mechanism keeps hose organized and off the floor in service bays, mechanical rooms, and utility areas. The reel accepts either a 1/4 inch or 3/8 inch hose, offering flexibility across a range of fluid transfer or low-pressure air tasks. Its lightweight design allows mounting in locations where larger reels are not practical.

Key Features

• Spring-driven retraction keeps hose under constant tension and returns it to stored position automatically
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings locks hose at desired extension length
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve operator safety
• CoxComposite grommet with continuous radius design prevents hose pinching or catching during operation
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in demanding environments
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Accepts 1/4 inch or 3/8 inch hose. Designed as an OEM-style replacement or direct-fit unit for commercial and light industrial hose reel applications requiring a compact, spring-driven steel reel.

Installation Notes

Installation is typically performed by a qualified maintenance technician or contractor familiar with fluid handling or compressed air systems. Shut off supply pressure and depressurize the hose before mounting or connecting the reel. The steel base mounts to a wall, post, or surface using standard hardware appropriate for the substrate. Verify that hose ID, OD, and working pressure ratings are compatible with the intended service fluid before placing the reel into service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Base Material: 12-gauge steel
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 11 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Material: Solid brass
• UPC: 674255735767

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LP-125
